Dimethyl Terephthalate: Terephthalic Acid and Methanol Sprayed through a Hot Tube
Dimethyl terephthalate (DMT) is the methyl ester of terephthalic acid, a raw material for polyesters. Terephthalic acid does not melt, so Lotz and Gerlach (US 2,876,252, 1959) spray it as a suspension in methanol, with a little phosphoric acid, into a tube heated to 280–300 °C. The ester condenses as long needles that melt at 141 °C; the patent's yield was 97 %.

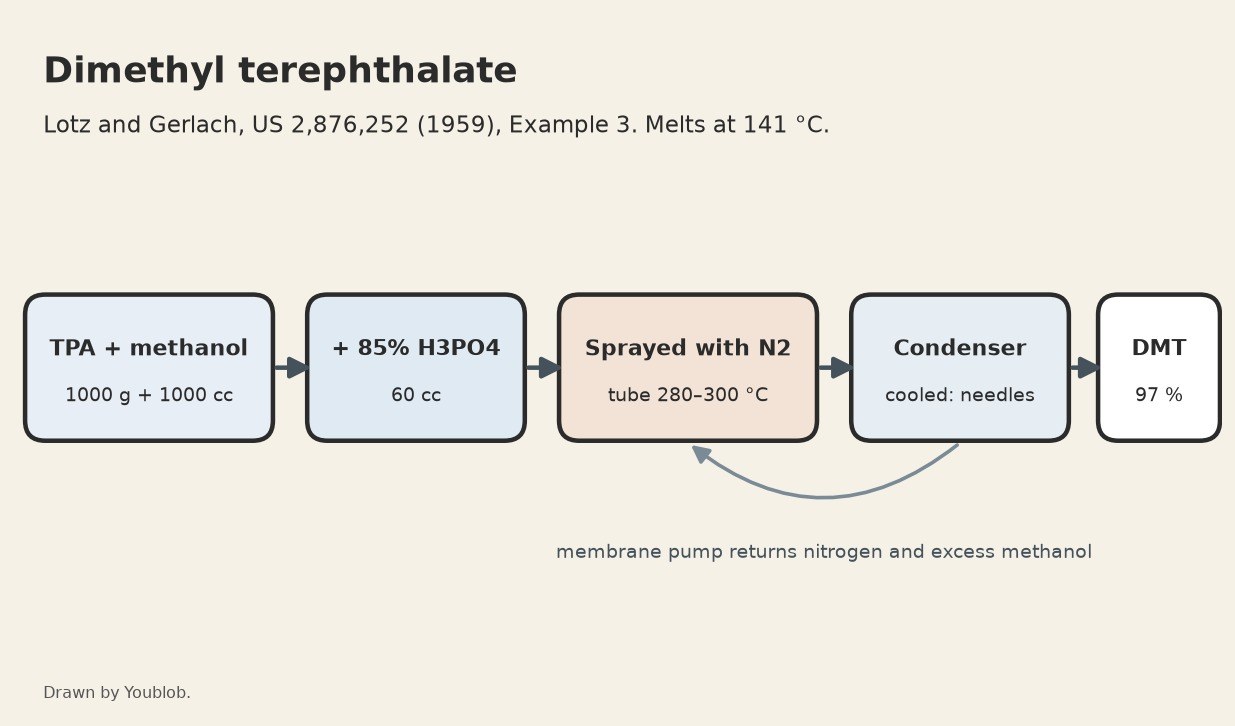

The picture: our diagram.
高级
Continuous
说明
1
1
Make the suspension
Make the suspension
Stir 1000 g of finely powdered terephthalic acid and 60 cc of 85 % phosphoric acid into 1000 cc of methanol.
此步骤所需材料：
对苯二甲酸1000 克
甲醇1000 毫升所需工具：
磷酸（85 %）
等臂天平
量筒
化学防溅护目镜
橡胶手套2
2
Heat the reaction tube
Heat the reaction tube

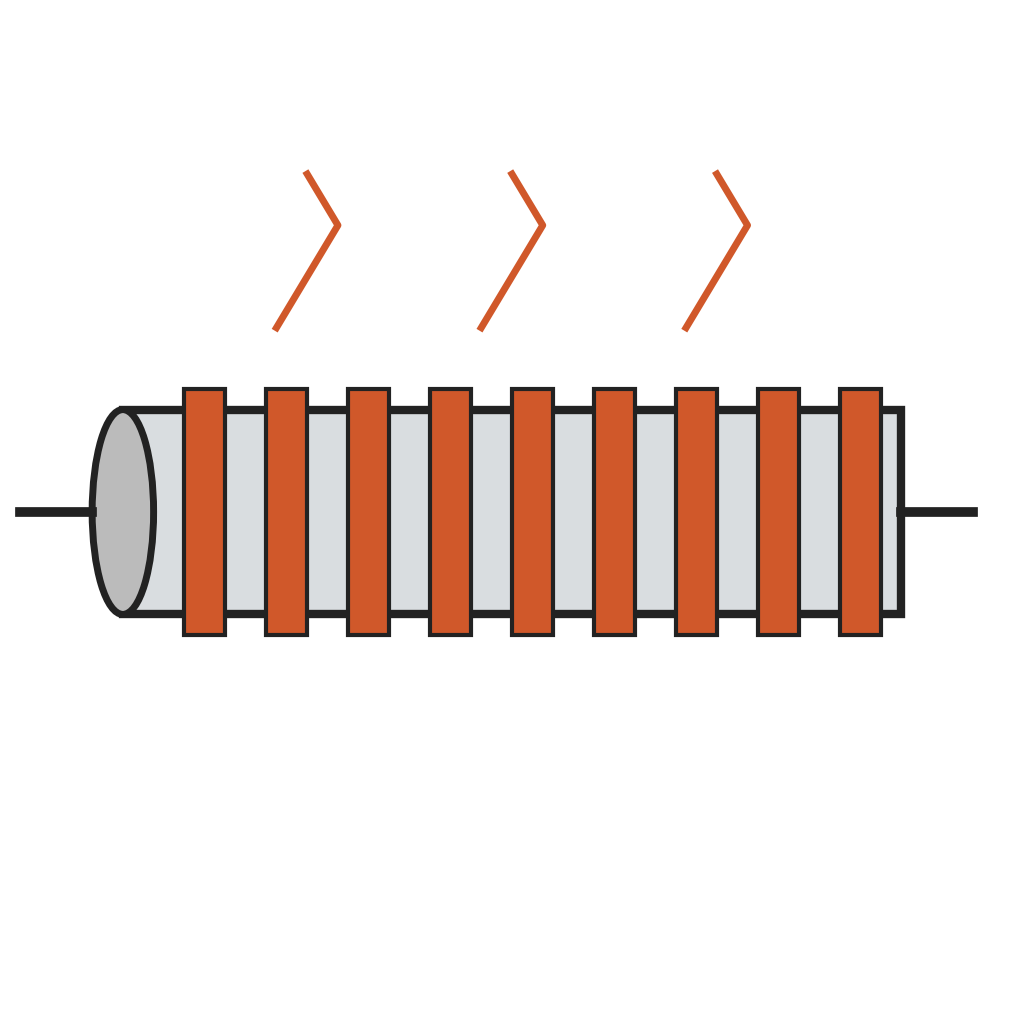

Heat a long cylindrical reaction tube electrically to 280–300 °C (the patent's was 300 cm long and 40 cm wide). A cooled condenser follows it.
所需工具：
加热反应管
带读数的热电偶
冷凝器盘管3
3
Spray it in with nitrogen
Spray it in with nitrogen

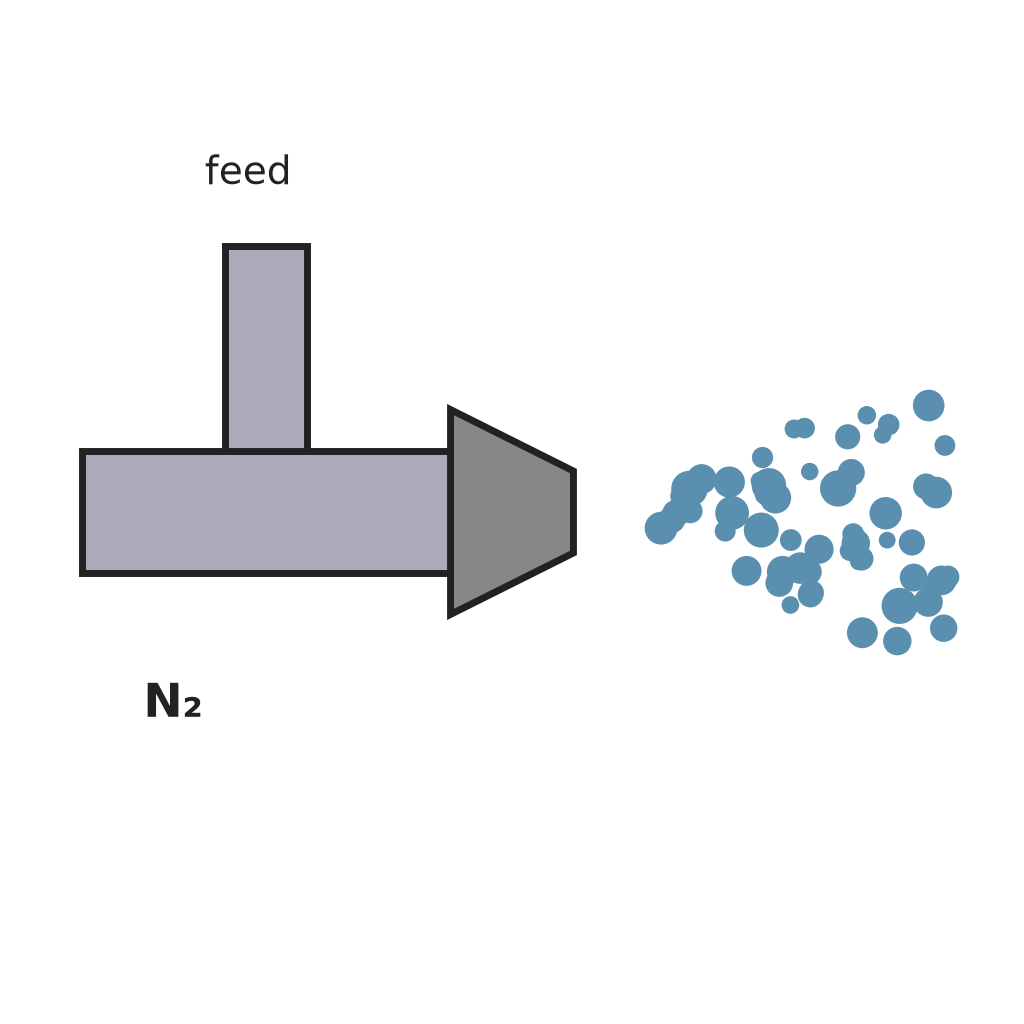

Spray the suspension with nitrogen through a nozzle into the tube, so the fine spray travels in a spiral along the tube wall. The acid and methanol react on the way.
所需工具：
雾化喷嘴
氮气瓶加热反应管
耐热手套4
4
Collect the needles
Collect the needles
The dimethyl terephthalate collects in the cooled condenser as long prismatic needles, melting point 141 °C. The patent's yield was 97 %.
所需工具：
冷凝器盘管橡胶手套5
5
Recycle nitrogen and methanol
Recycle nitrogen and methanol

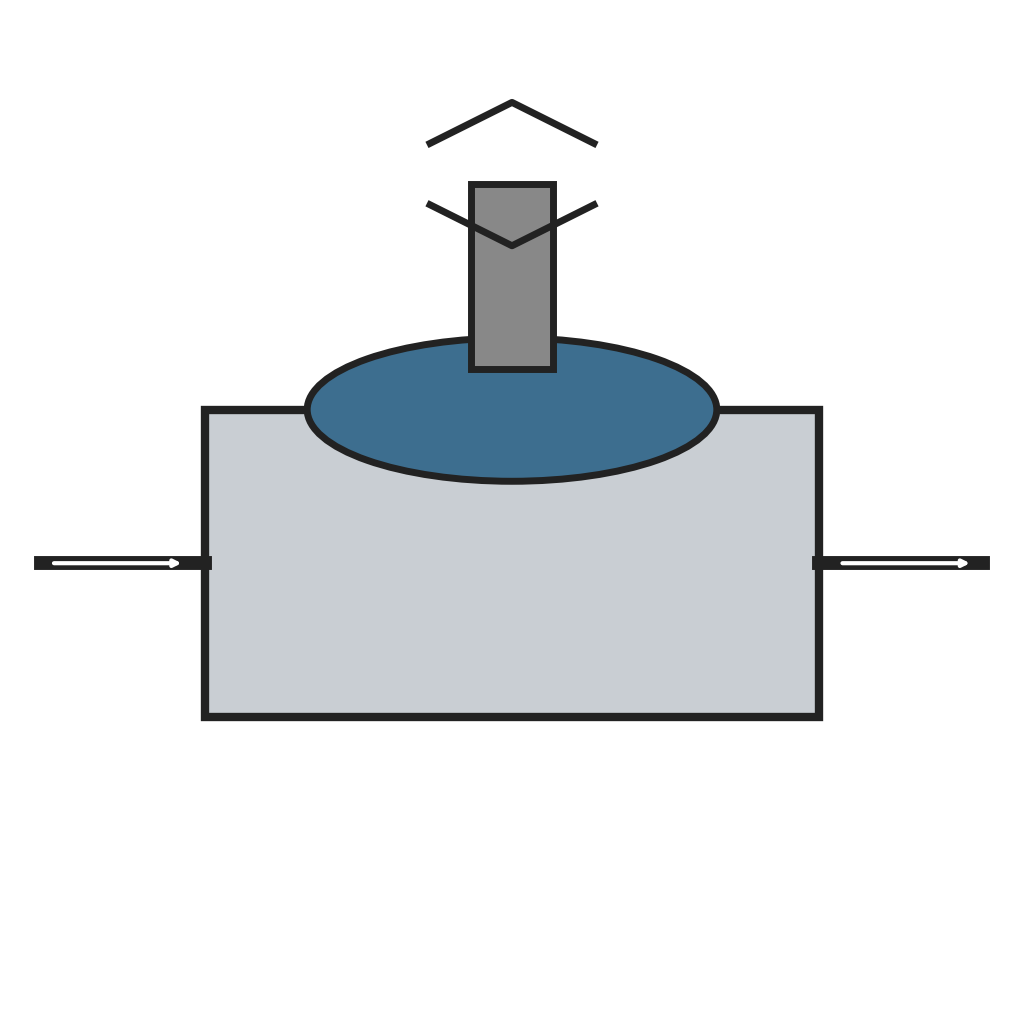

Draw the nitrogen and the excess methanol out with a membrane (diaphragm) pump and send them round again.
所需工具：
隔膜泵氮气瓶此蓝图制作
相关蓝图
这些蓝图共享知识——技术、材料或原理
CC0 公共领域
此蓝图以 CC0 协议发布。你可以自由复制、修改、分发和使用此作品，无需征得许可。
通过购买蓝图中的产品支持创客，他们将获得 创客佣金 （由供应商设定），或创建此蓝图的新版本并将其作为连接包含在你自己的蓝图中以分享收入。
