Hot-Air Popcorn Popper
Cretors' machine, already published, pops corn in hot oil in a heated kettle - the oil carries heat to the kernels and stays in the popcorn afterwards. The rung above it carries the heat in air instead: a blast up through a perforated floor tumbles the kernels, and the popped ones, being light and large, are blown straight out of the chamber before they can scorch.

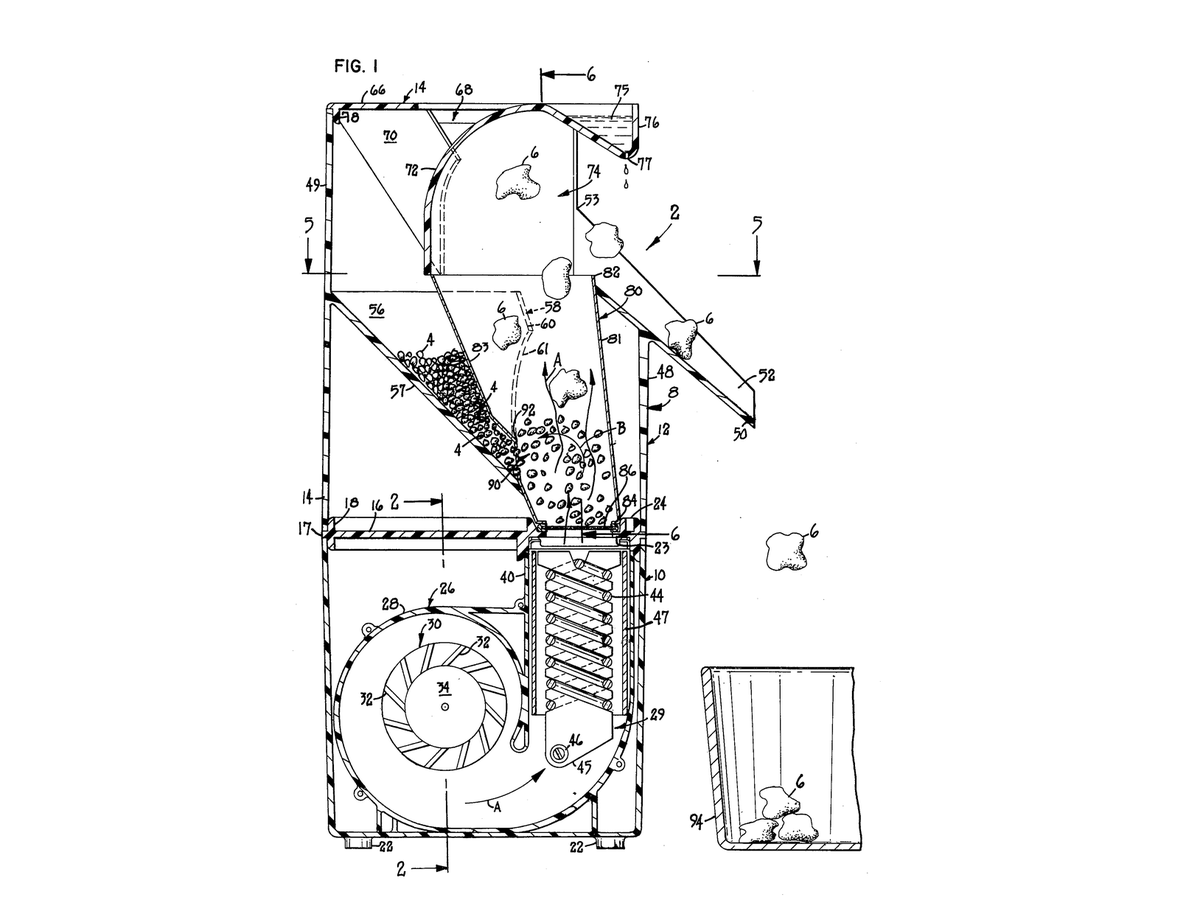

**US 4,152,974**, "Hot air corn popper", Lawrence J. Tienor, assigned to National Presto Industries, filed 16. June 1978, granted 8. May 1979: a popping vessel closed at the bottom by "a perforated grill, the perforations of the grill being smaller than the size of unpopped corn kernels", with hot air driven up through it.
**You build that chamber** from a steel can and mesh, blow it with a heat gun on a stand, and compare its yield with a pan of oil.
中级
2 hours
说明
1
1
Cut the chamber
Cut the chamber
Remove both ends of a 100 mm steel food can and deburr. Cut a disc of stainless mesh to fit inside and fix it 20 mm from one end: kernels must sit on it, air must pass, and no kernel must fall through.
此步骤所需材料：
马口铁罐1 个
食品级不锈钢网1 个所需工具：
铁皮剪
金属锉
透明安全眼镜2
2
Stand it over the gun
Stand it over the gun
Clamp the heat gun upright, nozzle up, on a non-flammable surface, and set the can above it so all the air goes through the mesh. Angle the top of the can over a bowl. Never hold either in your hands while it runs.
所需工具：
热风枪
电焊手套
大玻璃搅拌盆3
3
Find the air temperature
Find the air temperature
Run the gun on its lower setting and read the air at the mesh with the infrared thermometer aimed at a scrap of steel resting there. Aim for about 200 °C: hotter scorches, cooler will not pop.
所需工具：
红外测温仪4
4
Pop by air
Pop by air
Weigh 50 g of kernels into the chamber and run until popping slows to one every few seconds. Catch the popcorn in the bowl. Weigh what did not pop and measure the popcorn's volume in a jug.
此步骤所需材料：
爆米花玉米粒50 克所需工具：
数字厨房秤
量筒
秒表5
5
Pop in oil
Pop in oil
For comparison, pop another 50 g in a covered saucepan with 15 ml of oil over a medium hob. Weigh the unpopped kernels and measure the volume the same way.
此步骤所需材料：
食用油15 毫升爆米花玉米粒50 克所需工具：
高壁炖锅数字厨房秤6
6
Pressure and yield
Pressure and yield
正在加载 Jupyter 笔记本…
7
7
History & Context
History & Context

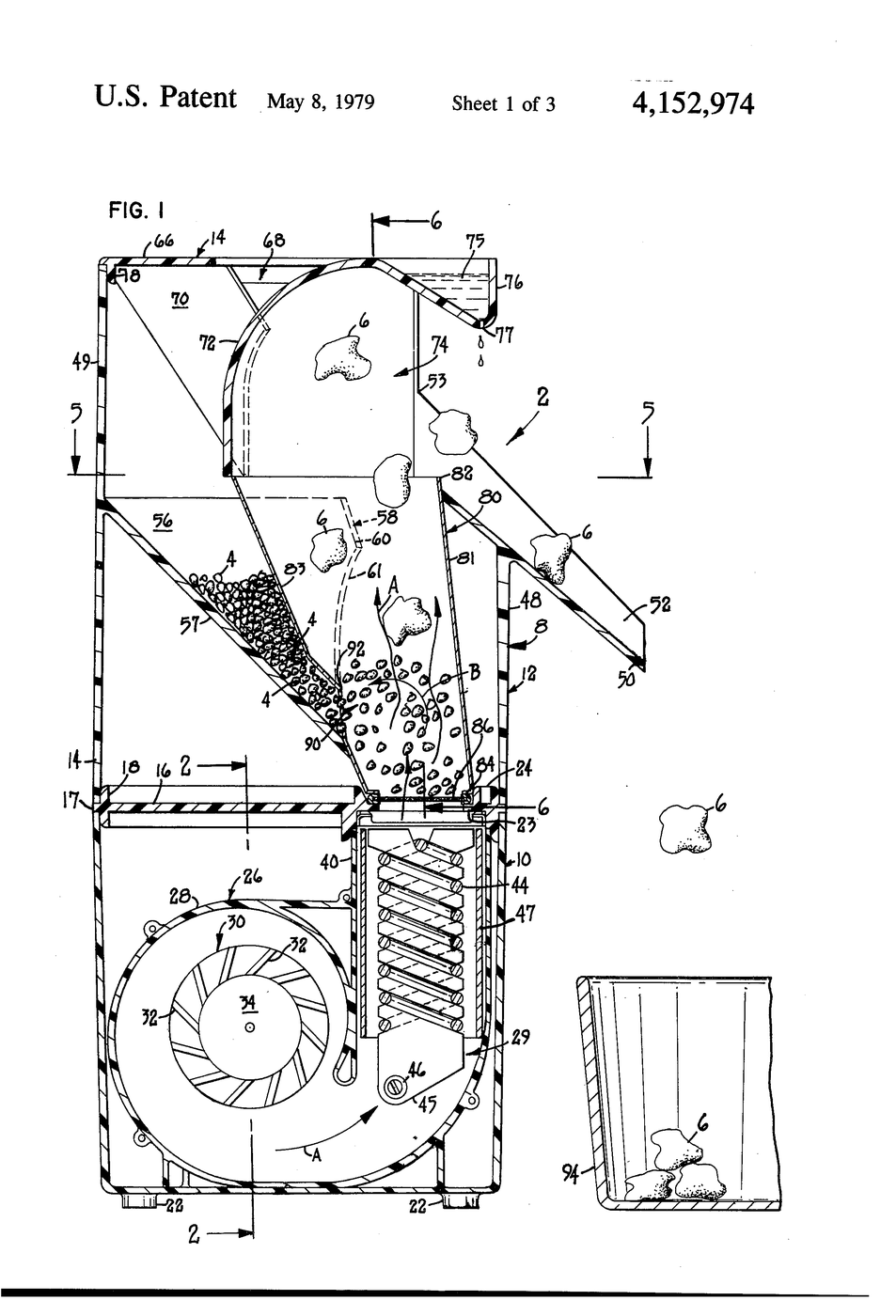

**What the patent specifies:** an upward hot-air flow through a perforated grill whose holes are smaller than a kernel, popping the corn and carrying the popped kernels out to a receptacle. **Modern build (derived):** a steel can, stainless mesh and a heat gun on a stand.
Hot-air poppers sold in millions in the 1970s and 80s as the oil-free way to make popcorn. Their limits: no oil means seasoning will not stick; the airstream throws unpopped kernels out too if it is too strong; and the corn must be fresh enough to hold its water.
CC0 公共领域
此蓝图以 CC0 协议发布。你可以自由复制、修改、分发和使用此作品，无需征得许可。
