n-Butanol and Acetone: Maize Mash Fermented by Weizmann's Bacteria
Weizmann's fermentation (US 1,315,585, 1919) turns maize starch into butyl alcohol and acetone. The bacteria live on the grain itself: you catch them by fermenting many small maize-mash cultures, keeping the ones that smell most strongly of butyl alcohol, and heating each subculture to 90–100 °C for a minute or two so that only their heat-proof spores survive. The finished culture ferments a sterilised mash of 100 parts maize meal in 1500 of water in about two days, and the mash is then distilled.

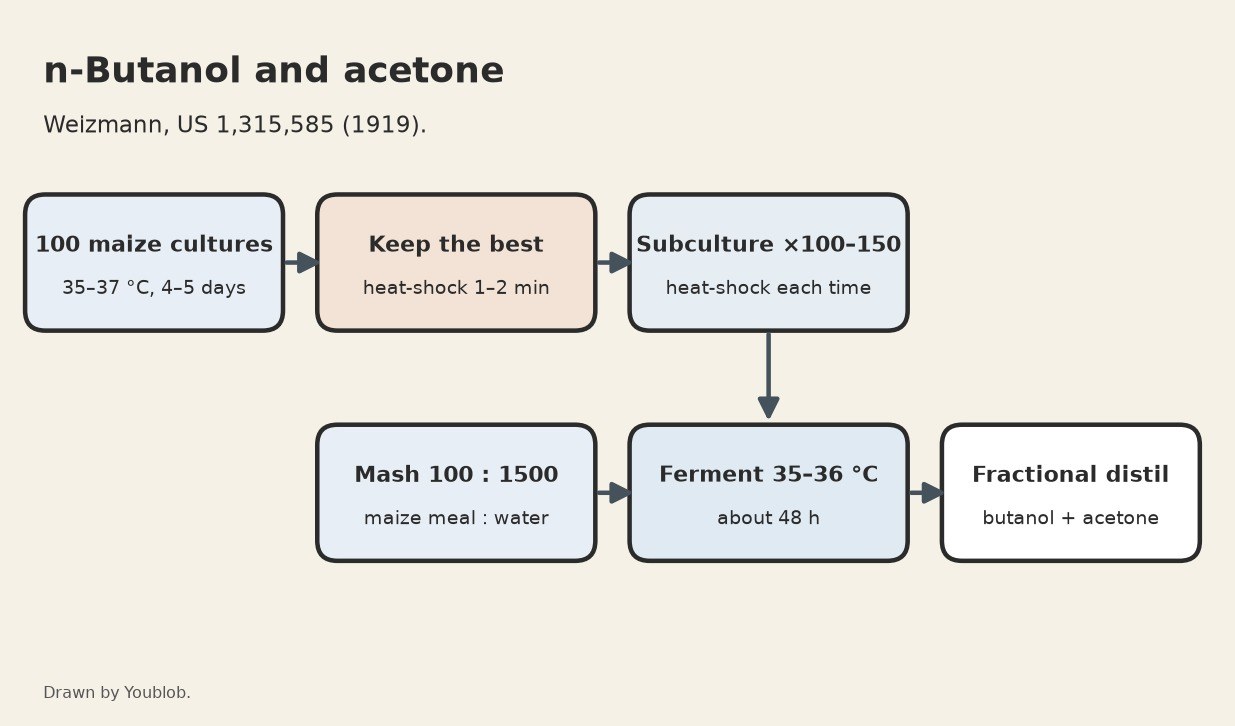

The picture: our diagram.
高级
About 2 days a batch, once the culture is raised
说明
1
1
Start many cultures
Start many cultures
Make about 100 tubes of hot (90–100 °C), dilute (about 2 %), sterile maize mash, add a little raw maize meal to each, and let them ferment at about 35–37 °C for four to five days.
所需工具：
玉米粉
水
试管
台式高压灭菌器
水浴
实验室温度计2
2
Pick the butanol smellers
Pick the butanol smellers
Choose the tubes that ferment most vigorously and smell most strongly of butyl alcohol. Heat them to 90–100 °C for one to two minutes: most bacteria die, but the wanted heat-resisting spores survive.
所需工具：
试管水浴实验室温度计
耐热手套3
3
Subculture 100 to 150 times
Subculture 100 to 150 times
Inoculate a fresh sterilised maize mash with the heated culture. When it has grown, heat it to 90–100 °C for one to two minutes and use it to inoculate the next mash. Repeat 100 to 150 times. Air need not be kept out.
所需工具：
玉米粉水试管台式高压灭菌器水浴实验室温度计4
4
Make and sterilise the mash
Make and sterilise the mash
Mix 100 parts maize meal with 1500 parts water. Sterilise it for three to four hours at 130–140 °C (2–3 atmospheres) and cool it.
此步骤所需材料：
玉米粉100 parts所需工具：
水
等臂天平台式高压灭菌器耐热手套5
5
Ferment two days
Ferment two days
Inoculate with the final culture and keep at about 35–36 °C. Fermentation starts in five to ten hours, runs strongly for about 36 hours and is complete in about 48. It works open to the air or in closed tanks.
所需工具：
发酵容器（玻璃大肚瓶）实验室温度计6
6
Distil off butanol and acetone
Distil off butanol and acetone
Distil the mash and separate the products by fractional distillation into acetone and butyl alcohol.
所需工具：
分馏蒸馏器实验室温度计此蓝图制作
