Ballpoint Pen

Bíró's ballpoint is filed as "Fountain pen". Patent titles describe the category the examiner filed it under, not what the thing became known as.

Thicken some ink and load a dip pen with it. Nothing flows. The nib's capillary channels only work with thin ink, and that constraint is what forces a new mechanism.

Compare a newspaper with fountain-pen writing on the same paper. The printing ink is dry immediately and does not feather — that observation is where the invention starts.

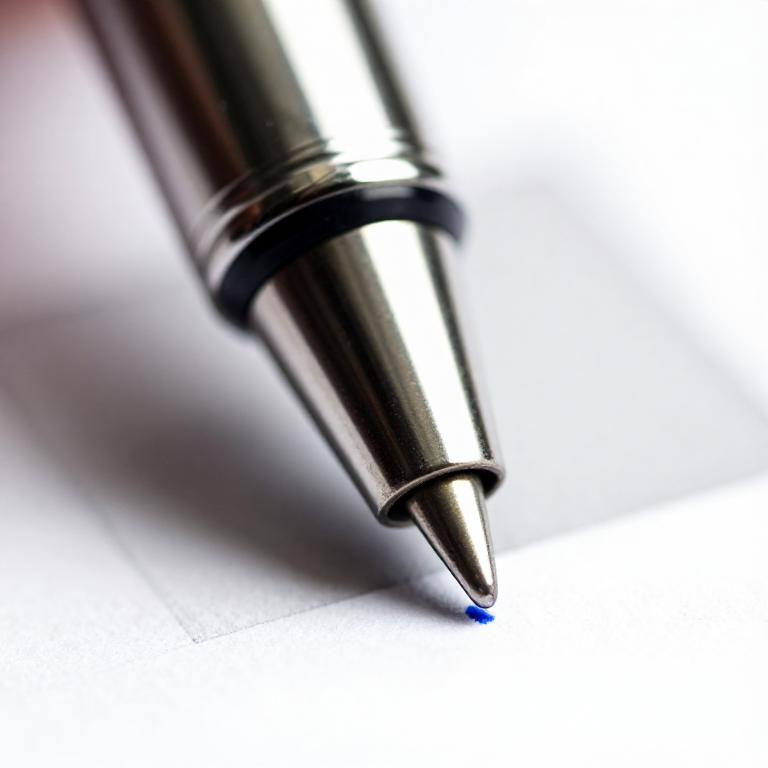

The ball is not a nib. It is a rotating seal, open only at the moving line of contact with the paper and closed against the socket everywhere else.

Use a small precision bearing ball. Sphericity is what makes the seal work at every rotation — an out-of-round ball leaks at some angles and skips at others.

Bore and lap a seat that lets the ball spin freely with almost no play. This clearance is the entire manufacturing difficulty of the product.

Roll the rim over slightly so the ball is captive but still rotates. Too much and it binds; too little and it falls out on first use.

Groove the seat so ink can reach the ball's inner surface. Without channels the ball seals perfectly against its own supply.

Use an oil-based paste — thousands of times more viscous than fountain-pen ink. It must not run under gravity, which is precisely why the pen does not leak.

Load a narrow tube and leave the back end vented. As ink is used, air must replace it — a sealed tube stops writing after a few centimetres.

Draw a line and inspect under magnification. A ball that drags rather than rolls leaves a scratched, skipping line and wears the socket oval.

Write inverted and after chilling. Viscous ink and a sealing ball mean orientation barely matters — the failure mode of every fountain pen simply is not present.

Blobs at the start of a stroke mean too much clearance; skipping means too little, or ink too thick for the temperature. Both are the same tolerance seen from opposite sides.

The ball needs friction from the surface to roll at all. On a glossy non-absorbent surface it slides and deposits almost nothing — the paper is part of the mechanism.

The patent. US 2,258,841, filed under the title "Fountain pen", granted 14 October 1941 to László József Bíró, a Hungarian newspaper editor who developed the pen with his brother György, a chemist who formulated the ink. Ballpoints were not new as an idea — John J. Loud patented one in 1888 (US 392,046) for marking leather — but Loud's was too coarse for paper and was never commercialised. What the Bírós added was the combination of a precise ball-and-socket with an ink formulated for it. They fled Nazi Europe and patented and manufactured in Argentina, which is why the pen is called a birome there.

The ball is a valve, not a nib. A fountain pen relies on capillary action pulling thin ink through channels, which is why it also leaks when temperature or pressure changes the balance. A ballpoint inverts the problem: the ink is a paste far too viscous to flow on its own, and it is transferred mechanically. The ball picks it up on the inner face, rotates, and lays it down on the paper. The pen only writes when the ball turns, and the ball only turns when it is dragged across a surface with grip — which is why a ballpoint fails on glossy plastic and why the paper is genuinely part of the mechanism.

The tolerance is the product. Ball and socket must be matched within a few micrometres. Too tight and the ball will not rotate, so the pen scratches and skips; too loose and paste escapes around it and the pen blobs. This is why early ballpoints were unreliable and expensive, and why the story is really one of precision manufacturing rather than of a clever idea. Marcel Bich bought rights and licences and spent years driving the cost down, launching the Bic Cristal in 1950 — a pen that now sells in the tens of billions and whose barrel is deliberately vented, and its cap deliberately holed, so a swallowed cap does not fully obstruct an airway.

Where it was wanted first. The Royal Air Force bought early ballpoints because fountain pens leak at altitude, where reduced cabin pressure pushes ink out of the reservoir — the ballpoint's viscous ink and sealed tip are indifferent to it. That is a good illustration of the general rule: a new mechanism usually finds its first market where the incumbent's specific failure mode hurts most, not where the average user is.
