Edison Electric Lamp

Use thick-walled glass, keep it shielded while under vacuum, and wear eye protection. Treat the electrical side as live at all times.

The claim is a carbon filament of high resistance in an exhausted glass globe. The resistance is not incidental — it is the part that made electric light a business.

Pass current through a thin carbon strand in the open. It glows briefly and is gone. That is oxidation, not melting, and the vacuum is the fix.

Seal a fibre in a closed crucible with no air and heat it hard. The organic material chars to nearly pure carbon while keeping its shape.

Any oxygen in the crucible burns the fibre instead of charring it. Pack it in sand or seal the lid with clay.

Record it before assembly. Aim for a filament that is long and thin — resistance rises with length and falls with cross-section.

Compute I = V/R at your supply voltage. A 100-ohm filament at 100 V draws 1 A; a 1-ohm filament draws 100 A and needs cable as thick as your thumb.

Support it at both ends on stiff wires that will pass through the glass. Carbon is brittle — every handling step risks snapping it.

Fuse the glass around the wires. This joint is the hardest part of the whole build — glass and metal expand at different rates and the seal cracks as it cools.

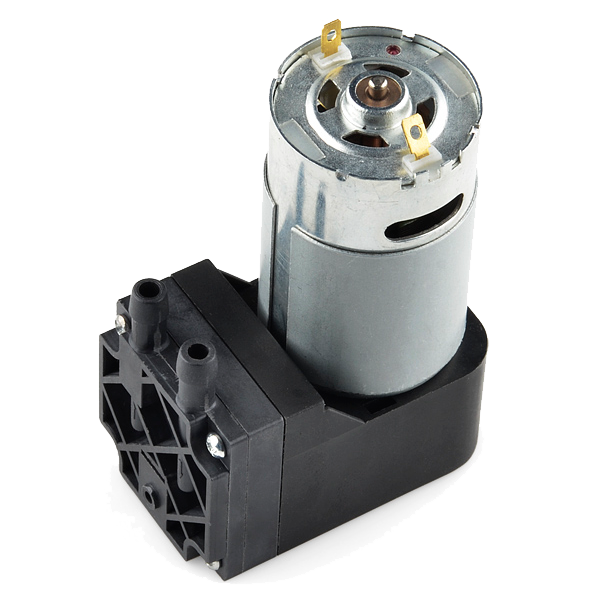

Pump it down with a vacuum pump. Edison used a Sprengel mercury pump; a modern pump reaches the same pressure without handling mercury at all.

Melt the neck closed with the pump running. Let air back in first and the filament oxidises the moment it heats.

Raise supply gradually and watch the filament go dull red, then orange, then white. Straight to full voltage snaps a cold brittle filament.

Carbon's resistance FALLS as it heats — the opposite of a metal filament. Record both figures; the difference explains the inrush behaviour.

Note the lifetime and look for blackening inside the bulb. That deposit is filament material that evaporated and condensed — the real limit on carbon lamps.

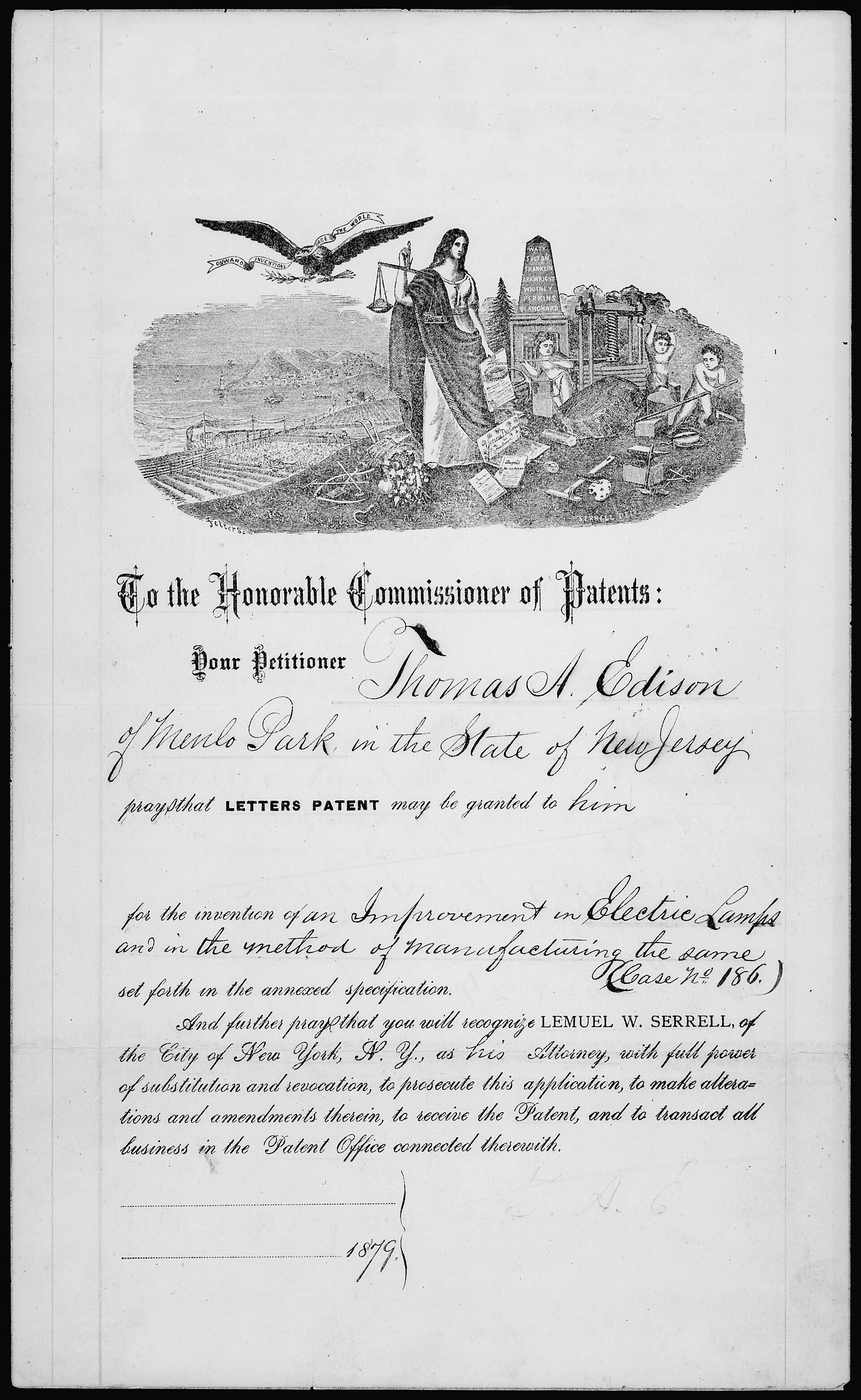

The patent. US 223,898, "Electric Lamp", granted 27 January 1880 to Thomas Alva Edison, describing a carbon filament of high resistance in an evacuated glass globe. Edison did not invent the incandescent lamp; incandescent lighting had been demonstrated for decades, and Joseph Swan in England developed a working carbon lamp in parallel and had genuinely strong priority claims. Swan and Edison eventually merged their British interests as Ediswan rather than litigate to exhaustion. Presenting Edison as the sole inventor misstates a well-documented dispute.

Why high resistance mattered more than the filament. Power delivered is I²R in the conductors, and copper cost scales with cross-section. A low-resistance lamp draws heavy current, so feeding a street of them needs enormous copper mains. Making each lamp high-resistance and low-current lets many run in parallel from thin, affordable wiring. Edison's team worked the economics backwards from the price of copper, which is why the patent claim specifies high resistance rather than simply a carbon filament. The lamp is the visible part of a system that also required dynamos, meters, fuses and distribution mains — and Edison patented those too.

Two failure modes, not one. In air a hot filament oxidises and is consumed in seconds. In vacuum it cannot burn, but it still slowly evaporates, and the vapour condenses on the cooler glass — that is the blackening you see in an old bulb, and it thins the filament until it breaks. Later lamps replaced the vacuum with an inert argon-nitrogen fill, which suppresses evaporation by raising the pressure over the filament, and switched from carbon to tungsten, which has a far higher melting point.

An honest note on carbon's behaviour. Carbon has a NEGATIVE temperature coefficient: hotter means less resistance, so a carbon lamp draws more current as it warms and can run away if the supply allows. Metal filaments behave the opposite way and are self-limiting, which is one of several reasons tungsten won. The Sprengel mercury pump that made Edison's vacuum possible is also worth naming — it was borrowed from laboratory chemistry, and better vacuum, not a better filament, is what turned a demonstration into a product.
