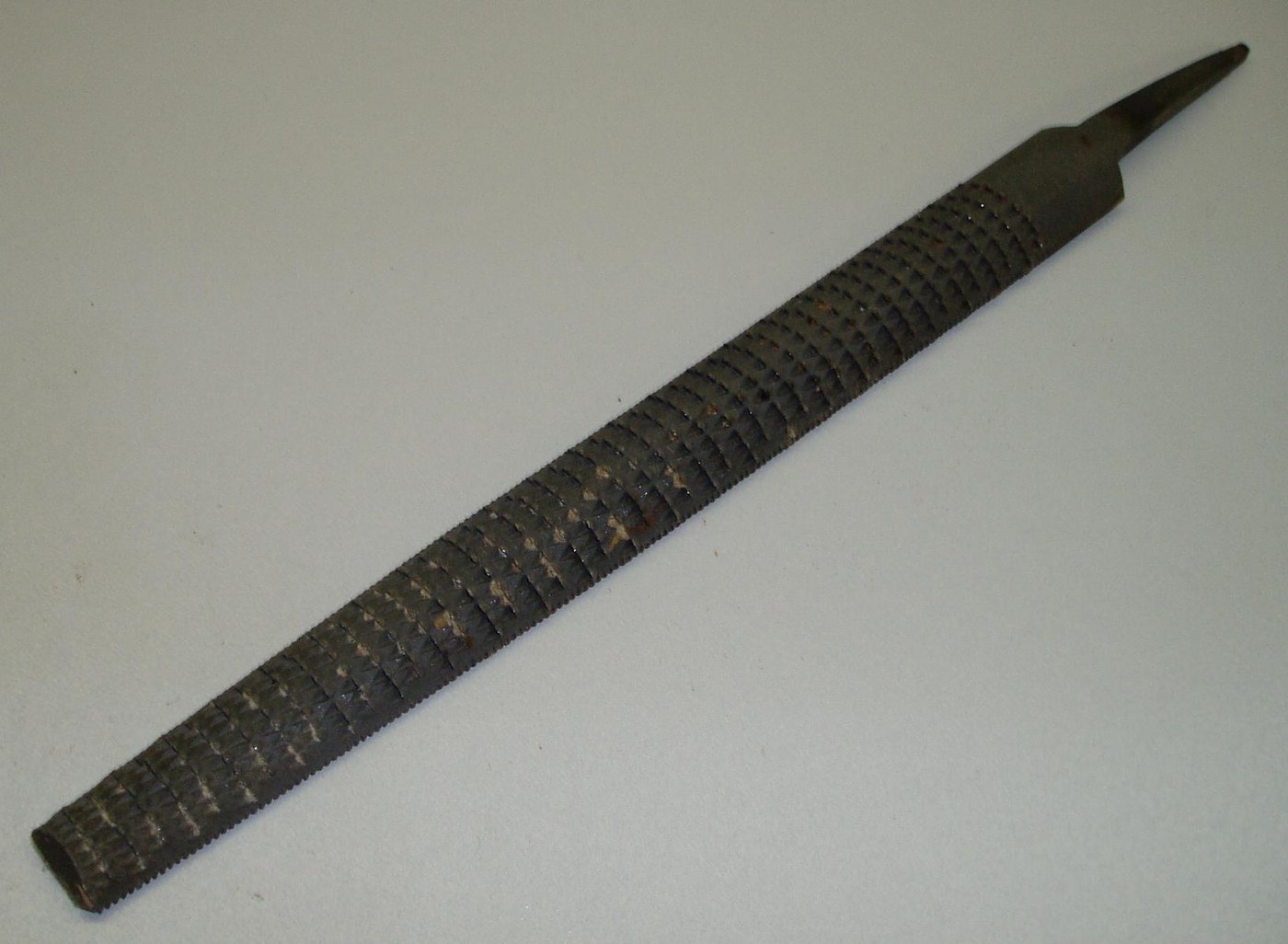

Rasps: Teeth Raised One at a Time with a Pointed Punch

A rasp is a coarse file whose teeth stand separately instead of in continuous rows. Each tooth is raised by driving a pointed punch into the face of the blank at uniform distances. Because the teeth stand apart, a rasp clogs less than a cut file on soft material such as wood or a horse's hoof. The blank is forged, annealed and ground like a file blank, and the finished rasp is hardened like a file: coated against scale, brought to a dull red heat and plunged into water, with the tang tempered so it will not snap. Machine-made rasps have uniformly stamped teeth, which line up row behind row and leave deeper marks; slightly uneven hand-cut teeth avoid this.
उन्नत
2 days (annealing overnight)

निर्देश

1

Forge the blank

Forge the steel to a tapered bar, flat, round or half-round, with a narrow pointed tang at one end.

इस चरण के लिए सामग्री:

उच्च कार्बन इस्पात का बिलेटउच्च कार्बन इस्पात का बिलेट0.5 किलो

आवश्यक उपकरण:

लोहार की भट्ठीलोहार की भट्ठी
निहाईनिहाई
गढ़ाई का हथौड़ागढ़ाई का हथौड़ा
आहनशाला का चिमटाआहनशाला का चिमटा
2

Anneal and grind

Anneal the blank soft so the teeth can be raised, then grind the faces to a smooth, clear surface.

आवश्यक उपकरण:

लोहार की भट्ठीलोहार की भट्ठी
घुमाव वाला सान का पत्थरघुमाव वाला सान का पत्थर
3

Punch the teeth

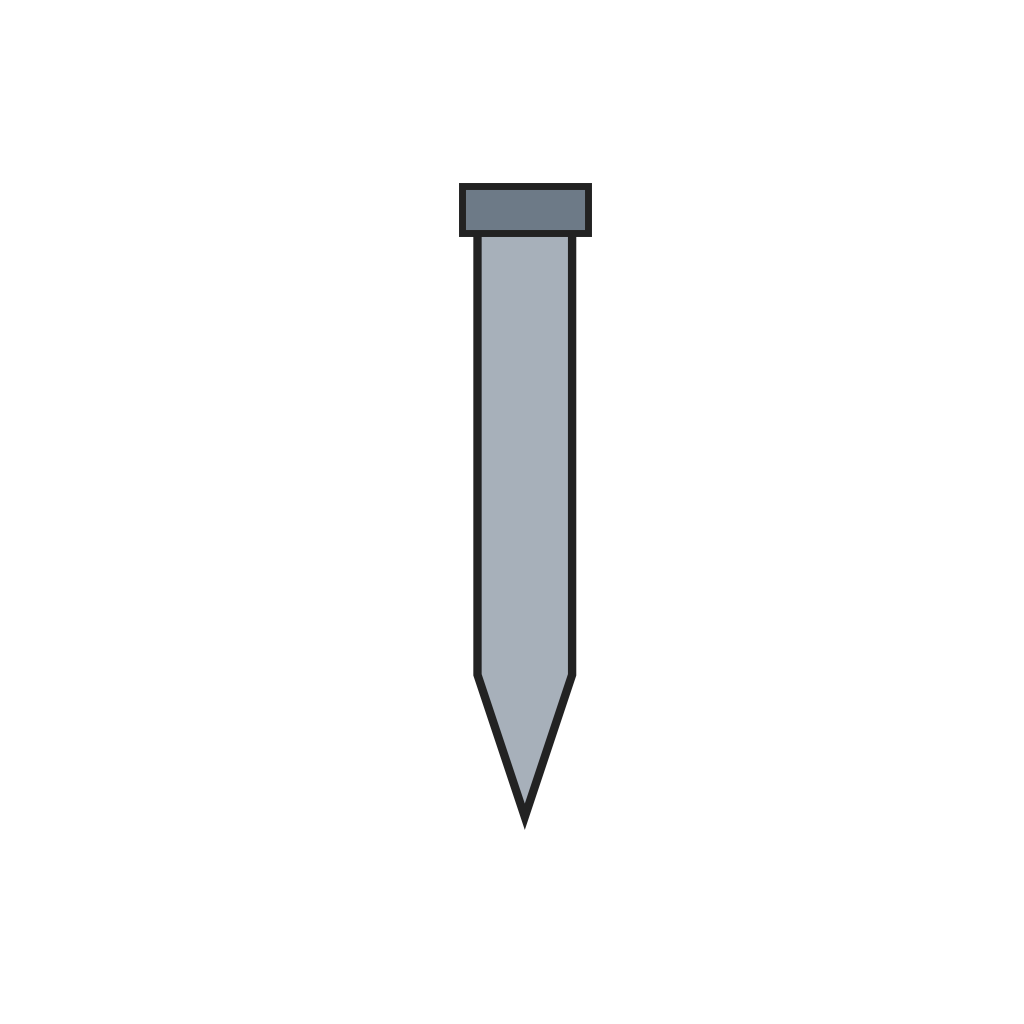

Drive the pointed punch into the face with the hammer at uniform distances, raising one separate tooth at each blow. Turn the rasp over on a soft metal plate to work the other face without crushing the finished teeth.

आवश्यक उपकरण:

रेती पंचरेती पंच
गढ़ाई का हथौड़ागढ़ाई का हथौड़ा
निहाईनिहाई
प्यूटर की प्लेटप्यूटर की प्लेट
4

Harden

Coat the toothed surface thickly with a salt composition against scaling, raise the rasp to a dull red heat in a clear coke fire and plunge it upright into water. If it bends, straighten it across a fulcrum before it is fully cold.

इस चरण के लिए सामग्री:

नमकनमक1 किलो
धातुकर्म कोकधातुकर्म कोक1 as required

आवश्यक उपकरण:

लोहार की भट्ठीलोहार की भट्ठी
बाल्टीबाल्टी
आहनशाला का चिमटाआहनशाला का चिमटा
5

Temper the tang and clean

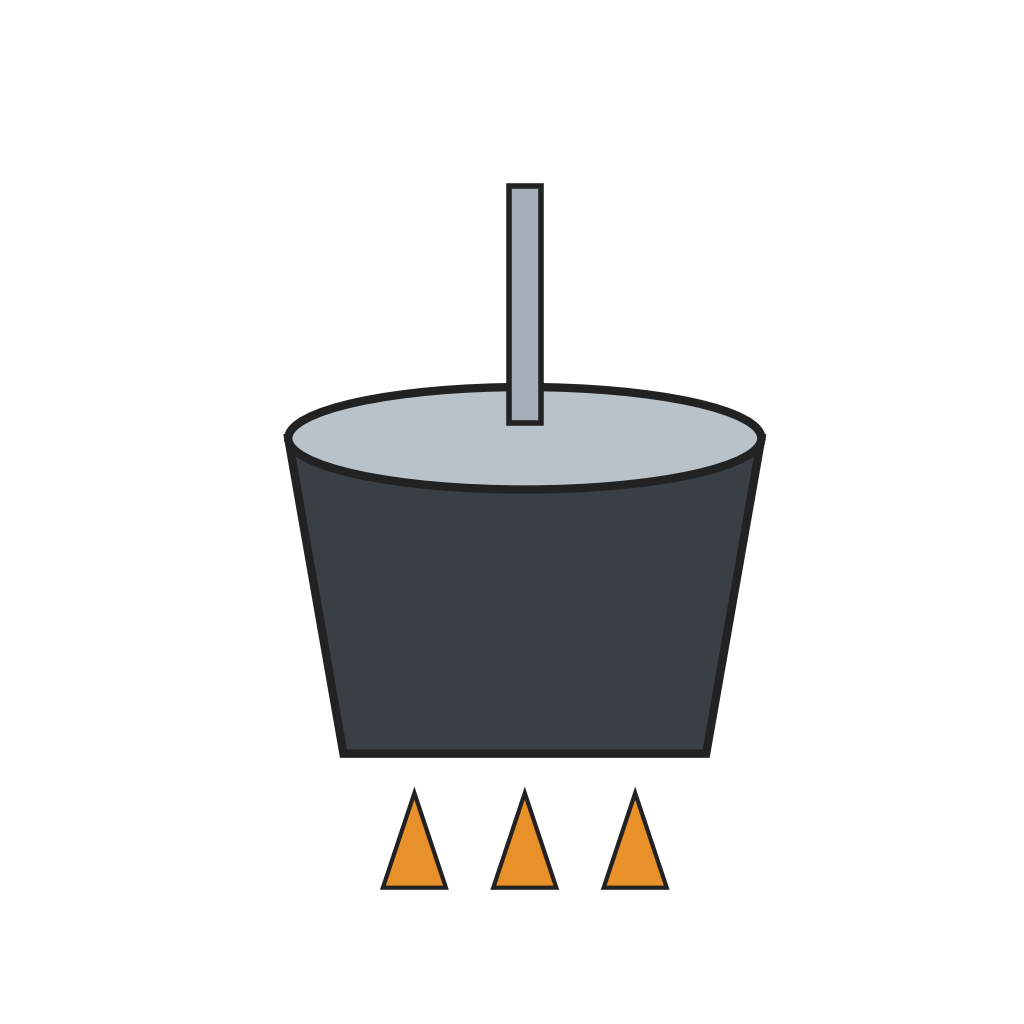

Temper the tang by dipping it in molten lead so it will not snap. Scour and wash off every trace of salt, then brush the rasp with oil.

आवश्यक उपकरण:

पिघले सीसे का कुंडपिघले सीसे का कुंड
आहनशाला का चिमटाआहनशाला का चिमटा
