Kingsbury Thrust Bearing

Kingsbury's "thrust-bearing" carries an axial push on tilting pads that build an oil film. The key word the whole build proves is wedge.

Press a spinning disc against a dry flat plate and feel the drag and heat. This is the plain thrust collar that burns out. Baseline.

Slide a flat card across a wet table, front edge lifted slightly. It planes up onto the water and floats. Aquaplaning IS the hydrodynamic wedge — the whole bearing in a kitchen.

Same card, kept dead flat, no lifted edge. It does not plane — it drags. Without a converging angle there is no wedge and no lift. Note this is the failure mode.

Cut a ring of separate flat pads that will sit under a rotating collar, like tiles around a circle.

Support each pad on a single ridge or point placed behind its centre, so the pad can rock. The off-centre pivot lets the leading edge lift.

Put a film of oil on the pads and rest the rotating collar on top. Handle oil with care and wipe spills.

Turn the collar in one direction. Each pad tips automatically so its leading edge rises — dragging oil into a converging wedge, exactly like the aquaplaning card.

Compare the effort to turn the collar now versus the dry plate in step 2. It runs far freer — the collar is riding on oil, not rubbing wood.

Wedge the pads so they cannot tilt. The oil film collapses and the drag and heat return. The tilt is not a detail — it is the invention.

Spin the other way. A pivoted pad tips the other way and still forms a wedge — the bearing works in both directions because each pad finds its own angle.

Press down on the collar. The wedge simply builds more oil pressure to match — the film gets thinner but holds. That self-adjusting pressure is why it carries tonnes.

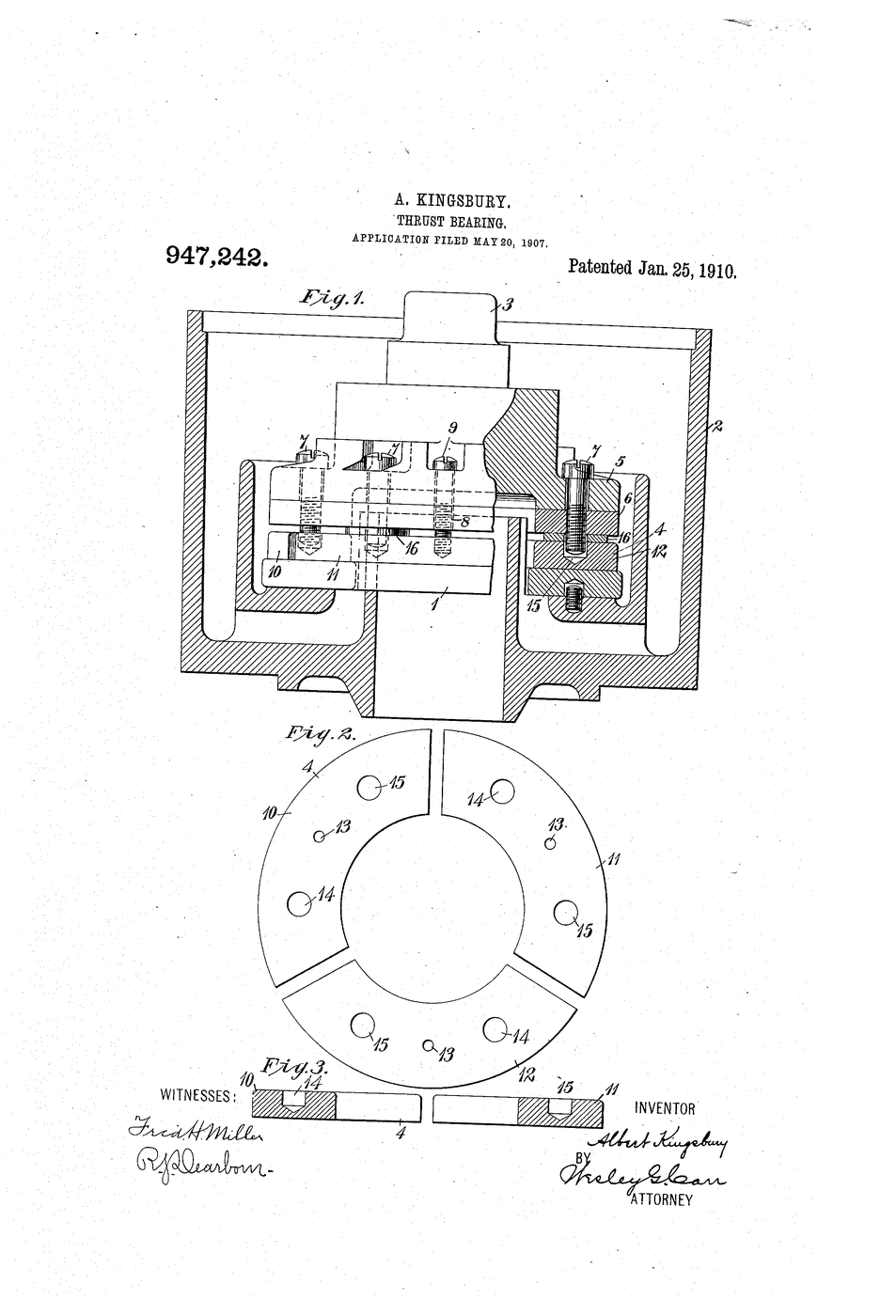

The patent. US 947,242, "Thrust-bearing", filed 20 May 1907 and granted 25 January 1910 to Albert Kingsbury of Pittsburgh, Pennsylvania. The Google Patents date reads 1907 — the filing date; the sheet says "Patented Jan. 25, 1910". Kingsbury had been working on the idea since the 1890s, testing a tiny model bearing that famously ran for years.

The physics is hydrodynamic lubrication, and it is genuinely surprising. Kingsbury did not set out to reduce friction with slippery oil; he exploited the fact that a moving surface will drag oil into any narrowing gap, and that fluid squeezed into a converging wedge develops real pressure — enough to hold surfaces completely apart. The theory had been worked out by Osborne Reynolds and demonstrated by Beauchamp Tower for journal bearings; Kingsbury's contribution was to carry an axial thrust this way, by making each bearing pad free to tilt so it forms its own wedge automatically at any speed and load (steps 6 to 8). Once running, the collar never touches the pads at all — the two are separated by a film of oil often thinner than a hair, and wear essentially stops. That is why his test bearing could run for years.

The tilt is the entire trick. A fixed, flat pad cannot form the wedge (step 4), and a rigid bearing would have to be built at exactly the right angle for one speed and one load. A pivoted pad finds the correct angle by itself, adjusts as conditions change, and — because the pivot is behind centre — even works when the shaft reverses (step 11). Lock the tilt and the whole thing fails (step 10). It is a rare machine element with almost no moving parts that nonetheless adapts.

Independent invention on two continents. The Australian engineer Anthony Michell patented essentially the same tilting-pad thrust bearing in 1905, slightly before Kingsbury's grant, working entirely separately from the fluid-film theory. Both names are attached to it, and the honest description is the Kingsbury–Michell thrust bearing — a good example of a ripe idea found by two people at once, and worth stating rather than crediting one man alone.

Why it belongs in an energy blueprint. This bearing is what lets a big machine push along its own axis. It took the thrust of ship propeller shafts — its adoption through the World Wars let warships and liners transmit far more power without the thrust bearing overheating — and it sits under the vertical shafts of hydroelectric and steam turbines, carrying the entire weight and thrust of the rotating machine on a film of oil. Every large turbine-generator spinning in a power station today rests, in the end, on a wedge of oil that a tilting pad squeezes into being — the effect you produced with a wet card in step 3.
