Cookware Handles: Stainless Loops on Flanges Drilled for Rivets

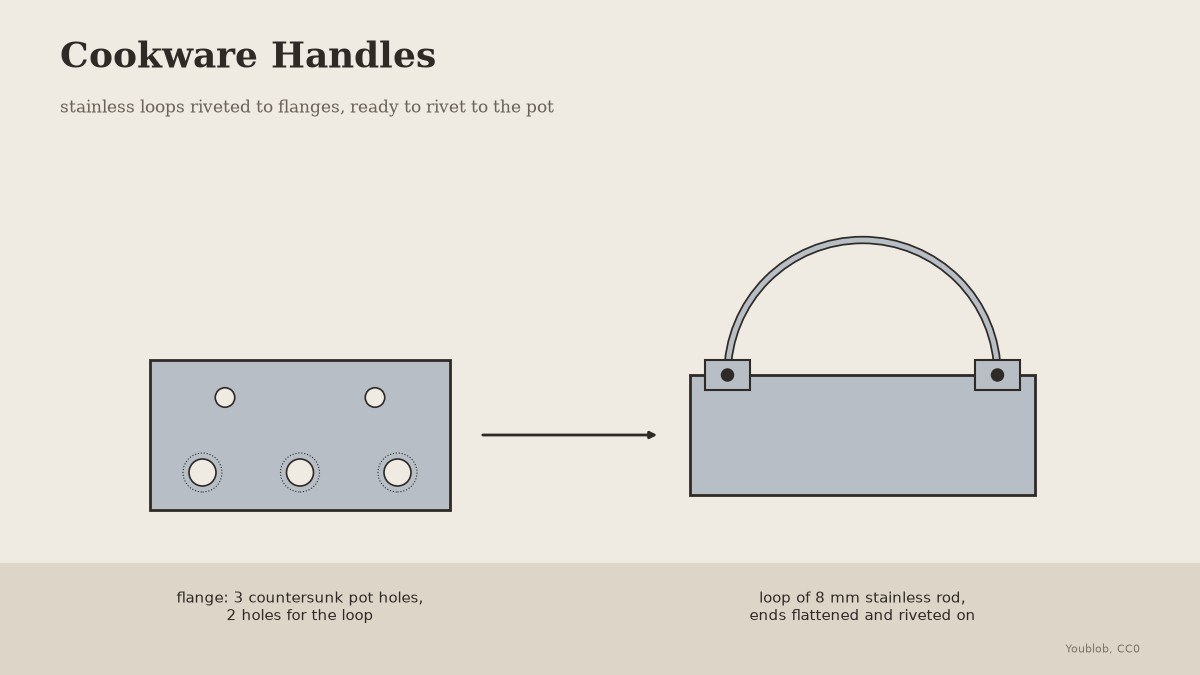

Pot handles are often riveted on: the handle has a flange with a pattern of holes, bevelled on the side against the pot, so the rivets spread into the bevel and lock the handle to the pot (US 7,966,710). These are a pair of loop handles bent from stainless rod and riveted to stainless flange plates, ready to rivet to a pot. Design and sizes are ours. The picture: our drawing.
Kati
Half a day

Maagizo

1

Cut the flanges

Cut two flange plates 70 × 35 mm from 2 mm stainless sheet and curve each slightly to fit the pot's side wall. Drill each with three holes for the pot rivets, countersunk on the face that will sit against the pot, and two plain holes for fixing the loop.

Vifaa kwa hatua hii:

Bati la chuma cha puaBati la chuma cha pua1 kipande

Zana zinazohitajika:

Mkasi wa batiMkasi wa bati
Msumeno wa chumaMsumeno wa chuma
Kibano cha meza ya kaziKibano cha meza ya kazi
Kekee cha NguzoKekee cha Nguzo
Seti ya vichimbuziSeti ya vichimbuzi
Seti ya vitobo vya kuzamisha vichwa vya skrubuSeti ya vitobo vya kuzamisha vichwa vya skrubu
Mafuta ya kukatiaMafuta ya kukatia
Seti ya tupaSeti ya tupa
Miwani ya usalamaMiwani ya usalama
2

Bend the loops

Cut two 180 mm lengths of 8 mm stainless rod. Heat the ends red and flatten them on the anvil into tabs, then bend each rod into a loop that stands clear of the pot wall by a hand's thickness.

Vifaa kwa hatua hii:

Fimbo ya chuma cha puaFimbo ya chuma cha pua400 mm

Zana zinazohitajika:

Msumeno wa chumaMsumeno wa chuma
Fua ya mhunziFua ya mhunzi
FuaweFuawe
Nyundo yenye kichwa cha msalabaNyundo yenye kichwa cha msalaba
Koleo za mhunziKoleo za mhunzi
Kibano cha meza ya kaziKibano cha meza ya kazi
Glavu za kulehemuGlavu za kulehemu
3

Drill and rivet the loops

Drill the flattened tabs to match the two plain holes and rivet each loop to the outer face of its flange. The three countersunk holes are left for riveting the handle to the pot.

Vifaa kwa hatua hii:

Rivet za chuma cha puaRivet za chuma cha pua4 vipande

Zana zinazohitajika:

Kekee cha NguzoKekee cha Nguzo
Seti ya vichimbuziSeti ya vichimbuzi
FuaweFuawe
Nyundo yenye kichwa cha msalabaNyundo yenye kichwa cha msalaba
Miwani ya usalamaMiwani ya usalama
4

Finish

File all edges smooth so nothing catches the hand, and check both handles sit flat on the pot wall.

Zana zinazohitajika:

Seti ya tupaSeti ya tupa
Kipima-unene cha dijitali cha inchi 6Kipima-unene cha dijitali cha inchi 6
