Paper Cup

Luellen claims a tapering wall with an integral outward flange at the open end, set roughly perpendicular to the cup axis. That angle is specified, not incidental.

Roll five simple tapered cones with no rim treatment and glue the seams. These are your control.

Push the cones together and pull the bottom one off. Two or three come at once, or it jams. Count how many attempts give exactly one.

Grip the open end. It collapses immediately. A paper rim has almost no hoop stiffness — which matters when someone is holding it full of water.

Cut new blanks with an extra 5 mm all along the edge that will become the rim. That margin becomes the flange.

Roll each blank on a tapered former and glue the seam. Keep the taper consistent — an uneven cone will not stack predictably.

Fold and roll the spare margin outward and downward into a small bead, roughly square to the cup's axis. Work round evenly.

Grip it as in step 4. It resists. Rolling the edge turns a flat strip into a ring, and a ring is enormously stiffer than the sheet it came from.

Nest them together. The flanges meet and hold each cup a fixed distance from the next — they cannot wedge into one another.

Pull the bottom cup away ten times. Compare against step 3. Reliable single release is what makes a vending machine possible at all.

Make two sprung fingers that catch under the lowest flange and pull it down past the stack. The machine grips the flange, not the cup wall.

Load the plain cones from step 2 into the same mechanism. It crushes them or takes several. The flange is the interface between cup and machine.

Coat one cup with wax and leave one plain. Fill both and time how long each holds water. The patent specifies waterproof paper as "resilient, cheap and sufficiently durable".

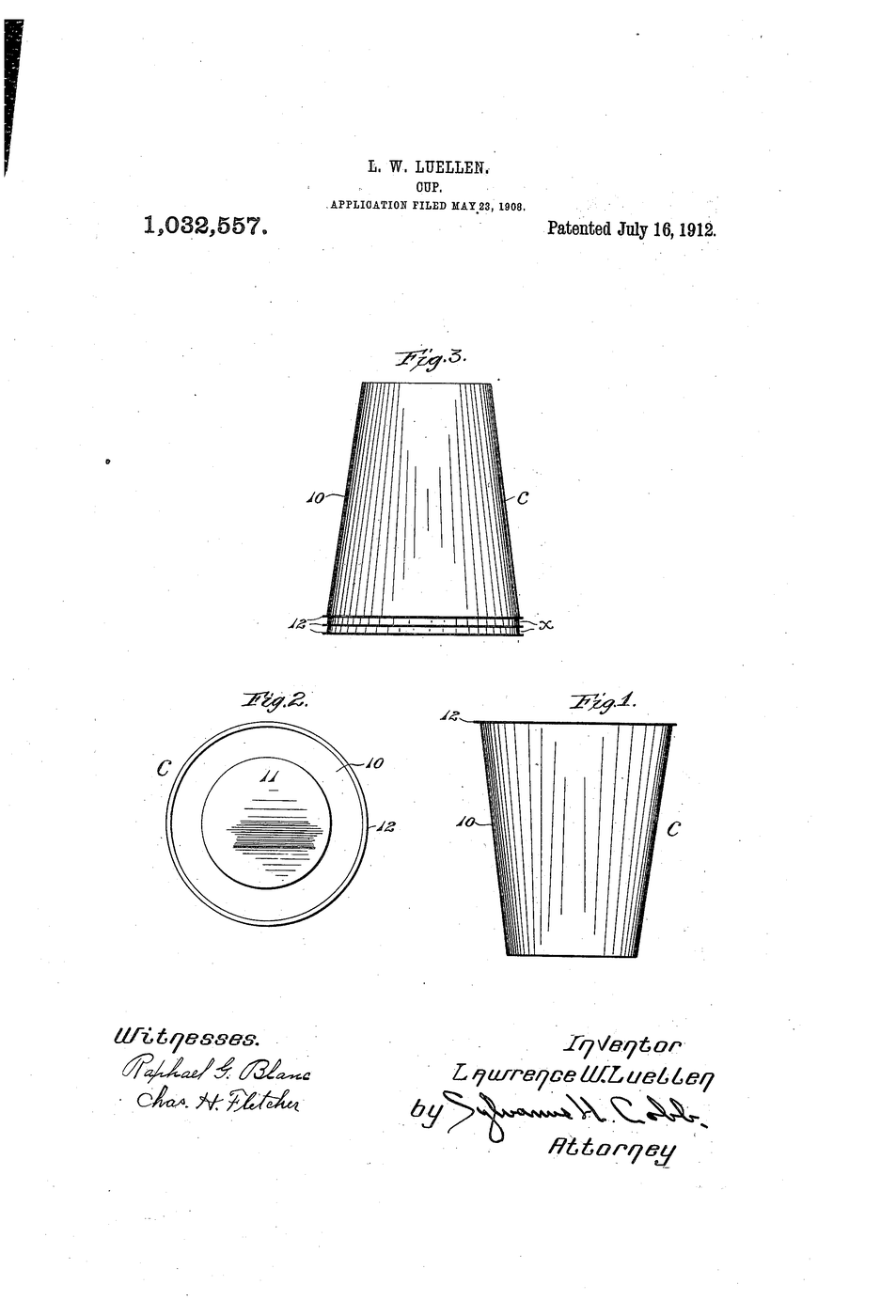

The patent. US 1,032,557, "Cup", filed 23 May 1908 and granted 16 July 1912 to Lawrence W. Luellen. ⚠ The invention is almost always dated 1908 — that is the filing date; the grant is four years later.

It was sold as a health measure, and it genuinely was one. Luellen and his business partner Hugh Moore did not market a convenience. They campaigned against the common drinking cup — the single shared tin or glass chained beside water taps in schools, courthouses, offices and railway carriages — as a vector of disease, and sold water-vending units that dispensed a clean cup with each drink. The product's first name was the "Health Kup"; it was renamed Dixie Cup about five years later. Several US states banned the common cup outright in this period, and the campaign rode that wave rather than creating it.

Why the flange is the whole patent. The paper cup is not a difficult object; the dispenser is. Nested smooth cones behave like a friction fit that tightens under any downward pressure, so a machine trying to take one takes several or none — step 3 shows this immediately. A perpendicular flange sets a fixed spacing between nested cups, so they never wedge; it gives the mechanism a positive feature to grip; and, almost incidentally, it stiffens a rim that otherwise crumples in the hand. One folded edge, three problems. Step 12 is the proof: the same mechanism fails completely on unflanged cups.

The same materials problem as the drinking straw. A paper vessel must not absorb what it holds, and the answer in both cases was a wax coating — Marvin Stone's paraffin-dipped straw elsewhere in this collection is the identical trick applied to a tube. Modern cups use a thin polyethylene film for the same reason, which is also why paper cups are awkward to recycle: the coating that makes them work has to be separated from the fibre.

The reversal is worth stating plainly. An object introduced specifically to protect public health became, within a century, a symbol of disposable waste — hundreds of billions produced annually, most incinerated or landfilled. Nothing about the engineering changed. What changed was the scale, and the fact that the disease it was designed to interrupt largely stopped being a daily threat, so only the cost side of the ledger remained visible.
