The Hook-and-Guard Bottle Opener: Draw the Wire, Catch the Cork

"This invention relates to an improved bottle-opener, intended to be used to open bottles fastened with H. W. Putnam's bottle-stopper fastening, patented March 15, 1859, and others of a similar construction, used in bottling mineral waters, &c.; and it consists of a handle provided at one end with a hook, brace, and guard, and at the other end with an awl or pick, the objects of the invention being to catch the wire fastening with the hook, rest the brace against the bottle, and, by bearing down upon the handle, to draw the wire from the top and sides of the cork, and permit the cork to be forced out by the contents of the bottle, and caught by the guard to prevent the cork from flying to the wall or other part of the room to soil the wall or break any object with which it may come in contact, both of which mishaps occur in the old method of opening the bottle by hand." "If the cork is held too tightly in the neck of the bottle to be forced out by the contents thereof, the awl or pick E may be used to loosen it. The awl may be also used as an ice-pick."

**Head.** Cut 60 cm of 3 mm galvanised steel wire. Fold it in half and, with round-nose and flat-nose pliers, bend from the fold: a small hook that will catch the bend of the bottle's wire, a short brace curved to fit the bottle's neck, and a long curved loop reaching over the bottle's mouth as the guard. Twist the two tails together for 5 cm. **Handle.** Cut 12 cm of hardwood handle stock and round it with the rasp and file. Drill each end. Set the twisted tails in one end with epoxy. **Awl.** Cut 8 cm of 4 mm mild steel rod, file one end to a point, and set the other end in the handle's second hole with epoxy. **Wire-fastened bottle.** Pour chilled soda water into a clean beer bottle and press a tapered cork in firmly. Twist a ring of wire tight round the neck below the lip and bring a loop of wire from it over the cork, with a bend on one side for the hook. **Test.** Wearing safety glasses, catch the bend with the hook, rest the brace on the neck and bear down on the handle: the wire comes off the cork and the guard stops the cork. If the cork stays in, loosen it with the awl.

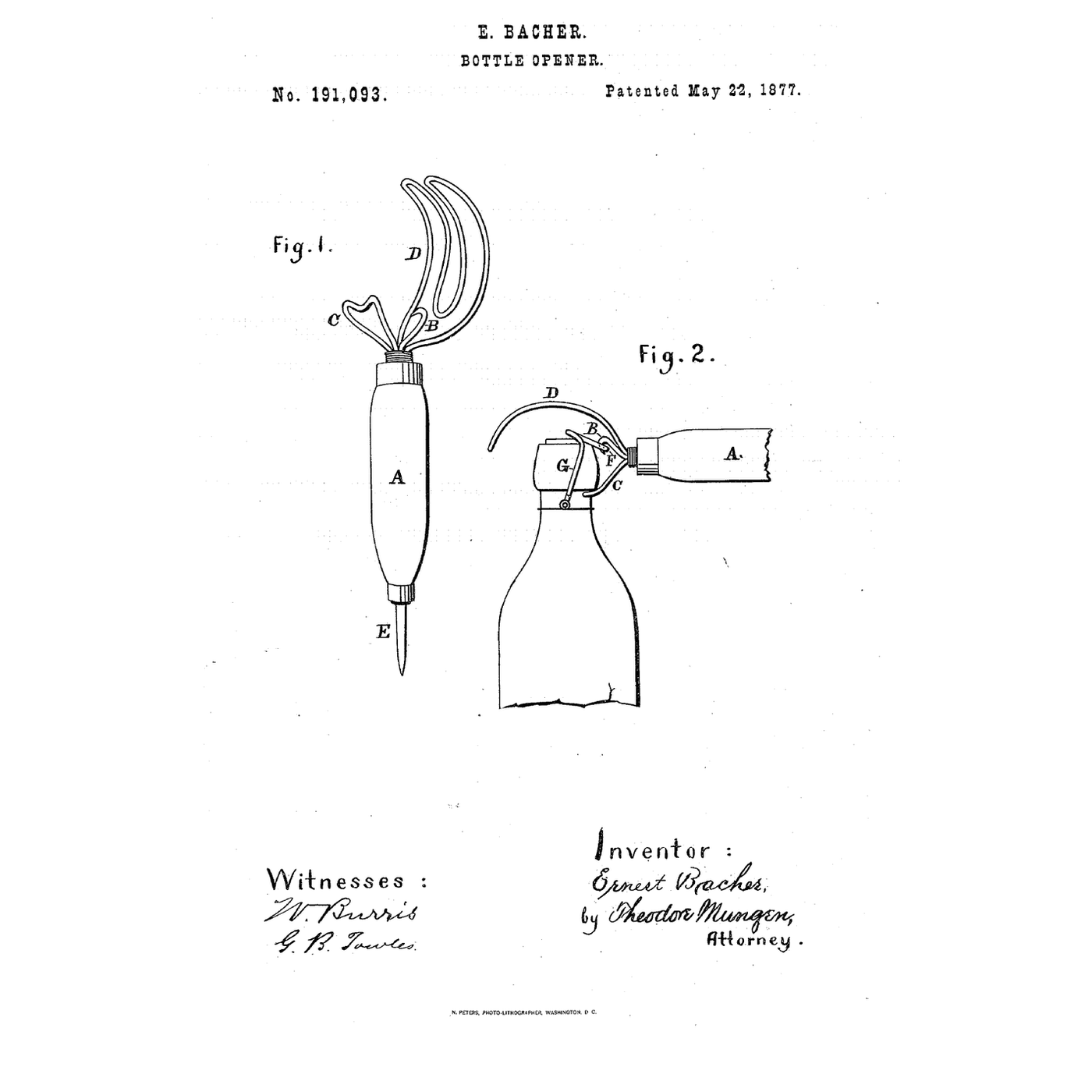

**Ernest Bacher** of Findlay, Hancock County, Ohio, filed US 191,093 on 12 April 1877; it is dated 22 May 1877. He preferred to make the hook B, brace C and guard D of wire secured to the handle A, but said it could be cast in one piece of metal, and his brace was made concave to fit the bottle. His claims cover the handle, hook, brace and guard together, and the guard in a bottle-opener. **Honest limits.** A hand-wired beer bottle of re-corked soda water stands in for a bottle fastened with Putnam's wire, and its gas is weaker, so the cork may not fly. The notebook ignores friction; its forces and lengths are examples. Your opening is the result.
