Steel Needle: Pointed, Eyed, Hardened in Oil and Tempered
Needles are made from good steel wire: cut, straightened, pointed, flattened and pierced for the eye, hardened by heating and plunging into oil, then tempered back to a springy hardness, scoured and polished (Bucknall Smith, A Treatise upon Wire, 1891). This is the same sequence by hand, one heavy needle at a time from piano wire; the hand methods and sizes are ours.

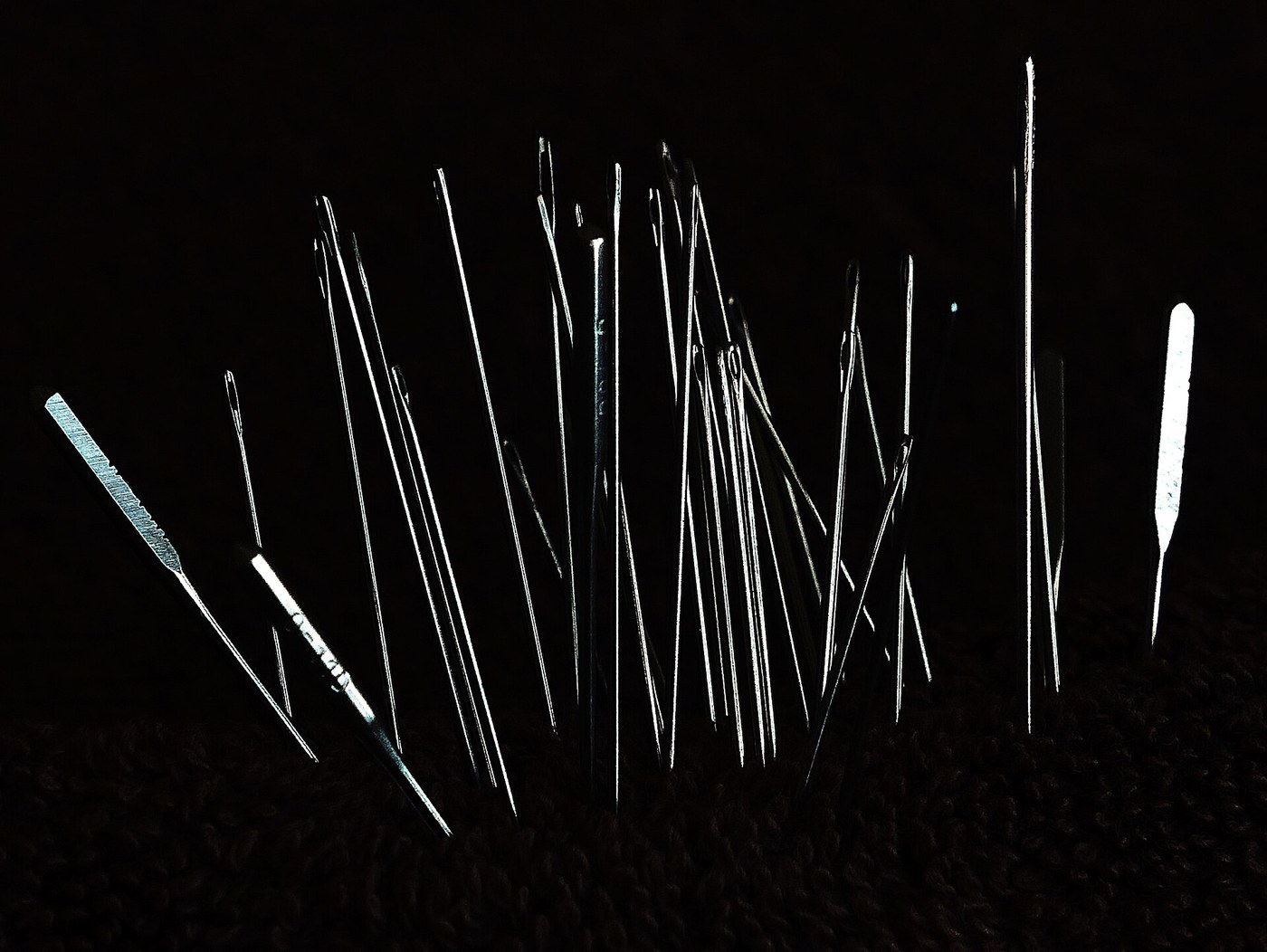

The picture: steel sewing needles (Wikimedia Commons).
Pertengahan
Half a day
Arahan
1
1
Cut, soften and straighten
Cut, soften and straighten
Cut 70 mm of 1.2 mm piano wire. Heat it to red in the forge and let it cool slowly in the ashes so it can be filed and drilled, then roll it straight on the anvil.
Bahan untuk langkah ini:
Dawai piano70 mmAlatan diperlukan:
Playar pemotong sisi
Relau tukang besi
Playar muncung tirus
Andas2
2
Point
Point
Clamp it in the vise and file a long, even taper to a sharp point, turning the wire as you go.
Alatan diperlukan:
Set Kikir
Ragum Bangku
Cermin mata keselamatan3
3
Flatten and pierce the eye
Flatten and pierce the eye
Flatten the head end slightly on the anvil, drill the eye through the flat with the finest bit, then file off the burrs and round the head.
Alatan diperlukan:
Andas
Tukul kepala baji lintang
Gerimit tangan
Set Kikir
Ragum Bangku
Cermin mata keselamatan4
4
Harden in oil
Harden in oil
Heat the needle evenly to red and plunge it into the oil. It is now glass-hard and brittle.
Alatan diperlukan:
Relau tukang besi
Playar muncung tirus
Tangki lindap kejut berminyak
Cermin mata keselamatan5
5
Temper
Temper
Reheat it in the oven to about 600 °F (315 °C) and let it cool slowly to a springy temper. If it came out crooked, straighten it with light blows of a small hammer on the anvil.
Alatan diperlukan:
Ketuhar rawatan haba
Termogandingan dengan paparan
Andas
Tukul kepala baji lintang6
6
Scour and polish
Scour and polish
Scour it bright with emery cloth, a little oil and soap. Wash it in hot water, dry it in sawdust, touch up the point, and polish it on the leather strop.
Alatan diperlukan:
Kain emeri
Minyak zaitun
Sabun
Habuk gergaji
Tali kulit pengasah
Set KikirBahan
