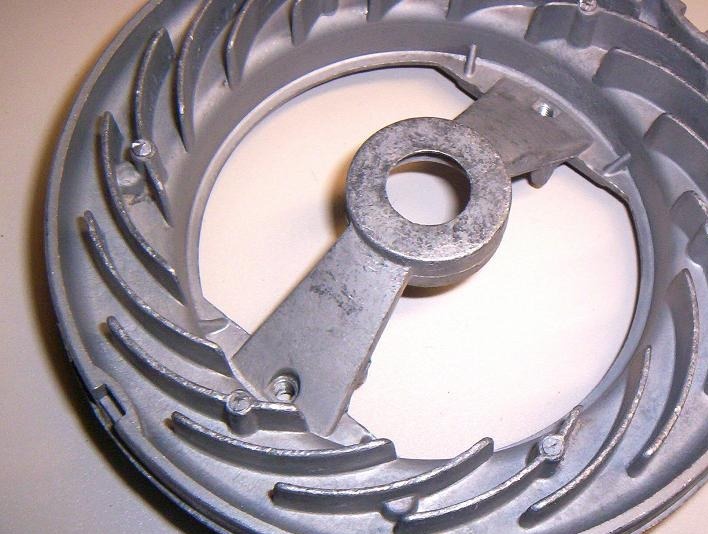

Aluminium Die Casting
Die casting is injection moulding for metal: molten metal is forced at high pressure, about 10–175 MPa, into a steel die, held until it freezes, and pushed out by ejector pins. Aluminium needs a cold-chamber machine, where each shot is ladled in from a separate furnace, because molten aluminium would pick up iron from a submerged pump. The gate, runners and flash are broken off afterwards. Enclosures, housings and brackets come out with fine detail and little machining.
Ilọsíwájú
Seconds per casting (industrial)
Ìlànà
1
1
Melt
Melt
Aluminium ingots are melted in a holding furnace beside the machine.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìṣù aluminiọ̀mù50 kg2
2
Prepare the die
Prepare the die
The two die halves are sprayed with release lubricant and closed.
Àwọn irinṣẹ́ tí a nílò:

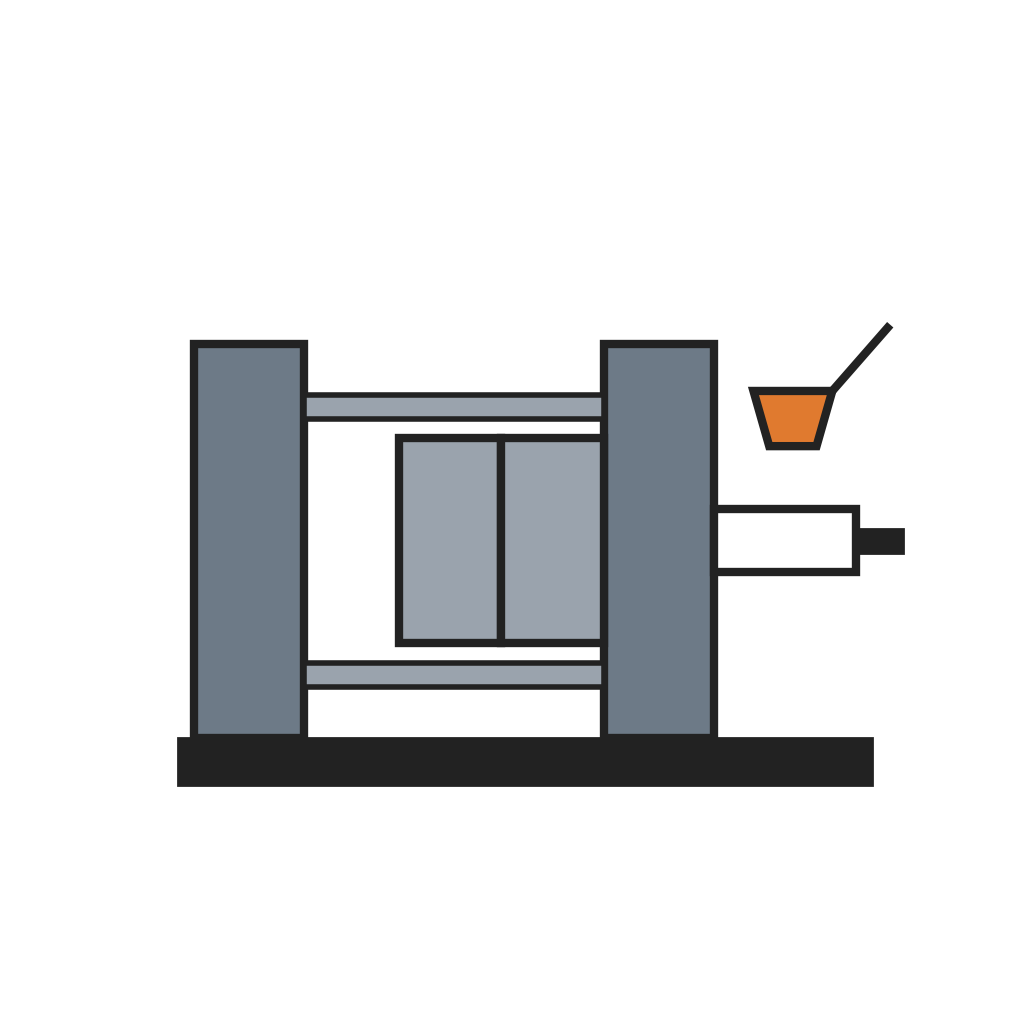

Ẹ̀rọ ìdà onípá

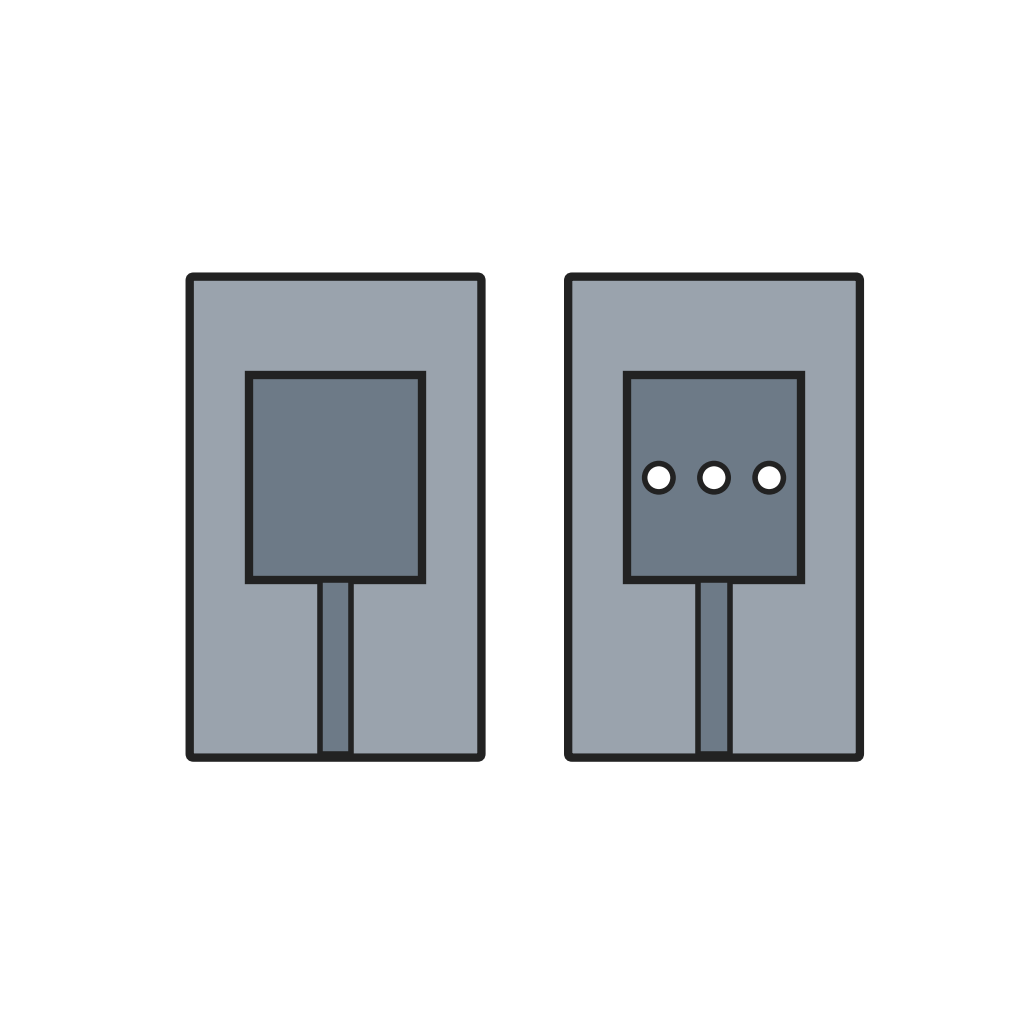

Àwòṣe ìdà onípá3
3
Shot
Shot
A measured ladle of metal goes into the shot sleeve and a plunger drives it into the die at high pressure.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìdà onípá4
4
Freeze and eject
Freeze and eject
Pressure is held while the metal freezes; the die opens and ejector pins push the casting out.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìdà onípáÀwòṣe ìdà onípá5
5
Trim and check
Trim and check
Gate, runners and flash are removed and the casting is checked against the drawing.
Àwọn irinṣẹ́ tí a nílò:
Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6Àwọn ohun-èlò
1- 50 kgÀyè
Àwọn irinṣẹ́ tó nílò
3Ìtọ́nisọ́nà yìí ń ṣe
