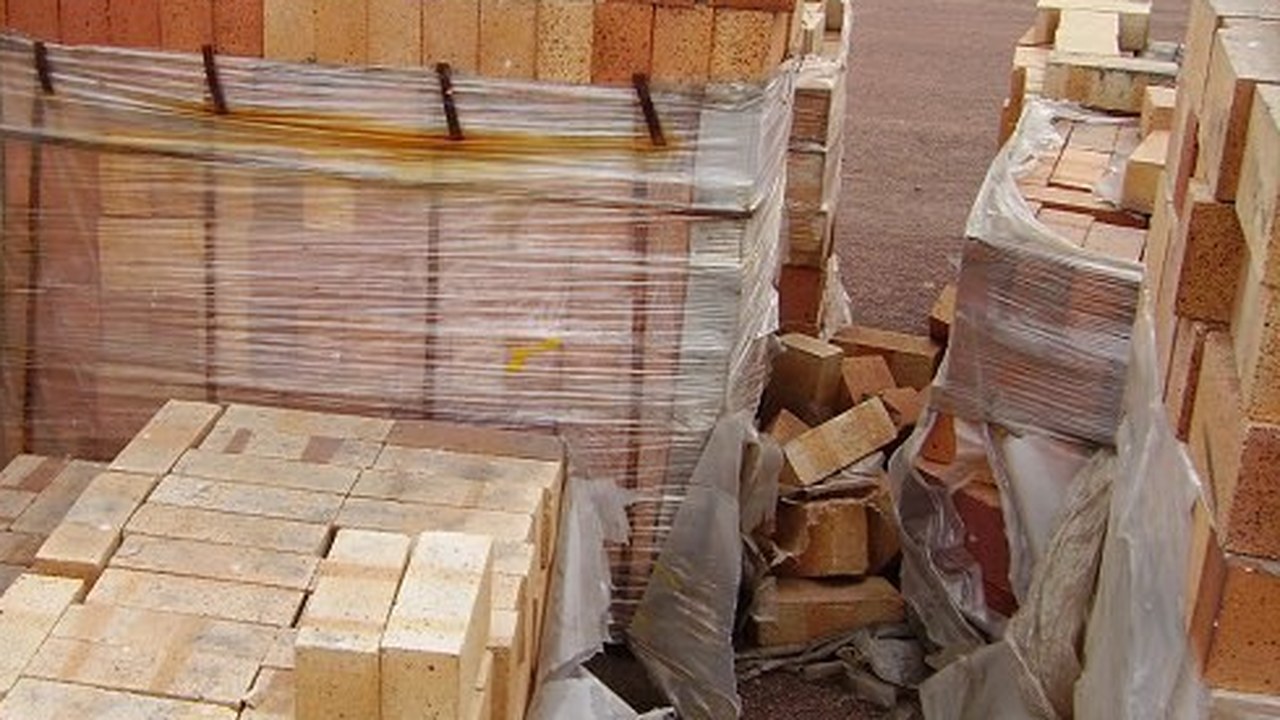

Fireclay Firebricks

Firebricks line kilns, forges and furnaces because they stand heat that would slump or crack ordinary brick. They are refractory fireclay bound round a large share of grog. Potters' guides give about 20–40 % grog for general kiln bricks and up to 60–80 % for the hottest parts such as fireboxes; the bonding clay should be a little less refractory than the grog. Factory firebricks are fired at about 1,100–1,400 °C. Make test bricks first, fire them, and check them for cracks before making a whole batch.
Àárín
A day, plus weeks drying and a firing

Ìlànà

1

Choose the mix

For general kiln walls weigh about 70 parts fireclay to 30 parts coarse grog; for a firebox about 30 to 70. Write the mix on a label.

Àwọn irinṣẹ́ tí a nílò:

Òǹwọ̀n ìwúwoÒǹwọ̀n ìwúwo
2

Mix

Mix the dry fireclay and grog in the trough, then add water a little at a time and tread or turn it until it is stiff and holds together.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Amọ̀ Tí Ń Fara Da InáAmọ̀ Tí Ń Fara Da Iná14 kg
Grog (ìkòkò tí a díná tí a lọ̀)Grog (ìkòkò tí a díná tí a lọ̀)6 kg
OmiOmi3 lítà

Àwọn irinṣẹ́ tí a nílò:

Ìgbá àdàpọ̀Ìgbá àdàpọ̀
Ọ̀kọ́ ìwalẹ̀ (ṣọ́ọ̀bù)Ọ̀kọ́ ìwalẹ̀ (ṣọ́ọ̀bù)
Ìbòjú ErukuÌbòjú Eruku
3

Mould

Dust the wet brick mould with sand, throw a lump in hard so it fills the corners, strike off the top with the straightedge and tip the brick out onto a board.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

IyanrìnIyanrìn1 kg

Àwọn irinṣẹ́ tí a nílò:

Àwòṣe igi fún bíríkìÀwòṣe igi fún bíríkì
Etí tààràEtí tààrà
4

Dry slowly

Dry the bricks on pallets under cover, out of sun and wind, for several weeks, turning them now and then. They must be dry right through before firing.

Àwọn irinṣẹ́ tí a nílò:

Pẹpẹ igiPẹpẹ igi
TáàpùTáàpù
5

Fire

Stack them with gaps in the kiln and fire them slowly at first, then as hot as the kiln will safely go. Note the top temperature on the pyrometer.

Àwọn irinṣẹ́ tí a nílò:

Ìléru ÌsunÌléru Ìsun
PirómítàPirómítà
Ohun èlò inú ààrò seramikiOhun èlò inú ààrò seramiki
6

Check them

When cold, tap each brick: a clear ring means it is sound, a dull thud means a crack. Measure the shrinkage for the next batch.

Àwọn irinṣẹ́ tí a nílò:

Okùn Ìdíwọ̀nOkùn Ìdíwọ̀n
7

Troubleshooting

Firebrick troubleshooting.
