Floating Load Piston for a Strain-Gauge Load Cell

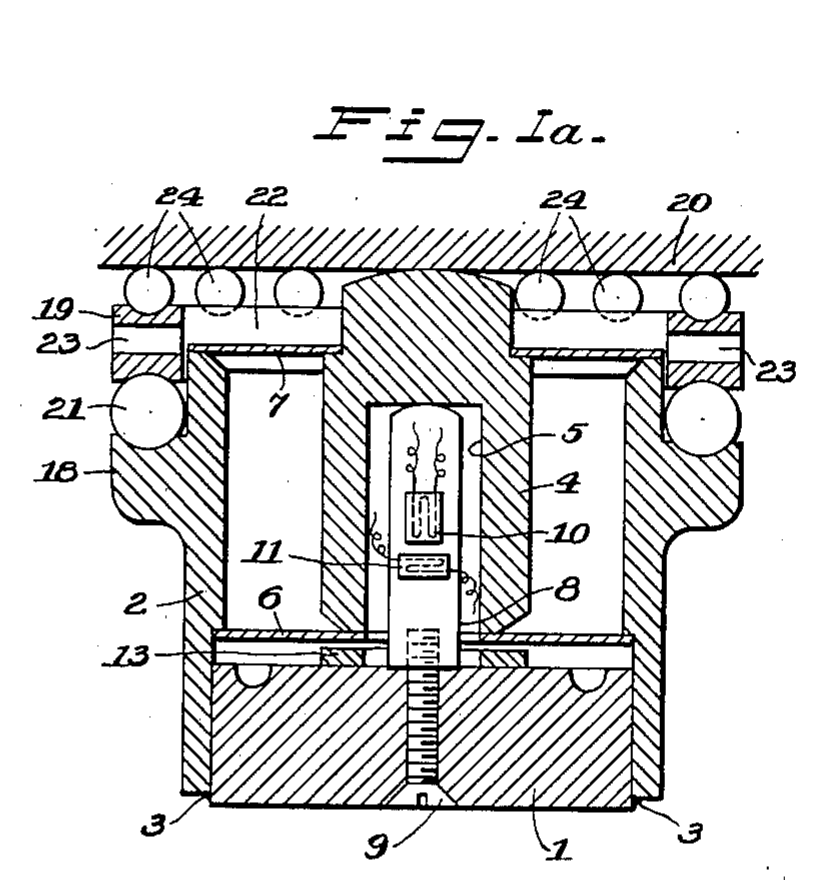

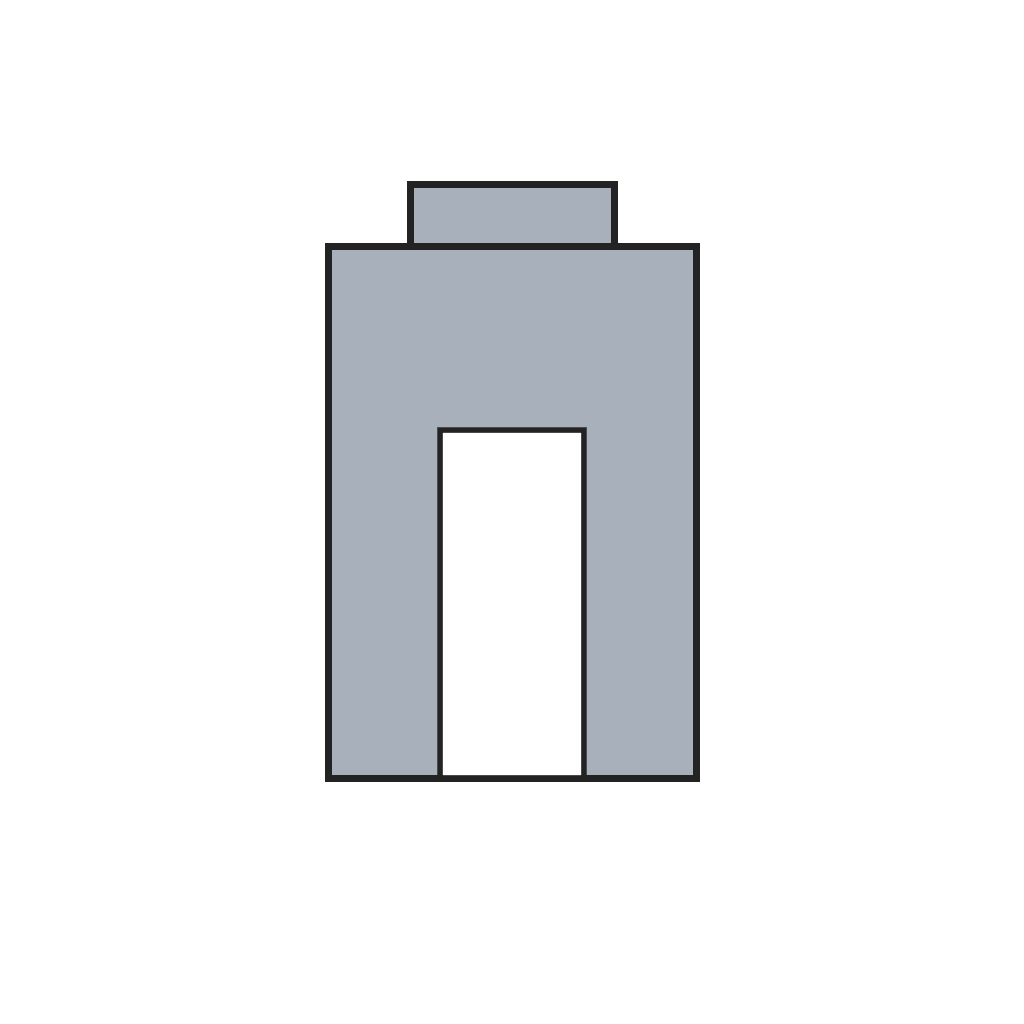

Ruge's floating piston takes the load and passes it straight down onto the column. It is bored so the column reaches up inside it, and two diaphragms hold it centred in the shell.
Àárín
A few hours
Ìlànà
1
1
Watch: boring a hole on a lathe
Watch: boring a hole on a lathe
Boring a hole step by step on a metal lathe.
2
2
Turn the outside
Turn the outside
Saw a length of round bar, center and face it, and turn the outside to size, leaving clearance inside the shell.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ọ̀pá rírọ irin rírọ̀1 ẹyọÀwọn irinṣẹ́ tí a nílò:
Ayùn Irin
Ẹ̀rọ Ìyí Irin
Ìdìmú ìfàmúra ẹ̀rọ ìyípo
Òróró gígé
Kálípà Fáníà3
3
Bore it
Bore it
Chuck it, drill a starting hole from the lower end and bore it out with a boring bar, stopping short of the top: the column's rounded end bears on the end of the bore.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ Ìyí Irin
Ọ̀pá gígé inú ihòÒróró gígéKálípà Fáníà4
4
Limits
Limits
Ruge's patent gives the part's shape and job but no material or size. Mild steel and silver-solder brazing are our choice; size it to the load you need. Lathe method after Palmateer, Elementary Machine Shop Practice (1918).
Àwọn ohun-èlò
1- 1 ẹyọÀyè
Àwọn irinṣẹ́ tó nílò
6- Àyè
- Àyè
- Àyè
