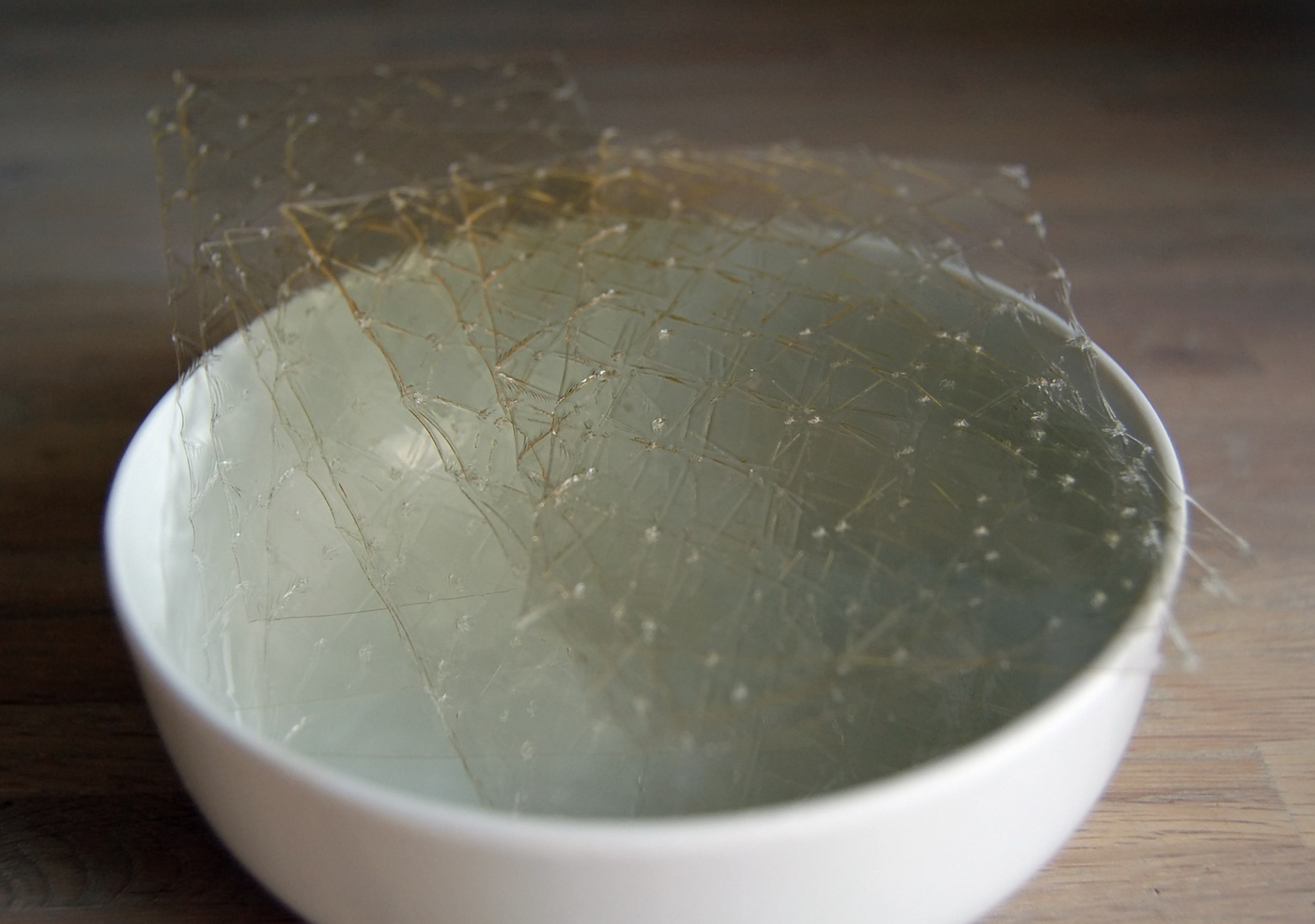

Gelatin from Bones and Skins
Gelatin is collagen broken down by hydrolysis. Most is made from by-products of the meat and leather trades: pork skins, pork and cattle bones, and split cattle hides. The same thing happens at home when cartilaginous cuts or bones are boiled and the cooled stock sets to a jelly. Commercially the raw material is cleaned, the collagen is hydrolysed with acid (type A gelatin, suited to pig skin, 10–48 hours) or alkali (type B, suited to cattle hide, several weeks), the gelatin is extracted in hot water in several stages, and the solution is filtered, evaporated, dried, ground and sifted at the lowest temperatures possible to keep its gel strength.
Ilọsíwájú
Days to weeks
Ìlànà
1
1
Pretreat the raw material
Pretreat the raw material
Bones: remove calcium and other salts with dilute acid, and reduce the fat with hot water to no more than 1%. Skins and hides: cut down, wash, remove hair and degrease.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Cattle Bones1 as required
Pork Skin1 as required
Dilute Acid Solution1 as required
Omi1 as required2
2
Hydrolyse the collagen
Hydrolyse the collagen
Treat with acid (10 to 48 hours, gives type A gelatin; suits pig skin) or alkali (several weeks, gives type B; suits cattle hide).
Àwọn irinṣẹ́ tí a nílò:
Gelatin Extraction Tank3
3
Extract
Extract
Extract the gelatin with hot water or dilute acid in several stages, raising the temperature at each later stage.
Àwọn irinṣẹ́ tí a nílò:
Gelatin Extraction Tank4
4
Recover
Recover
Filter, evaporate, dry, grind and sift the gelatin, at the lowest temperature possible, in several quick stages so the protein is not degraded.
Àwọn irinṣẹ́ tí a nílò:
Filter Press
Evaporator
Grinding Mill
Ohun ìsẹ́Àwọn ohun-èlò
4- 1 as requiredÀyè
- 1 as requiredÀyè
- 1 as requiredÀyè
- 1 as requiredÀyè
Àwọn irinṣẹ́ tó nílò
5- Àyè
- Àyè
- Àyè
