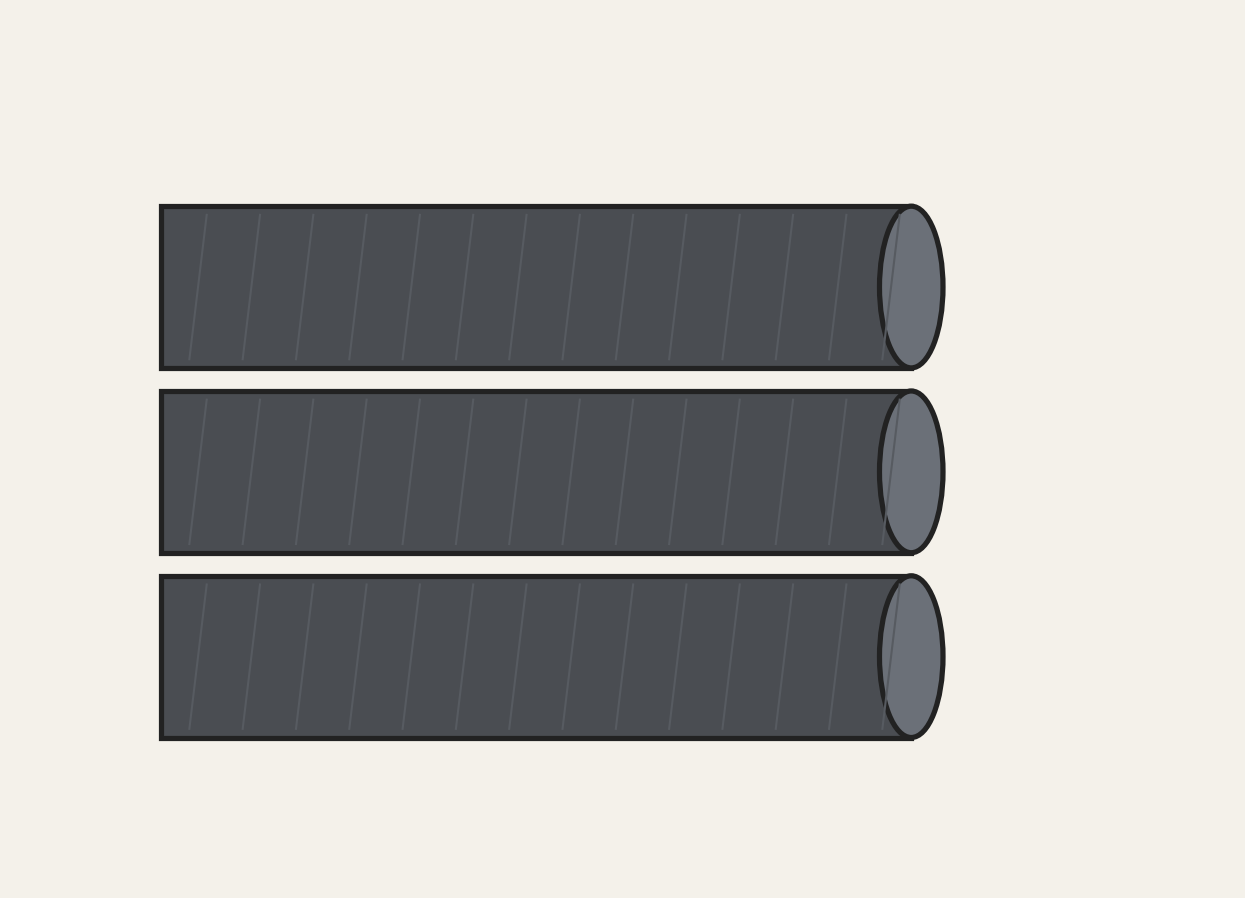

Graphite Electrodes from Petroleum Coke and Pitch
Graphite electrodes carry the current that melts scrap steel in electric arc furnaces. They are made from petroleum coke mixed with coal tar pitch as a binder. The paste is extruded and shaped, baked to carbonise the pitch, and then graphitised by heating to nearly 3000 °C, where the carbon atoms arrange themselves into graphite. Industrial electrodes reach 3.5 m long and 75 cm across.
Ilọsíwájú
Factory process
Ìlànà
1
1
Mix the paste
Mix the paste
Mix petroleum coke with coal tar pitch, the binder.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Èédú epo-ilẹ̀1 as required
Ọ̀dà ìtàjẹ èédú òkúta1 as requiredÀwọn irinṣẹ́ tí a nílò:

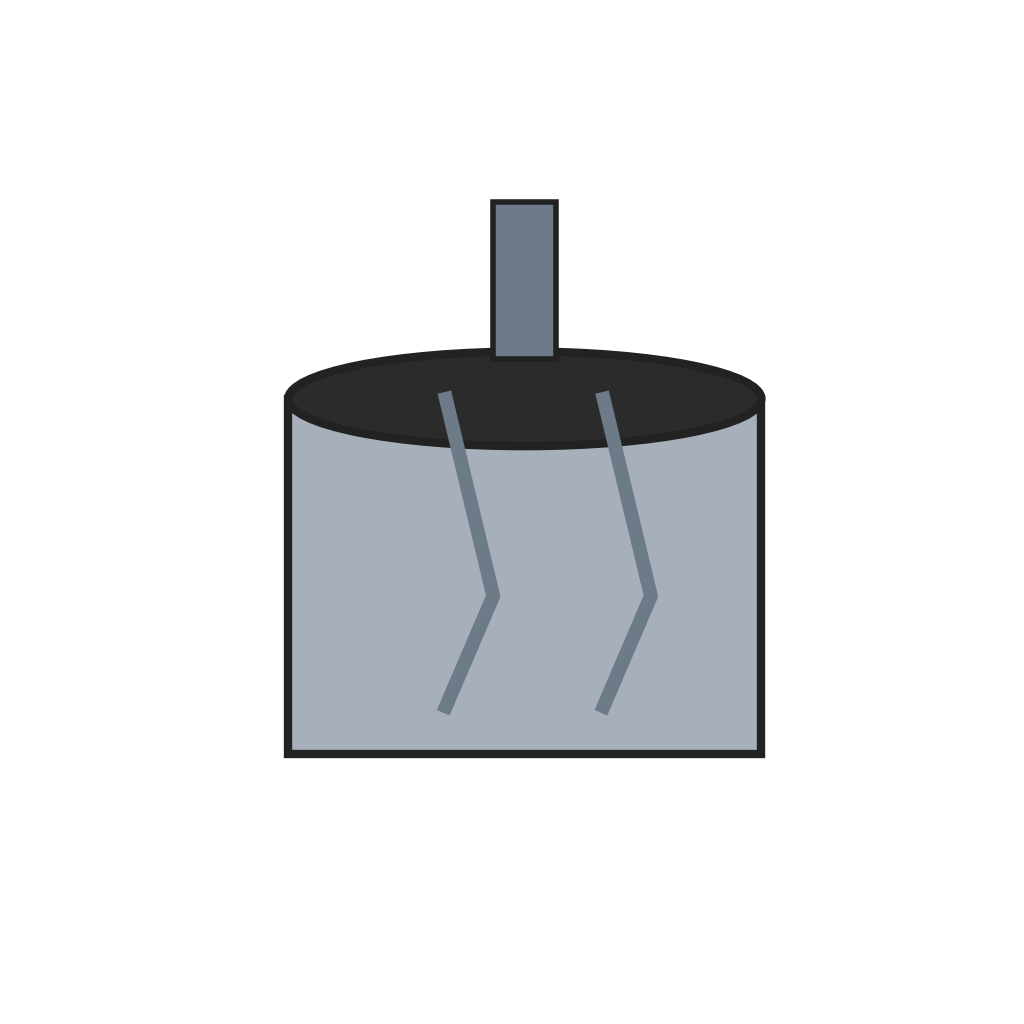

Ẹ̀rọ àpòpọ̀ ìpara carbon2
2
Extrude and shape
Extrude and shape
Extrude the paste and shape it into electrodes.
Àwọn irinṣẹ́ tí a nílò:

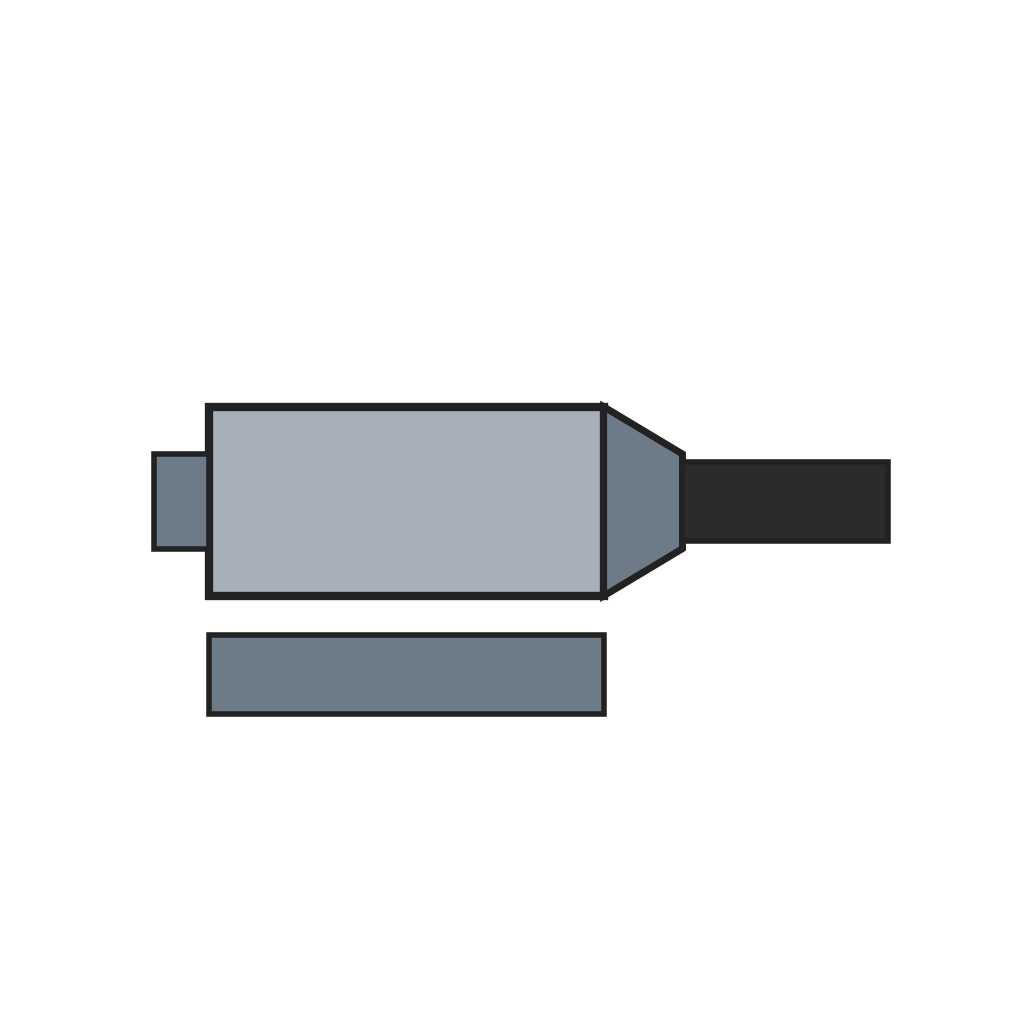

Ẹ̀rọ ìtẹ̀ ìpara carbon jáde3
3
Bake
Bake
Bake the shapes to carbonise the pitch binder.
Àwọn irinṣẹ́ tí a nílò:

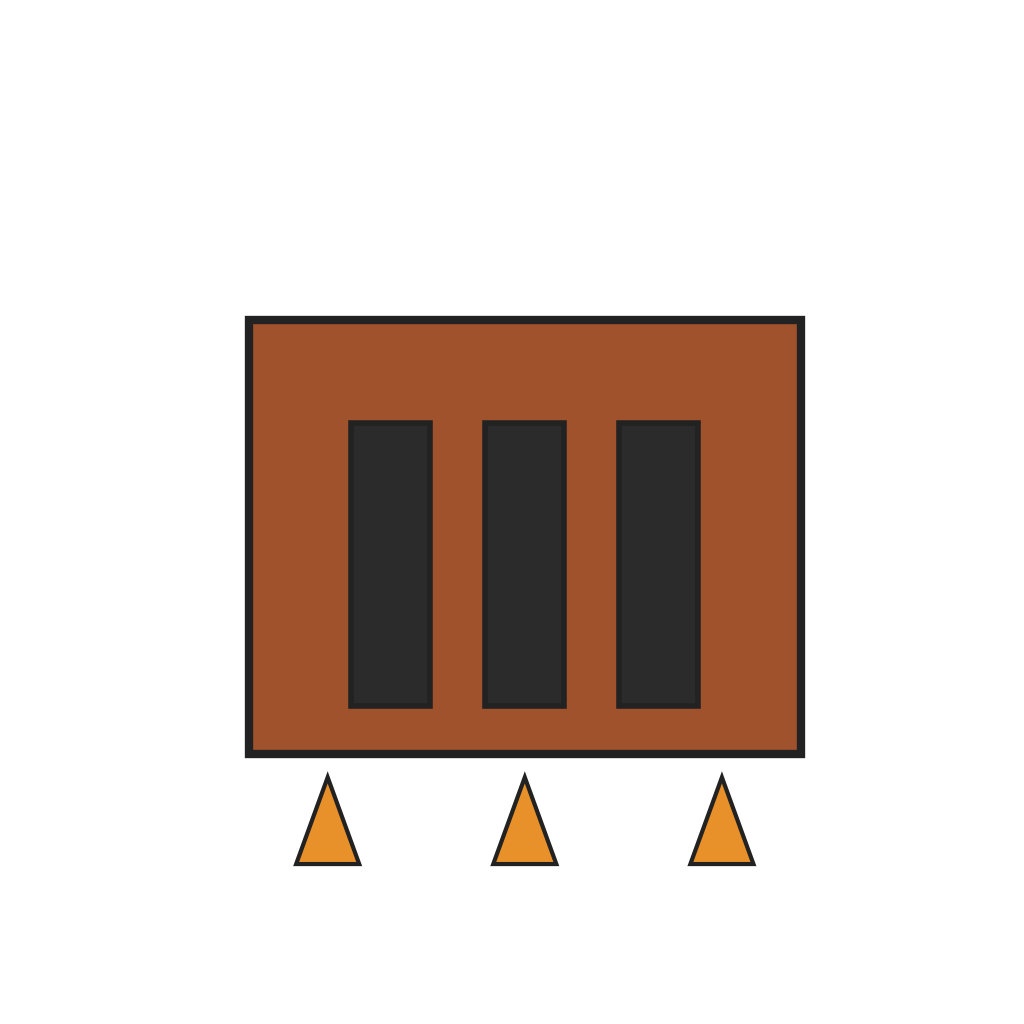

Ààrò ìsun carbon4
4
Graphitise
Graphitise
Heat the baked carbon to nearly 3000 °C. At that temperature the carbon atoms arrange themselves into graphite.
Àwọn irinṣẹ́ tí a nílò:
Ààrò ìsọdi graphiteÀwọn ohun-èlò
2- 1 as requiredÀyè
- 1 as requiredÀyè
Àwọn irinṣẹ́ tó nílò
4Ìtọ́nisọ́nà yìí ń ṣe
