Load-Sensitive Column for a Strain-Gauge Load Cell

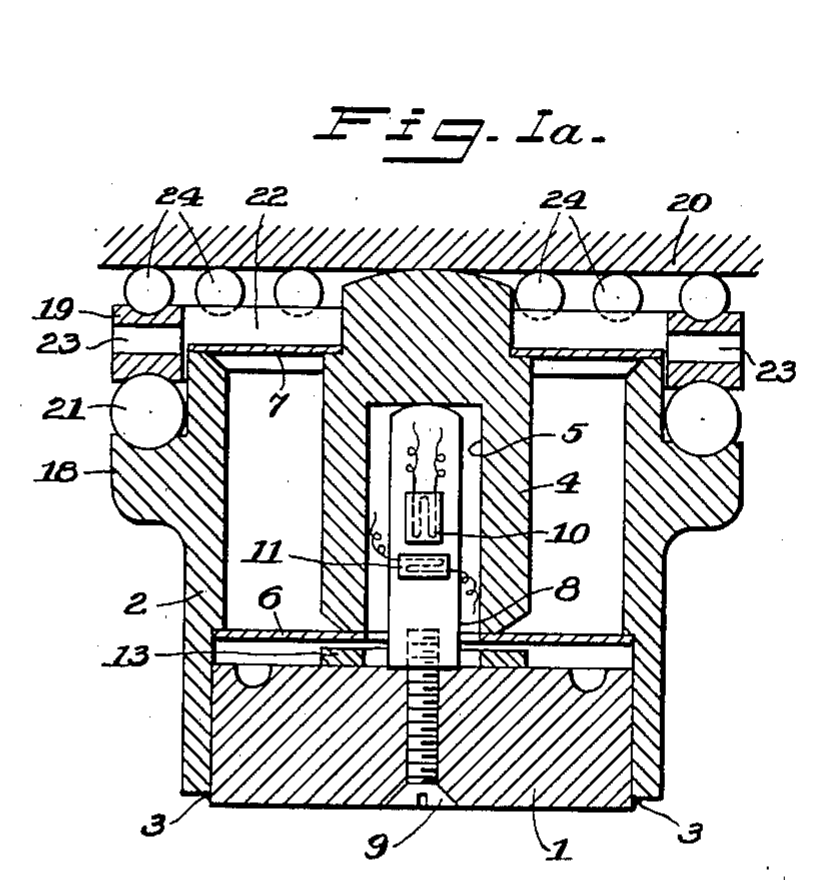

The column inside Ruge's load cell (1949) carries the whole load and the bonded strain gauges. Its lower end screws into the base; its upper end is rounded to bear in the piston's bore.
Àárín
A few hours
Ìlànà
1
1
Watch: facing and turning on a lathe
Watch: facing and turning on a lathe
Facing and parting on a manual lathe.
2
2
Cut, center and face
Cut, center and face
Saw a length of round bar. Center both ends, fit a lathe dog and face both ends square.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ọ̀pá rírọ irin rírọ̀1 ẹyọÀwọn irinṣẹ́ tí a nílò:
Ayùn Irin
Ẹ̀rọ Ìyí Irin
Ìdìmú ìfàmúra ẹ̀rọ ìyípo
Ẹ̀rọ Ìlùkòkò Onídúró3
3
Turn it
Turn it
Rough-turn to within 0.03–0.04 in of size, then take the finishing cut slowly, with cutting oil. Ruge allows round, square, solid or hollow; a square section (filed or shaped flat) takes the gauges more easily.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ Ìyí Irin
Òróró gígé
Àkójọ Ìfá
Máíkírómítà4
4
Thread the foot, round the head
Thread the foot, round the head

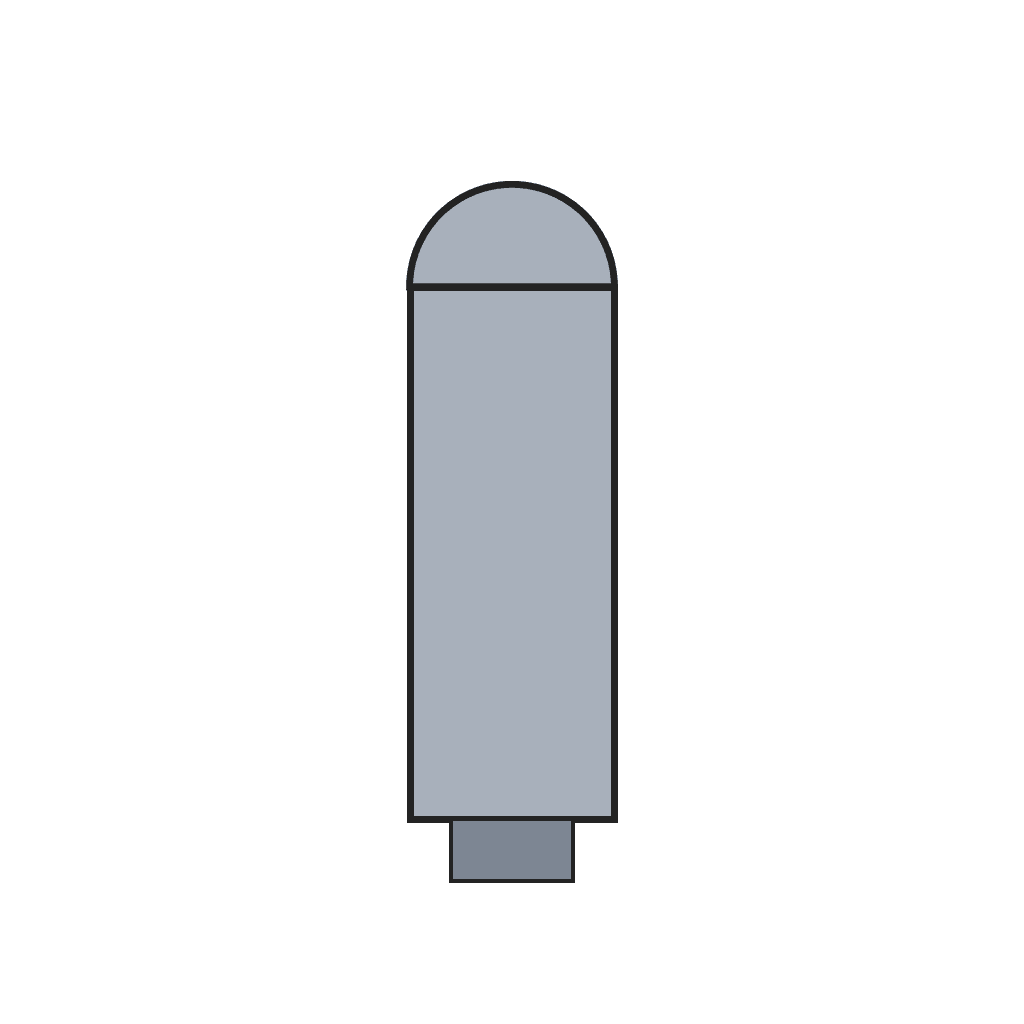

Cut a thread on the lower end so it screws rigidly into the base. Round the upper end to a half-sphere with a form tool and file.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ Ìyí Irin
Ẹ̀rọ ìgé ihá ìdábùúÀkójọ Ìfá5
5
Limits
Limits
Ruge's patent gives the part's shape and job but no material or size. Mild steel and silver-solder brazing are our choice; size it to the load you need. Lathe method after Palmateer, Elementary Machine Shop Practice (1918).
Àwọn ohun-èlò
1- 1 ẹyọÀyè
Àwọn irinṣẹ́ tó nílò
8- Àyè
- Àyè
- Àyè
- Àyè
Ìtọ́nisọ́nà yìí ń ṣe
CC0 Àgbègbè Gbogbogbò
Blueprint yìí ti jáde lábẹ́ CC0. O lè ṣe àdàkọ, yí padà, pín, àti lò láìsí ìyọ̀ǹda.
