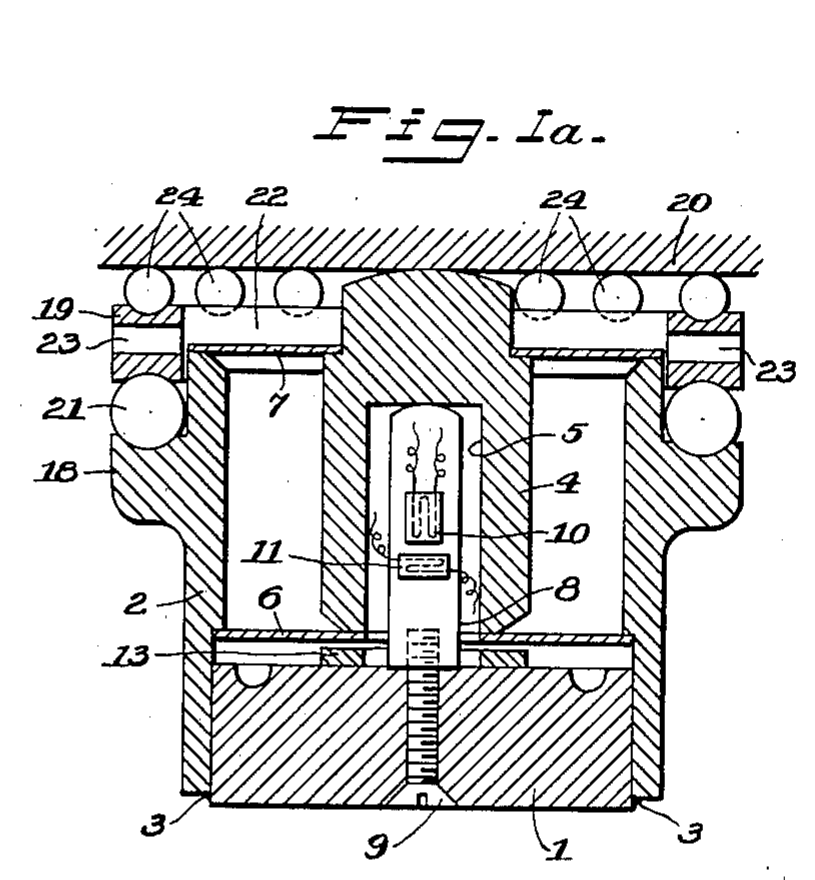

Overload Safety Ring for a Strain-Gauge Load Cell

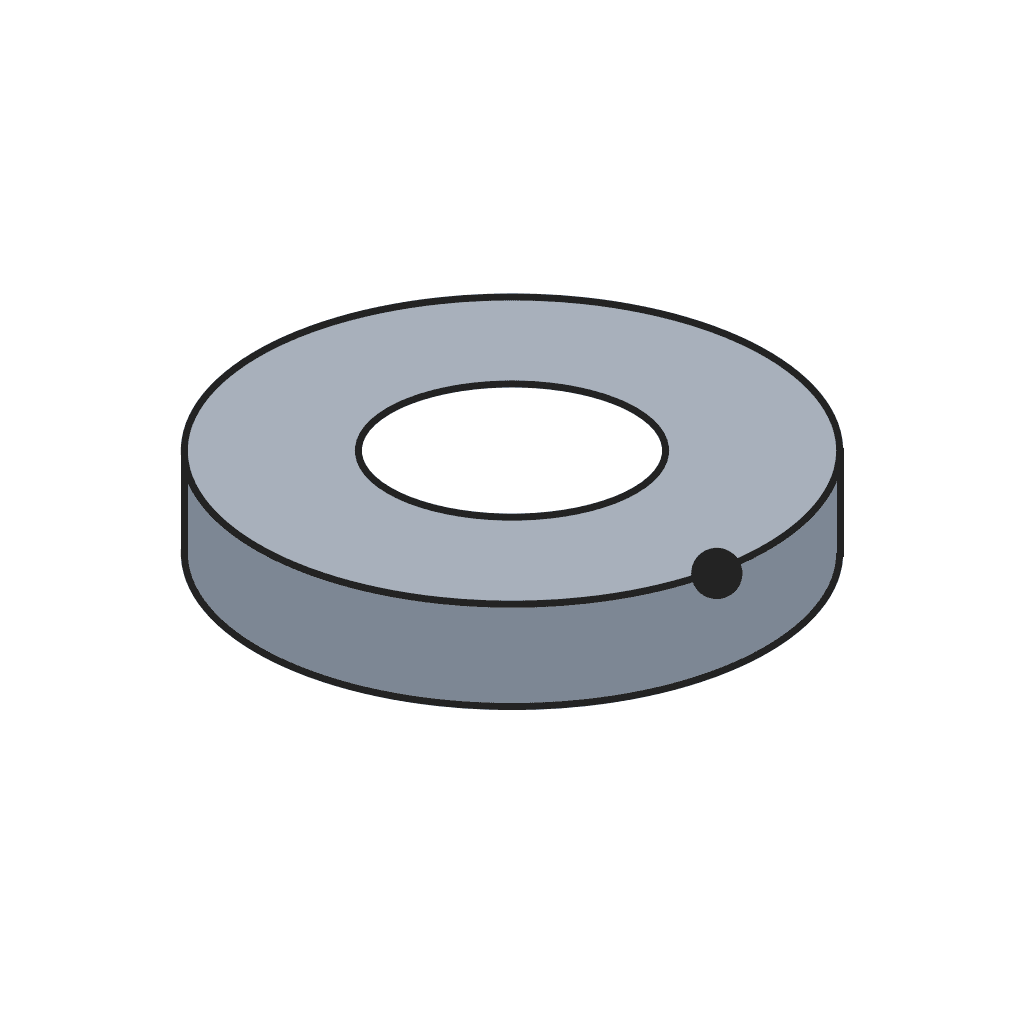

A ring under Ruge's piston, set a hair below it: past the safe load the piston lands on it and the excess goes straight to the base. The gauge leads pass through a hole in it.
Àárín
A few hours
Ìlànà
1
1
Watch: boring a hole on a lathe
Watch: boring a hole on a lathe
Boring a hole step by step on a metal lathe.
2
2
Turn and bore the ring
Turn and bore the ring
Turn a short length of round bar to fit inside the shell and bore it to clear the column.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ọ̀pá rírọ irin rírọ̀1 ẹyọÀwọn irinṣẹ́ tí a nílò:
Ayùn Irin
Ẹ̀rọ Ìyí Irin
Ọ̀pá gígé inú ihò
Òróró gígé3
3
Face to height, drill the lead hole
Face to height, drill the lead hole
Face it to height so the piston clears it by a small gap at full load. Drill a side hole for the gauge leads.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ Ìyí Irin
Ẹ̀rọ Ìlùkòkò Onídúró
Máíkírómítà4
4
Limits
Limits
Ruge's patent gives the part's shape and job but no material or size. Mild steel and silver-solder brazing are our choice; size it to the load you need. Lathe method after Palmateer, Elementary Machine Shop Practice (1918). The gap sets the overload point.
