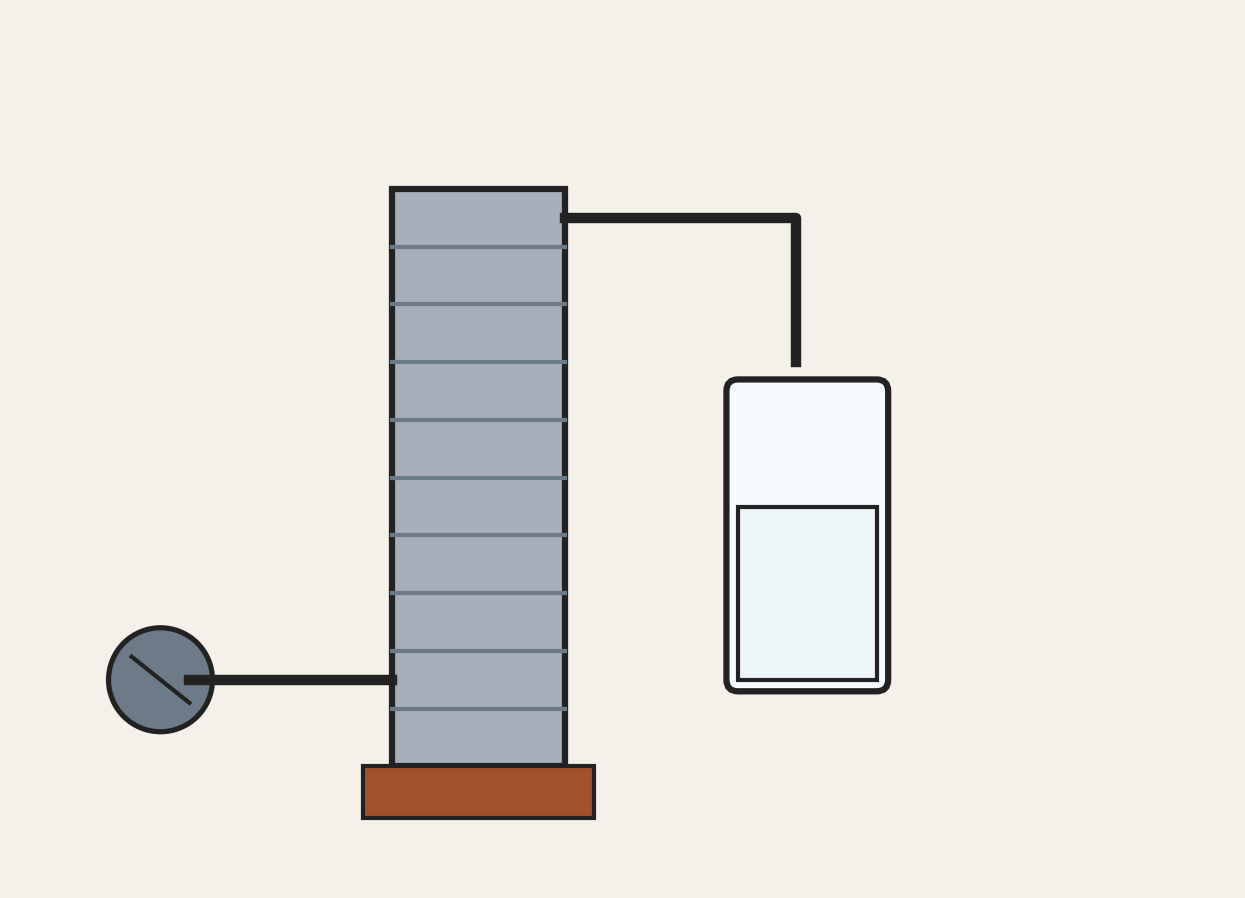

Refining Crude Glycerol to 99.5%
Fats and oils are triglycerides: glycerol joined to three fatty acids. Splitting them, by saponification with sodium hydroxide in soap making, by hydrolysis, or by transesterification in biodiesel making, frees the glycerol. That crude glycerol is of variable quality. It is refined in steps: activated carbon takes out organic impurities, alkali deals with glycerol esters that have not reacted, and ion exchange removes salts. Glycerol of more than 99.5% purity is then distilled in several stages under vacuum, because at normal pressure it boils at 290 °C.
Ilọsíwájú
Factory process
Ìlànà
1
1
Remove organic impurities
Remove organic impurities
Treat the crude glycerol with activated carbon to take out organic impurities.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Gilísẹ́rọ̀lù aláìmọ́1 as required
Èédú tí a mú ṣiṣẹ́ oníhóró1 as requiredÀwọn irinṣẹ́ tí a nílò:
Agba ìdásí2
2
Treat with alkali
Treat with alkali
Treat with alkali to deal with unreacted glycerol esters.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ẹ̀fun onídìí (sodium hydroxide)1 as requiredÀwọn irinṣẹ́ tí a nílò:
Agba ìdásí3
3
Remove salts
Remove salts
Pass the glycerol through ion exchange resin to remove salts.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Rẹ́sínì ìpààrọ̀ ion1 as required4
4
Vacuum distil
Vacuum distil
Distil in several stages under vacuum (glycerol boils at 290 °C at normal pressure) to reach more than 99.5% purity.
Àwọn irinṣẹ́ tí a nílò:

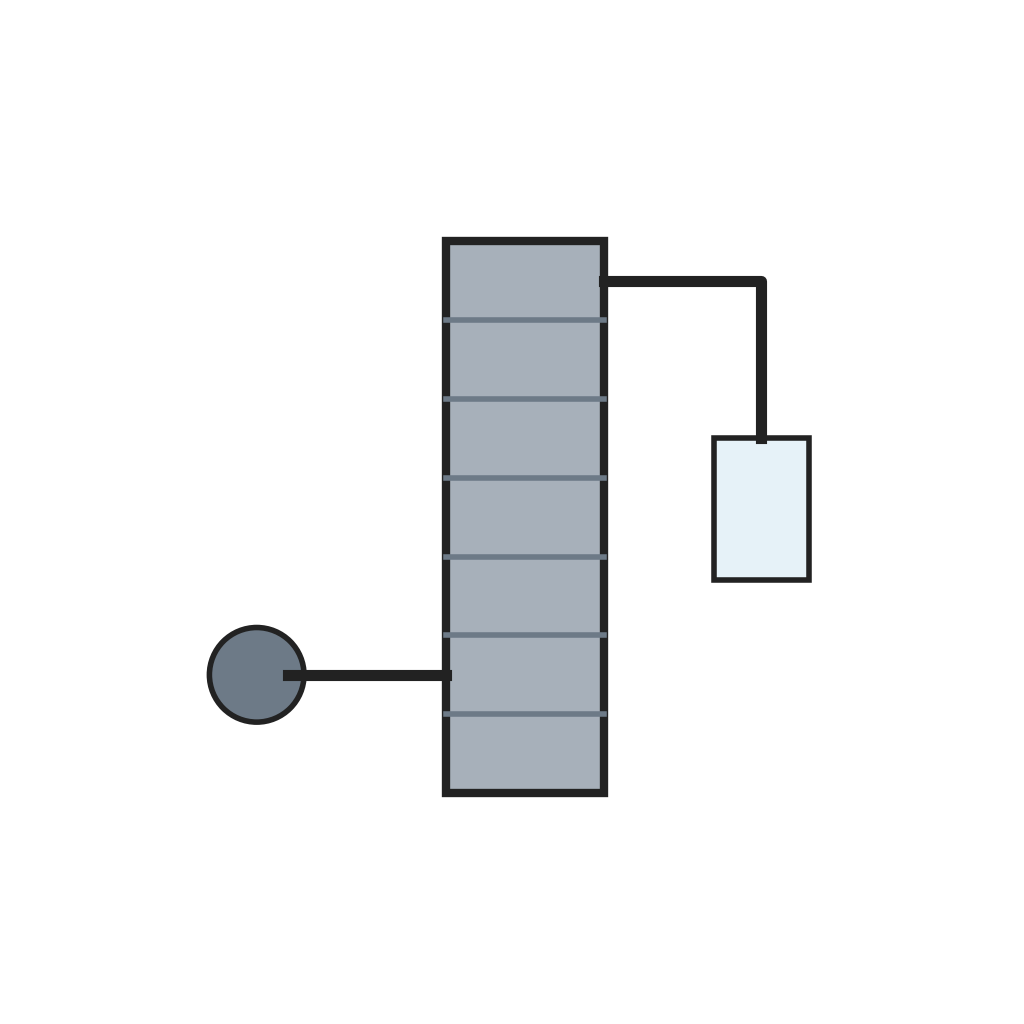

Òpó ìpọn òfo-afẹ́fẹ́Àwọn ohun-èlò
4- 1 as requiredÀyè
- 1 as requiredÀyè
- 1 as requiredÀyè
- 1 as requiredÀyè
