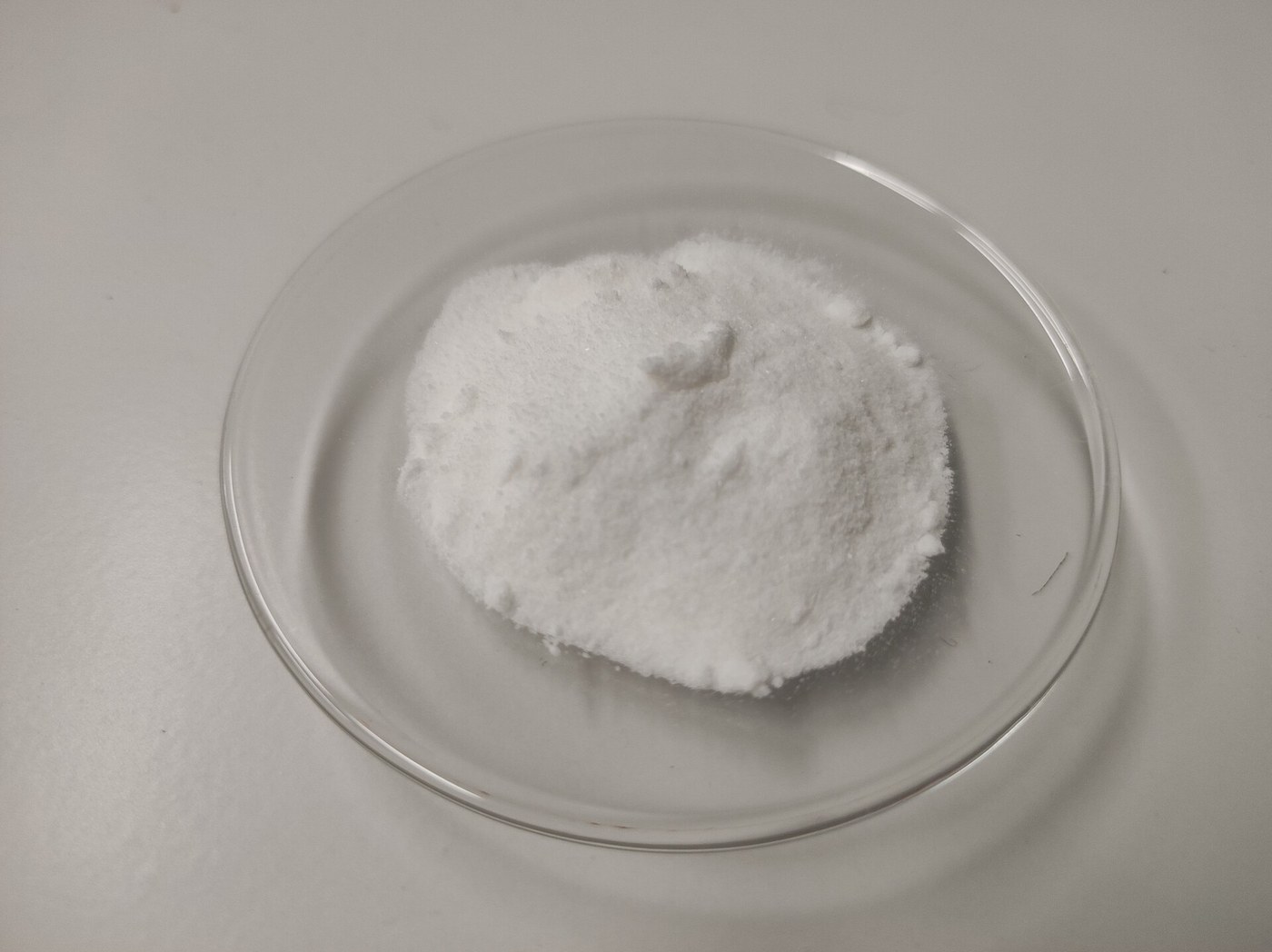

Sodium Bicarbonate from Soda Ash and Carbon Dioxide
Sodium bicarbonate, sold as baking soda, is made from sodium carbonate (soda ash): Na₂CO₃ + CO₂ + H₂O → 2 NaHCO₃. Soda ash is dissolved in water and treated with carbon dioxide, and sodium bicarbonate comes out of the solution as a solid. In 1846 John Dwight and Austin Church opened the first factory in the United States to make baking soda this way. Dry the product gently: from 80–100 °C sodium bicarbonate slowly breaks down again into sodium carbonate, water and carbon dioxide.
Àárín
Factory process
Ìlànà
1
1
Dissolve the soda ash
Dissolve the soda ash
Dissolve sodium carbonate in water.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Kábónéètì Sódíọ̀mù (eérú sódà)1 as required
Omi1 as requiredÀwọn irinṣẹ́ tí a nílò:
Precipitation Tank2
2
Treat with carbon dioxide
Treat with carbon dioxide
Pass carbon dioxide into the solution. Na₂CO₃ + CO₂ + H₂O → 2 NaHCO₃. Sodium bicarbonate precipitates as a solid.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Carbon Dioxide Gas1 as required3
3
Filter and dry
Filter and dry
Filter off the solid and dry it below 80 °C, where it starts to decompose back into sodium carbonate.
Àwọn irinṣẹ́ tí a nílò:
Filter Press

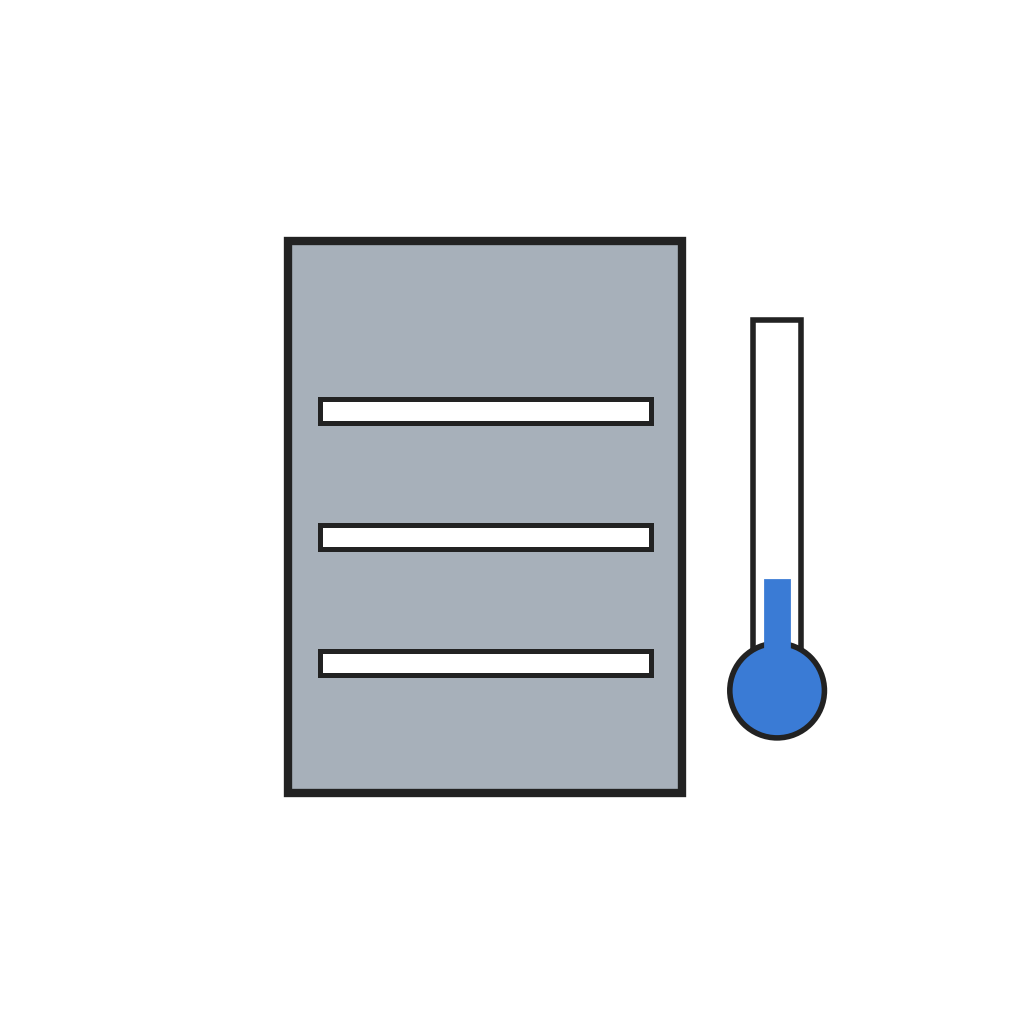

Low-Temperature DryerÀwọn ohun-èlò
3- 1 as requiredÀyè
- 1 as requiredÀyè
- 1 as requiredÀyè
Àwọn irinṣẹ́ tó nílò
3- Àyè
