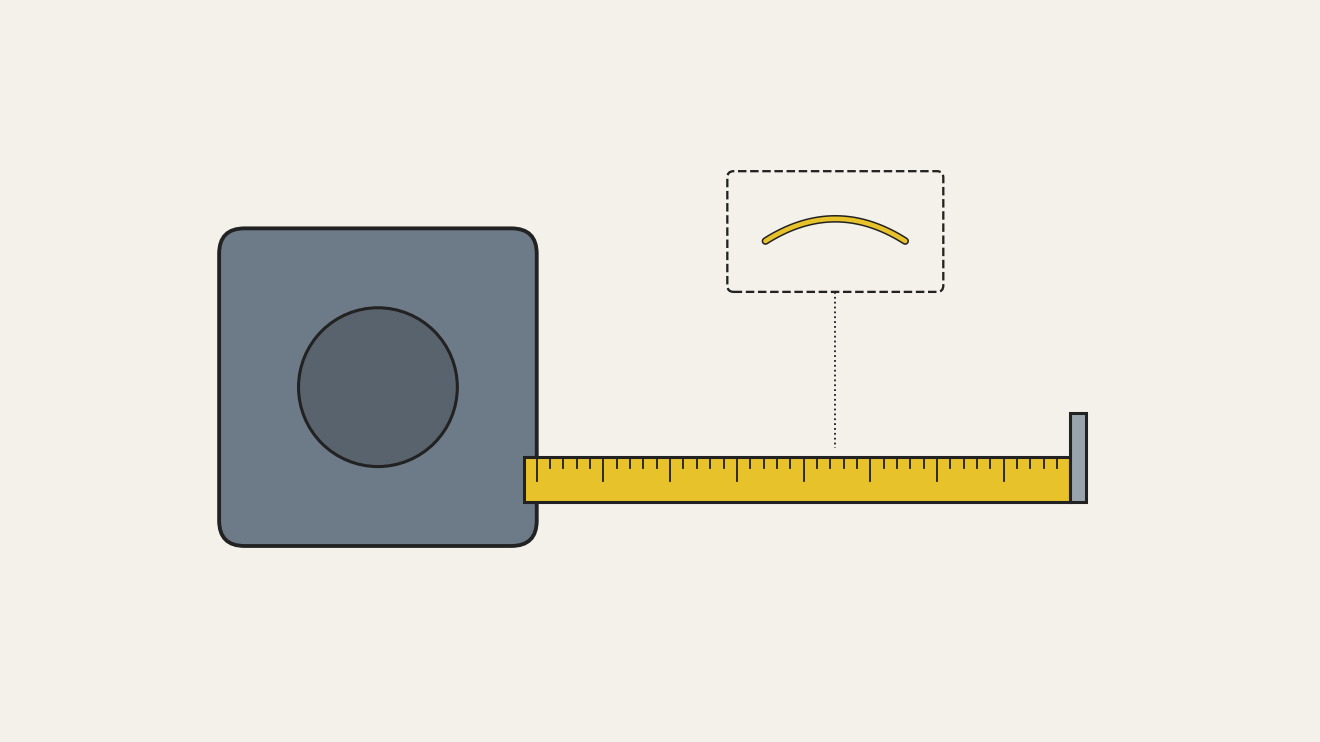

Tape Measure: Curved Steel Blade, Spring and Case
The blade of a tape measure is a thin metal ribbon with a curved, concavo-convex cross-section when it is out of the case, which keeps it stiff, but it lies flat as it winds into a coil inside. The ribbon is painted, printed with its graduations and then given a polymer coat against wear, applied by a roller and cured in an oven. An internal coil spring winds the blade back onto its reel. The end hook is riveted through oval holes so it can slide by its own thickness, giving the same reading whether you hook it on or push it against something. Cases have been moulded in ABS since 1963.
Ilọsíwájú
Continuous (industrial)
Ìlànà
1
1
Paint and print
Paint and print

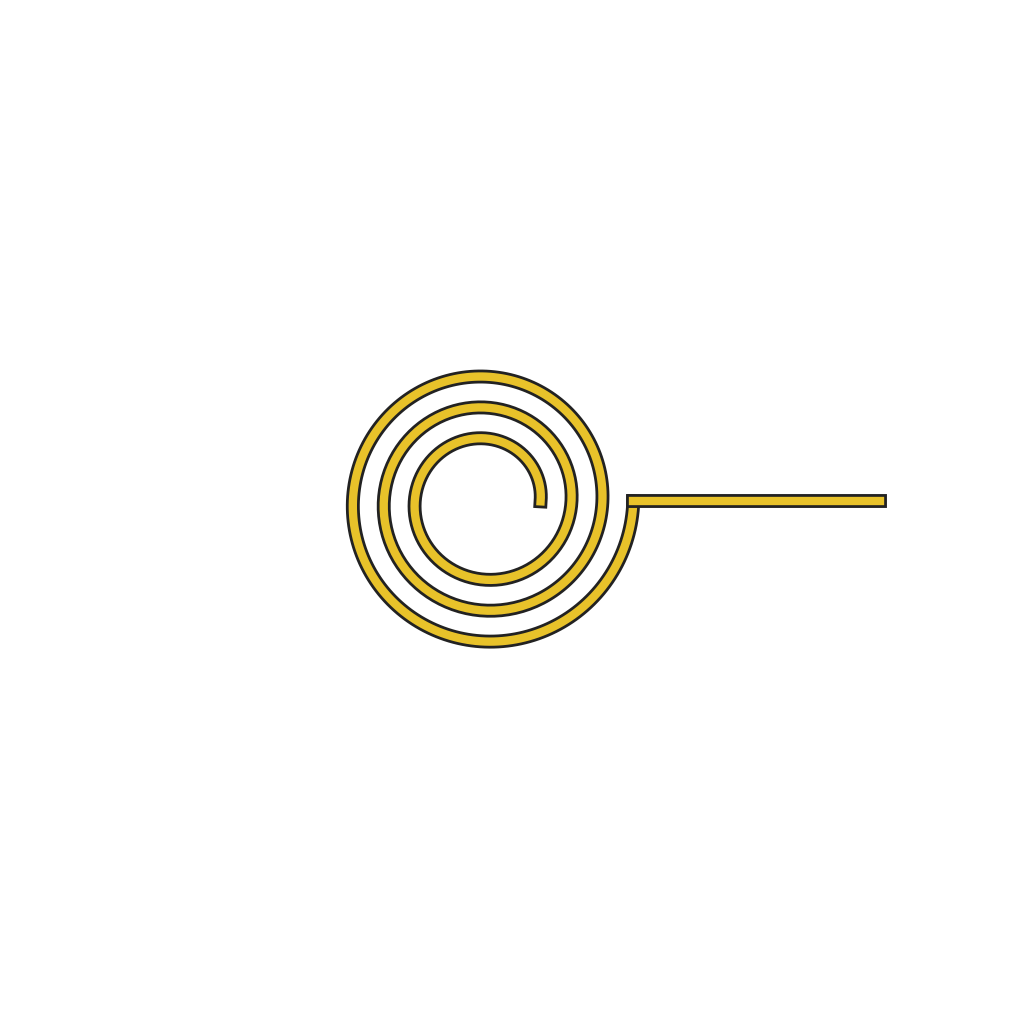

Paint the steel ribbon and print the length graduations on it.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ọ̀já irin fún okùn ìdíwọ̀n1 kgÀwọn irinṣẹ́ tí a nílò:
Ìlà ìtẹ̀wé àti ìbora okùn ìdíwọ̀n2
2
Coat and cure
Coat and cure
Pass the ribbon over a coating roller and through an oven to cure a polymer coat against wear.
Àwọn irinṣẹ́ tí a nílò:
Ìlà ìtẹ̀wé àti ìbora okùn ìdíwọ̀n3
3
Fit the hook
Fit the hook

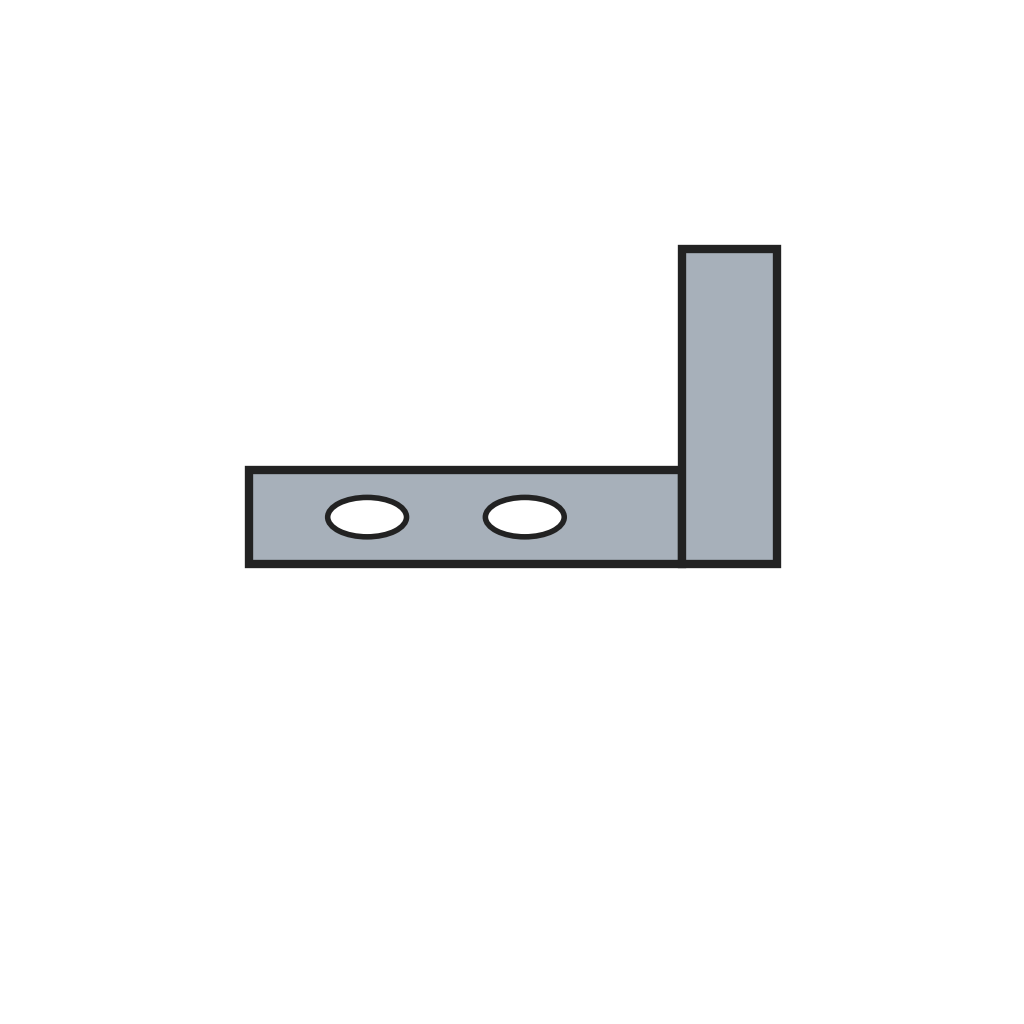

Rivet the end hook through oval holes so it slides by its own thickness.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìkọ́ orí okùn ìdíwọ̀n1 ẹyọ
Ìṣó irin2 ẹyọ4
4
Mould the case
Mould the case
Mould the case in ABS.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Àwọn kóró ABS0.1 kgÀwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìtẹ̀ ṣíṣu5
5
Assemble
Assemble

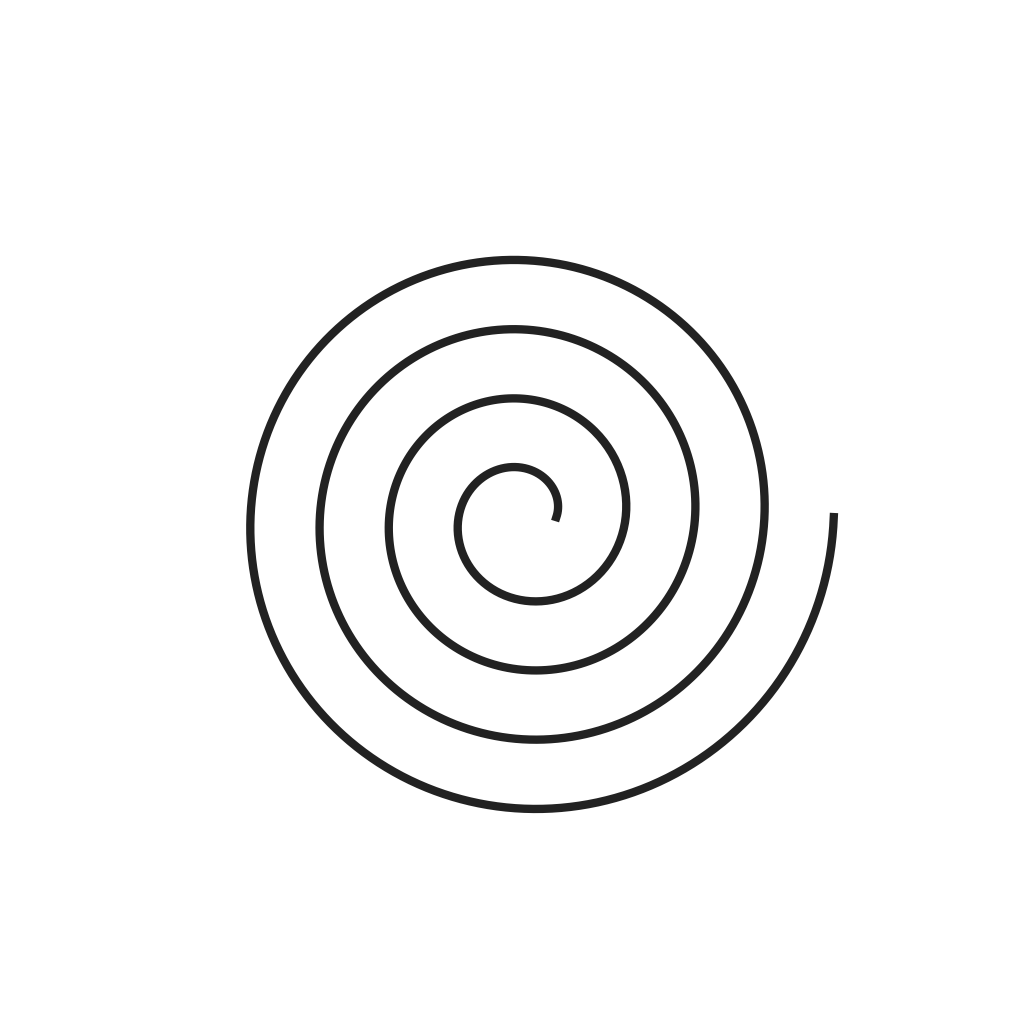

Wind the blade onto its reel with the coil spring that retracts it, set it in the case and close the case.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Sípíríńgì ìpadà okùn ìdíwọ̀n1 ẹyọÀwọn ohun-èlò
5- Àyè
- Àyè
- 2 ẹyọÀyè
- 0.1 kgÀyè
- Àyè
Àwọn irinṣẹ́ tó nílò
