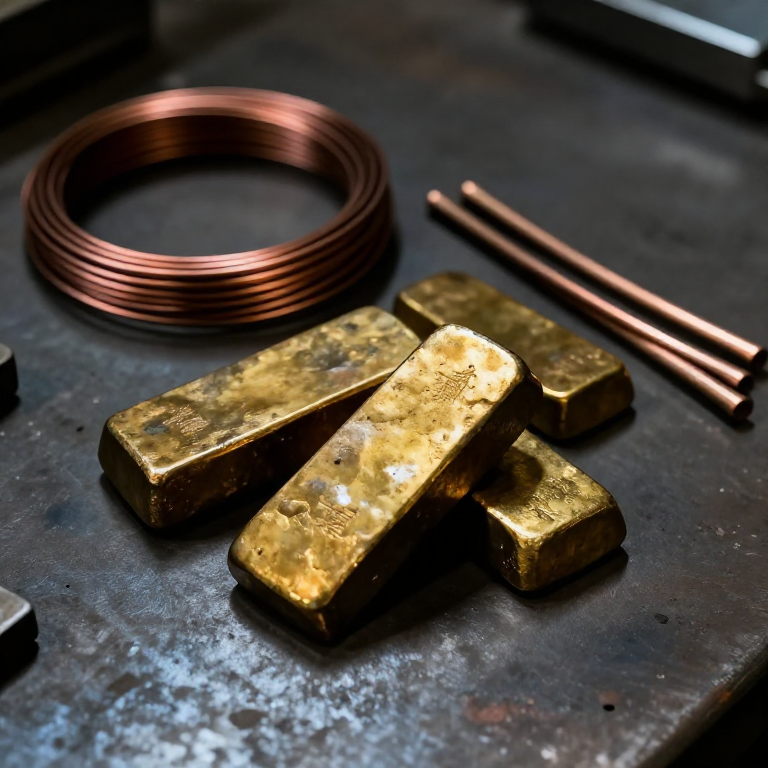

Tin Bronze Ingots, Wire and Rod
Bronze is copper alloyed with tin. Bronze Age smiths used about 10 % tin for castings and a softer 'mild' bronze of about 6 % tin that they hammered into sheet; modern bronze is about 88 % copper and 12 % tin. It melts at about 950 °C, depending on the mix. Melt the copper, stir in the tin, pour ingots; for wire and rod, use the 6 % alloy and draw it like copper, annealing often.
Àárín
A day
Ìlànà
1
1
Weigh the charge
Weigh the charge
Ń ṣí ìwé Jupyter…
2
2
Melt the copper
Melt the copper
Melt the weighed copper in a crucible in the charcoal forge with the air on, under a layer of charcoal to keep the air off the metal.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìṣù Bàbà940 g
Èédú10 kgÀwọn irinṣẹ́ tí a nílò:
Ìléru alágbẹ̀dẹ
Ìkòkò Amọ̀ Tí Ń Kojú Iná
Òǹwọ̀n ìwúwo
Aṣọ Ìdílé Awọ
Ìbọ̀wọ́ wẹ́lídìn
Gíláàsì ààbò3
3
Add the tin
Add the tin
Push the weighed tin under the melt with a dry iron rod and stir it in.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìdì tin60 gÀwọn irinṣẹ́ tí a nílò:
Ẹmú Ìkòkò Ìyọ́4
4
Pour ingots
Pour ingots
Lift the crucible with the tongs and pour into a warmed, dry ingot mould. Let it cool.
Àwọn irinṣẹ́ tí a nílò:
Ẹmú Ìkòkò Ìyọ́
Ìmọ̀ ìdà ìṣù irin5
5
Hammer and draw
Hammer and draw
Anneal a 6 % ingot at a dull red and quench, hammer it round, taper the end, and draw it through the drawplate with wax, annealing every two holes. Stop at rod or go on to wire.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìdí Oyin10 g
Omi5 lítàÀwọn irinṣẹ́ tí a nílò:
Ìdí Alágbẹ̀dẹ
Òòlù olórí bọ́ọ̀lù
Ọ̀pá Iná Pùróféènì
Bíríkì aládùúró-iná
Ẹmú alágbẹ̀dẹ
Àpótí ìtutù
Àkójọ Ìfá
Àwo ìfàokùn irin
Ẹmú ìfàgùn
Ìdìmú Tábìlì6
6
Measure
Measure
Measure the rod or wire and label it with its tin percentage.
Àwọn irinṣẹ́ tí a nílò:
Òṣùwọ̀n Kálípà Díjítà Ìnṣì 67
7
Troubleshooting
Troubleshooting
Bronze troubleshooting.
