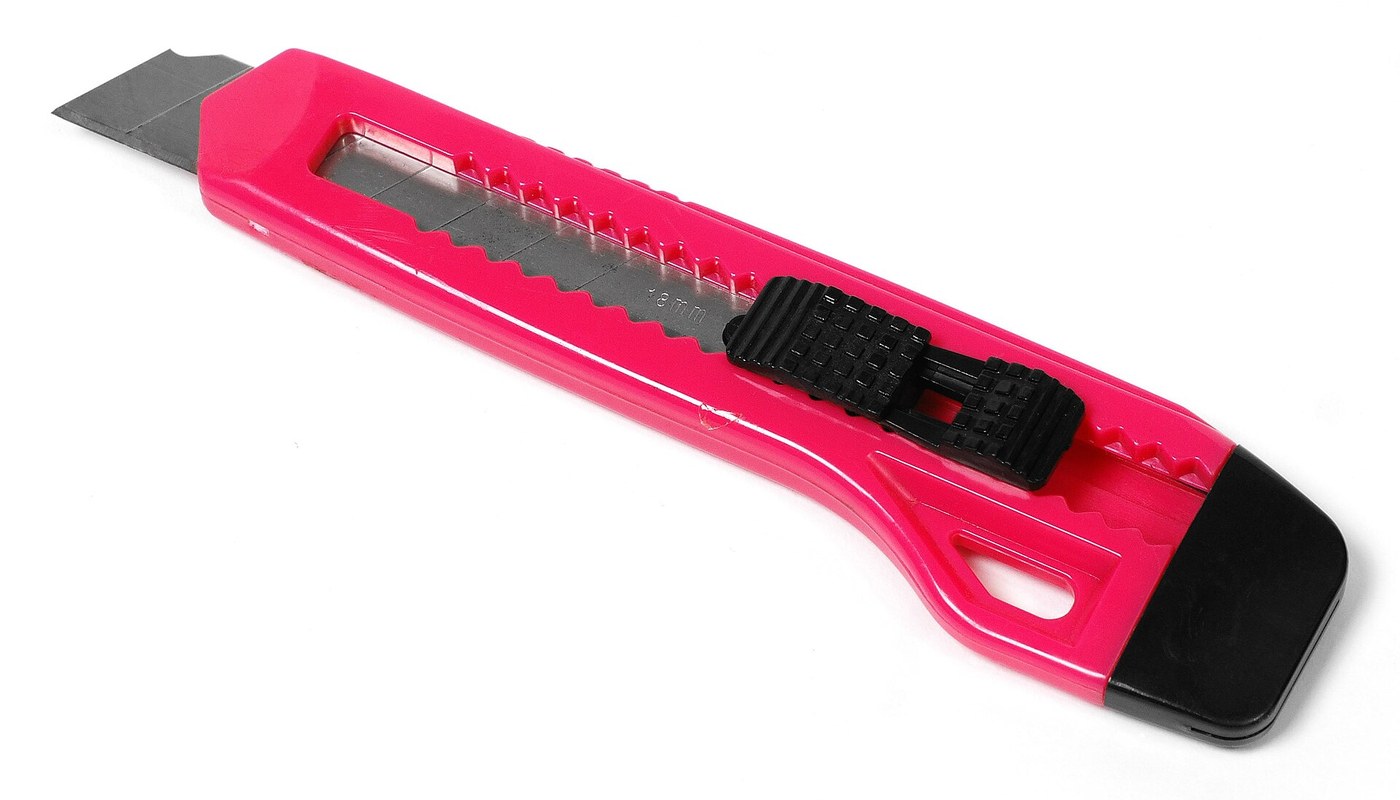

Utility Knife: Strip-Made Blades and a Moulded Handle

Utility knife blades are made from a coil of carbon steel strip. A punch press punches the notches along it, the strip is scored across where each blade will break off, and it is coiled again and hardened and tempered, in a vacuum furnace or in line, typically to about 58 Rockwell C. The hard strip is then ground, honed and stropped along one edge, and snapped at each score line into trapezoid blades. Snap-off blades use the same idea: the break comes at the score lines, where the metal is thinnest. The handle that holds the replaceable blade is die-cast metal or moulded plastic.
Ilọsíwájú
Continuous (industrial)

Ìlànà

1

Punch the strip

Run the carbon steel strip through a punch press to punch the notches at regular spacing.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Ọ̀já irin líle oníkábọ́ọ̀nùỌ̀já irin líle oníkábọ́ọ̀nù10 kg

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ ìtẹ̀ ìlu ihòẸ̀rọ ìtẹ̀ ìlu ihò
2

Score

Score the strip across at each blade's side edge: these lines are where it will later snap.

Àwọn irinṣẹ́ tí a nílò:

Àwọn rólà ìfà ìlà ọ̀jáÀwọn rólà ìfà ìlà ọ̀já
3

Harden and temper

Coil the strip and harden and temper it, to about 58 Rockwell C.

Àwọn irinṣẹ́ tí a nílò:

Ìléru ìmúle àti àtúnṣe ọ̀jáÌléru ìmúle àti àtúnṣe ọ̀já
4

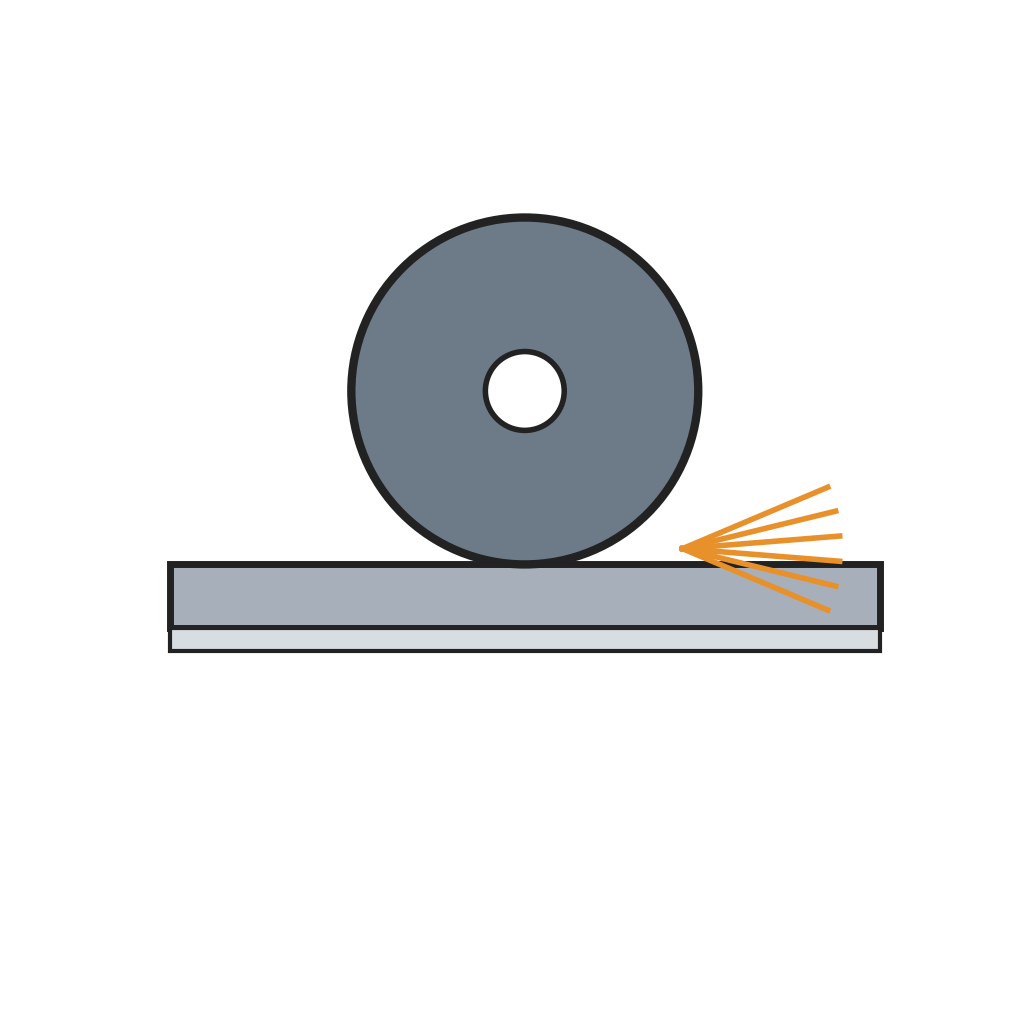

Grind the edge

Grind, hone and strop one side of the strip to a straight cutting edge.

Àwọn irinṣẹ́ tí a nílò:

Ìlà ìlọ̀ àti ìpọ́n ẹnu abẹÌlà ìlọ̀ àti ìpọ́n ẹnu abẹ
5

Snap into blades

Snap the strip at each score line into trapezoid blades.
6

Handle

Mould the handle that holds and retracts the blade, here in plastic.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Àwọn kóró ABSÀwọn kóró ABS0.1 kg

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ ìtẹ̀ ṣíṣuẸ̀rọ ìtẹ̀ ṣíṣu
