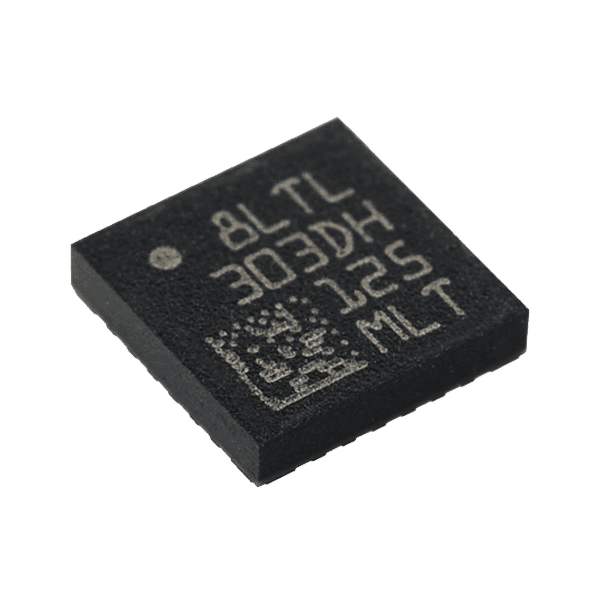

LSM303DLMTR - Tilt Compensated Compass

The LSM303DLMTR is a triple axis MEMS accelerometer combined with a triple axis magnetic sensor.
This arrangement allows for the LSM303 to perform 6D orientation detection.
You can communicate with the sensor using a simple I2C interface.
Analog supply voltage should be between 2.16 to 3.6VDC.

Features:

  • +- 2/4/8 g dynamically selectable full-scale
  • +-1.3 to +- 8.1 Gauss magnetic field full-scale
  • Digital supply voltage IOs: 1.8 V
  • 16-bit data out
  • I2C interface
  • Embedded self-test

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$7
Low stock — 1 left
LSM303DLMTR - Tilt Compensated Compass—
$7
