Huygens, 1659. The magic lantern was first described by the Dutch physicist Christiaan Huygens in 1659, and he had a working lantern by that November. He drew the working principles and — notably — already demonstrated the illusion of movement using glass slides. Athanasius Kircher had described a projection system close to a magic lantern in 1646, and credit is genuinely debated, but Huygens is generally regarded as the most probable creator of the device as such.

Two lenses, two jobs. This is the idea the build teaches. The condenser sits near the lamp and gathers widely-diverging light into a beam that passes evenly through the slide — it improves brightness and uniformity and contributes nothing to sharpness. The projection lens takes the illuminated slide and forms a real, magnified, inverted image on the wall. Every projector since, including the one in a cinema, keeps this division.

Why it inverts. Same reason as the camera obscura: rays cross as they pass through the lens, so top maps to bottom. Loading the slide upside down is the fix, and every lantern operator did it automatically.

What it was used for. From the start the lantern served entertainment, education, research and children's play. Travelling showmen carried them across Europe projecting biblical scenes, ghost stories and scientific demonstrations. The eighteenth-century phantasmagoria shows used hidden lanterns on rails, moving toward the screen to make projected ghosts appear to rush at the audience — the first special effect built on the fact that image size scales with distance, which is the thing you measure in step 12.

The line to cinema. Add a light source bright enough, a mechanism to change slides fast, and film in place of glass, and you have a film projector. The optical layout — lamp, reflector, condenser, image plane, projection lens — did not need to change. When a modern projector is described as having a "lamp house" and a "lens", those are magic lantern words.

Screen Projection

Blueprints (3)

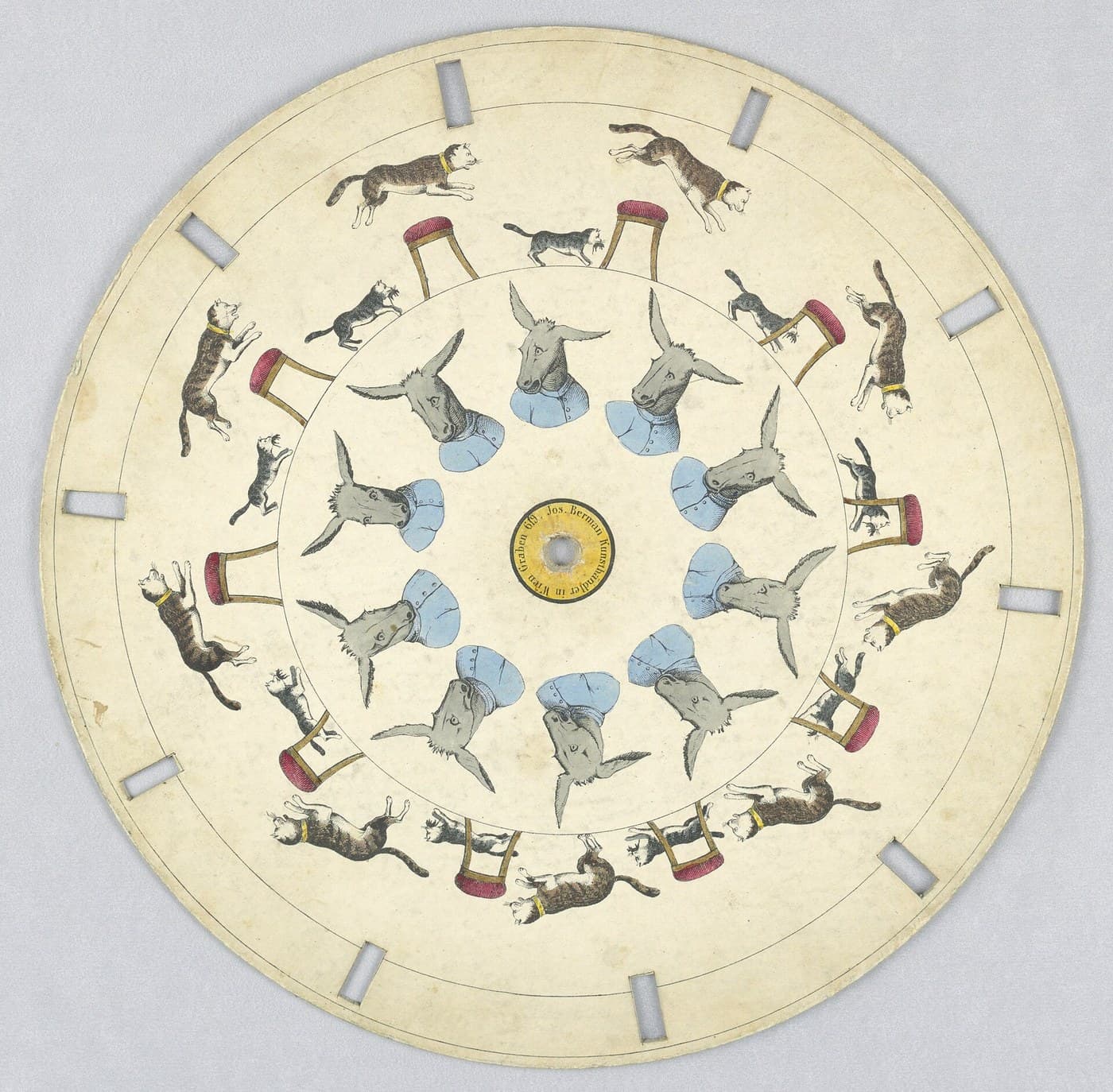

Phenakistoscope
