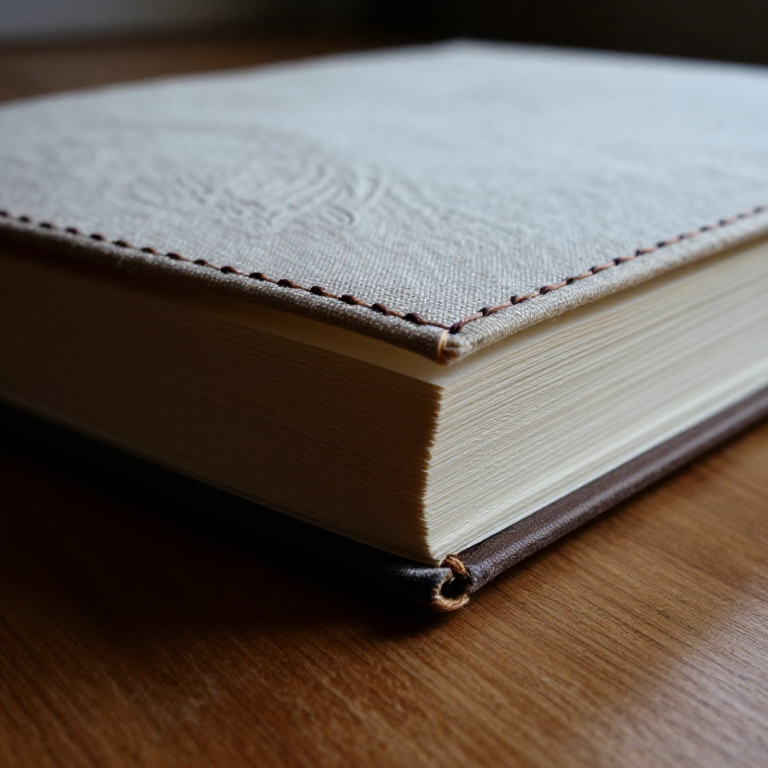

Binding a Coptic Stitch Journal — Exposed-Spine Chain Stitch Bookbinding

The Coptic stitch is the oldest form of book binding that uses a structure recognisable as a modern book — separate sections (signatures) of folded pages, sewn together through their spines. Developed by early Christians in Egypt around the 2nd-4th century CE, it requires no glue and no cover spine, leaving the stitching fully exposed as a decorative element. The chain stitch links each signature to the next and to the cover boards, creating a book that opens completely flat. This blueprint covers the basic two-needle Coptic link stitch — the foundation of all exposed-spine binding.

Beginner
2-3 hours

Instructions

1

Cut and fold the signatures

Cut paper sheets to twice the desired page width. Fold each sheet in half with a bone folder for a crisp crease. Nest 4-5 folded sheets inside each other to form a signature. Prepare 5-6 signatures for a standard journal.
2

Prepare the cover boards

Cut two pieces of bookboard or heavy cardboard slightly larger than the folded page size — about 3 mm overhang on the top, bottom, and fore-edge. This overhang protects the pages.

Materials for this step:

BookboardBookboard2 pieces
3

Mark the sewing stations

Using a ruler and pencil, mark 3-5 evenly spaced points along the spine edge of one signature, about 1.5 cm from top and bottom edges. Transfer these marks to all signatures by stacking them and marking through. Mark the same positions on both cover boards along the spine edge.
4

Punch the sewing holes

Open each signature to the centre fold and punch holes through from inside at each marked station using an awl. For the cover boards, punch holes about 5 mm from the spine edge at each station.

Tools needed:

AwlAwl
5

Cut and wax the thread

Cut a length of linen or waxed thread approximately 3 times the spine height multiplied by the number of signatures. Thread a bookbinding needle. If using unwaxed linen thread, draw it through a block of beeswax to reduce tangling and add grip.

Materials for this step:

Waxed Linen ThreadWaxed Linen Thread3 meters

Tools needed:

Sewing Needle (large)Sewing Needle (large)
6

Attach the first signature to the back cover

Place the back cover board with the first signature on top, aligning the sewing holes. Sew from inside the signature out through the first hole, then through the corresponding cover hole from outside to inside, loop around the board edge, and return through the same cover hole. Continue to the next station. This kettle stitch anchors the signature to the board.
7

Add the second signature with chain stitch

Place the second signature on top of the first, aligned. Sew into the second signature at the last station, then back out at the next station. Before entering the first signature below, pass the needle under the stitch linking the first signature to the cover, creating a chain link. Pull snug. Continue across all stations.
8

Continue adding signatures

Repeat the chain stitch pattern for each new signature. At each station, the needle goes out of the current signature, hooks under the stitch of the previous signature, then re-enters the current signature at the next station. Keep consistent tension — tight enough to hold but not so tight that the paper tears.
9

Attach the front cover board

After sewing the last signature, place the front cover board on top. Sew through the cover holes with the same looping technique used for the back cover — out through the signature, through the cover hole, around the board edge, back through the cover hole, and into the next signature station.
10

Tie off the thread

After completing the last station on the front cover, pass the needle under a nearby stitch and tie a square knot. Pass the needle through the signature one more time, pull the knot inside the fold, and trim the excess thread. The knot is hidden inside the spine.
11

Cover the boards (optional)

For a finished look, glue decorative paper or bookcloth to the outside of each cover board. Wrap the material around the edges by about 2 cm and glue to the inside. Paste a lining sheet inside each cover to hide the turn-ins. Allow to dry under light pressure.
12

Press and finish

Place the completed journal under a weighted board overnight to set the shape. The Coptic stitch binding allows the book to open completely flat at any page — the exposed chain stitching along the spine is both structural and decorative.

Materials

2

Tools Required

2
