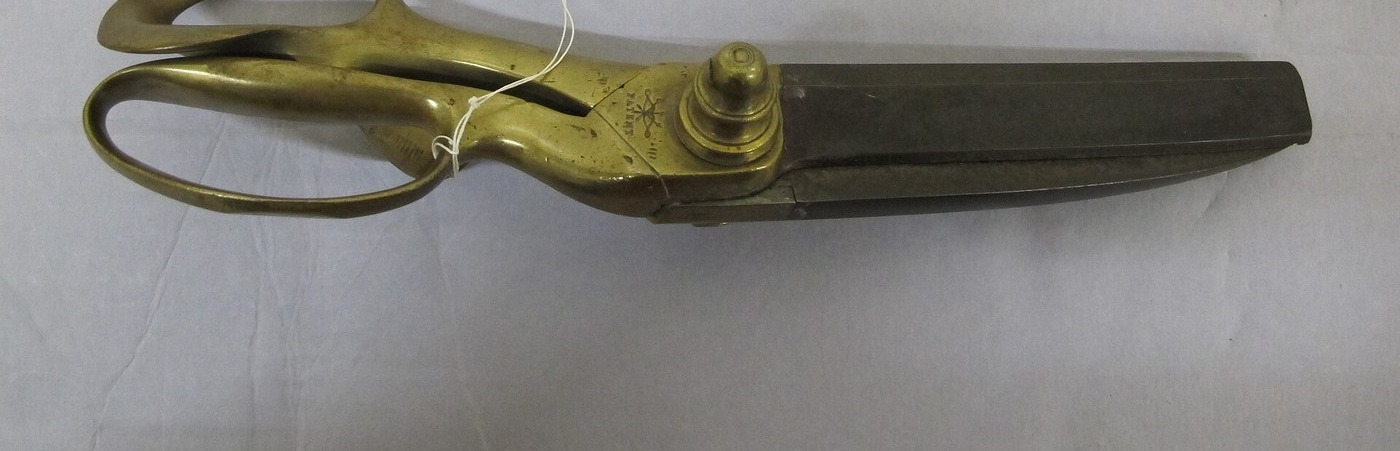

Scissors: Forged, Ground Hollow and Set
As the Sheffield cutlery trade made them, each scissor blade and its bow (finger loop) is forged from steel: a hole is punched through the flattened rod and opened over the point of a small beaked anvil to form the bow. Die-forging under a heavy stamp, with the surplus rim sheared off in a fly-press, was replacing hand forging by 1913. The blades are annealed, filed and drilled for the rivet, then ground: each is hollow on its inner face, concave from rivet to point, and given a slight twist toward the other so the edges meet along their whole length. The pair is fitted, wound with iron wire, hardened, reground and polished, and finally riveted together and set.
Advanced
Works process (early 1900s)
Instructions
1
1
Forge the blades
Forge the blades
Forge each blade and shank; punch a hole through the flattened rod and open it over the beaked anvil to form the bow.
Materials for this step:
Flat Tool Steel Bar1 pieceTools needed:
Blacksmith Forge
Anvil
Beak Anvil
Forge Hammer2
2
Anneal, file and drill
Anneal, file and drill
Anneal the blades instead of hardening them; file the shanks and bows to shape, square the joint and bore the rivet hole.
Tools needed:
Metal File
Drill Press3
3
Grind
Grind
Grind each blade hollow from back to edge, concave from rivet to point, with a slight twist toward its partner.
Tools needed:
Grindstone4
4
Fit and harden
Fit and harden
Fit the pair, wind them from the points upward with iron wire, take out the rivet and harden the blades.
Materials for this step:
Steel Wire0.5 mTools needed:
Blacksmith Forge
Quench Bucket5
5
Finish and set
Finish and set
Grind, glaze and polish the bows and shanks again and burnish them; rivet the blades together and set them so the edges meet along their length.
Materials for this step:
Steel Rivets1 pieceTools needed:
Grindstone
Emery Polishing LapMaterials
