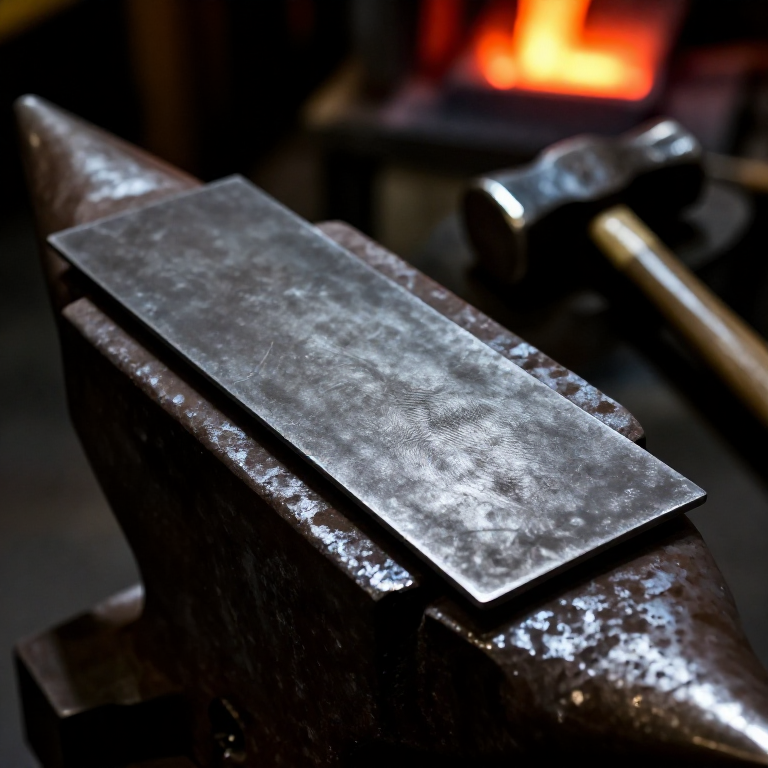

Mild Steel Plate and Sheet Hammered from a Billet

Before sheet mills, iron plate was hammered out hot, and thin sheet was hammered thinner still. A billet from a mild steel ingot is spread wide with the cross peen and smoothed with the flatter: thick results are plate, thin ones sheet. By hand, sheet much thinner than about 1.5 mm is very hard to keep even; measure what you get. Work at yellow heat and return to the fire at red, as for bar stock.
Advanced
A day

Instructions

1

Billets and heats

Cutting billets and working at the right heat.
2

Spread across

Heat a billet to yellow and strike across it with the cross peen, in rows, to widen it; then along it to lengthen. Turn it over each heat.

Materials for this step:

Steel IngotSteel Ingot3 kg
Charcoal - LumpCharcoal - Lump10 kg

Tools needed:

Blacksmith ForgeBlacksmith Forge
Cross Peen HammerCross Peen Hammer
Blacksmith TongsBlacksmith Tongs
AnvilAnvil
Leather ApronLeather Apron
Welding GlovesWelding Gloves
Safety GlassesSafety Glasses
Ear Protection MuffsEar Protection Muffs
3

Flatten

Lay the flatter on it and strike with the sledgehammer to take out the peen marks.

Tools needed:

FlatterFlatter
SledgehammerSledgehammer
4

Plate or sheet

Stop at the thickness you need for plate. For sheet, keep thinning with lighter blows; thin steel loses heat fast, so take short heats.

Tools needed:

Blacksmith HammerBlacksmith Hammer
Digital Caliper 6-InchDigital Caliper 6-Inch
5

Level and trim

At a low red heat, level it against the anvil face, check with the straightedge, and let it cool in air. Cut the ragged edges off on the hardy and file them.

Tools needed:

Blacksmith HammerBlacksmith Hammer
StraightedgeStraightedge
Hot Cut HardyHot Cut Hardy
File SetFile Set
6

Clean and measure

Wire-brush the scale off and measure the thickness at several points.

Tools needed:

Wire Brush SetWire Brush Set
Digital Caliper 6-InchDigital Caliper 6-Inch
7

Troubleshooting

Plate forging troubleshooting.
