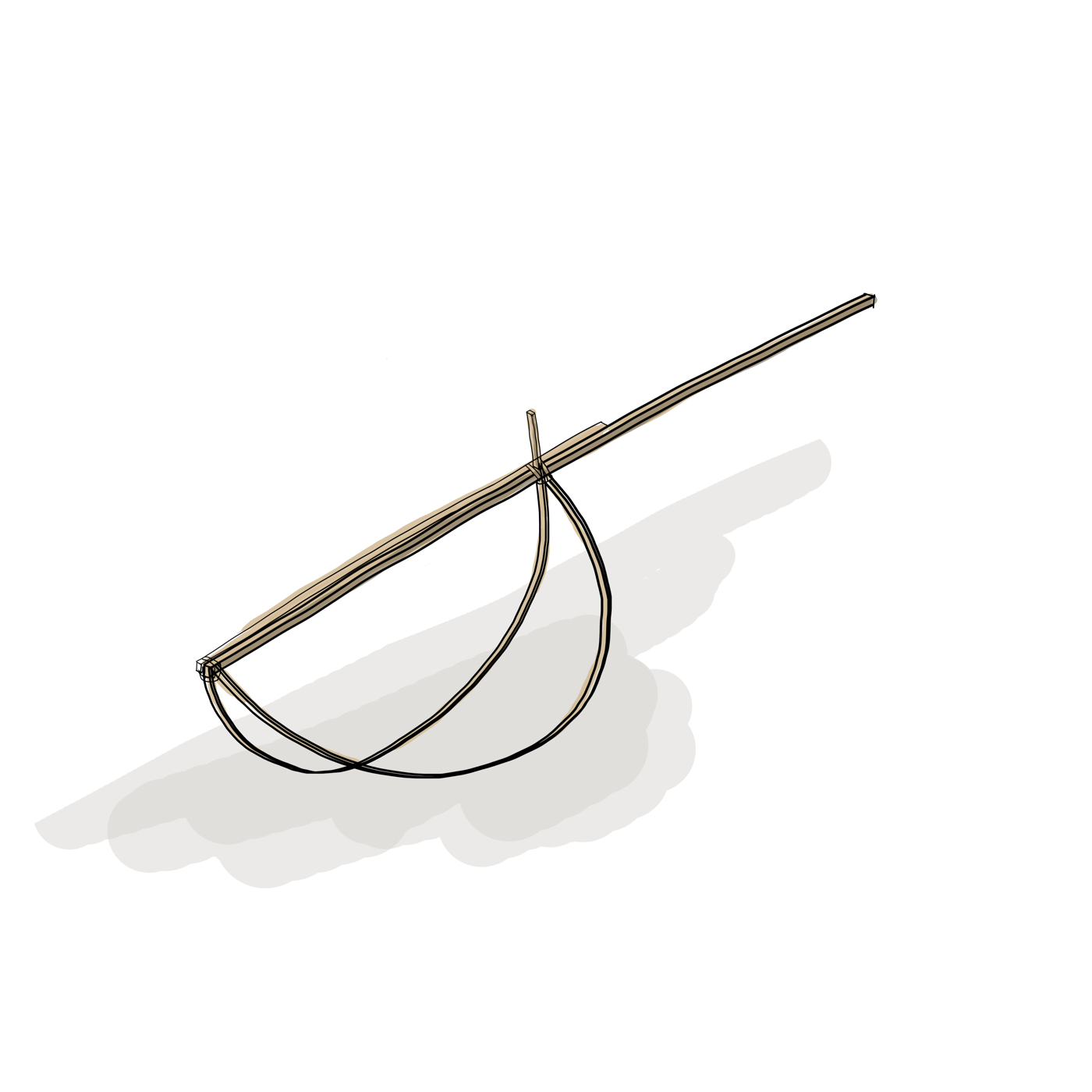

Kwian Mai Tok (Bamboo-Strip Push Cart) — Two 50 cm Bamboo Strips Bent into Half-Circles and Tied into the Folded End of a 1.5 m Bamboo Pole, 5-10 cm Apart; Pushed Along in a Race

เกวียนไม้ตอก (kwian mai tok, the bamboo-strip cart) is a Thai folk toy made from bamboo: bamboo strips form a frame like an ox-cart. The curves of the strips act as the wheels, and the bamboo pole is held in the hand to push it along. This blueprint makes a real kwian mai tok to the sizes in the source.
Beginner
About 1-2 hours

Instructions

1

Real sizes

Loading Jupyter Notebook...
2

Running toys, before it

The tao wing runs on its own with a rubber band; the kwian mai tok is pushed along by its pole.
3

Read from the source

"The curves of the two bamboo strips act as the cart's wheels, and the bamboo pole is for holding in the hand." (Sirindhorn Anthropology Centre, author not named, CC BY 4.0)
4

Strips and pole

Cut bamboo about 50 cm long and shave 2 strips about 3 mm thick and 5 mm wide. Take bamboo about 1.5 metres long for the pole and notch the wood with a knife over about 1-2 cm so the short end can fold down parallel to the long part without breaking.
Step 4 - Image 1

Materials for this step:

Bamboo PolesBamboo Poles1 piece

Tools needed:

KnifeKnife
5

Insert and tie the first ends

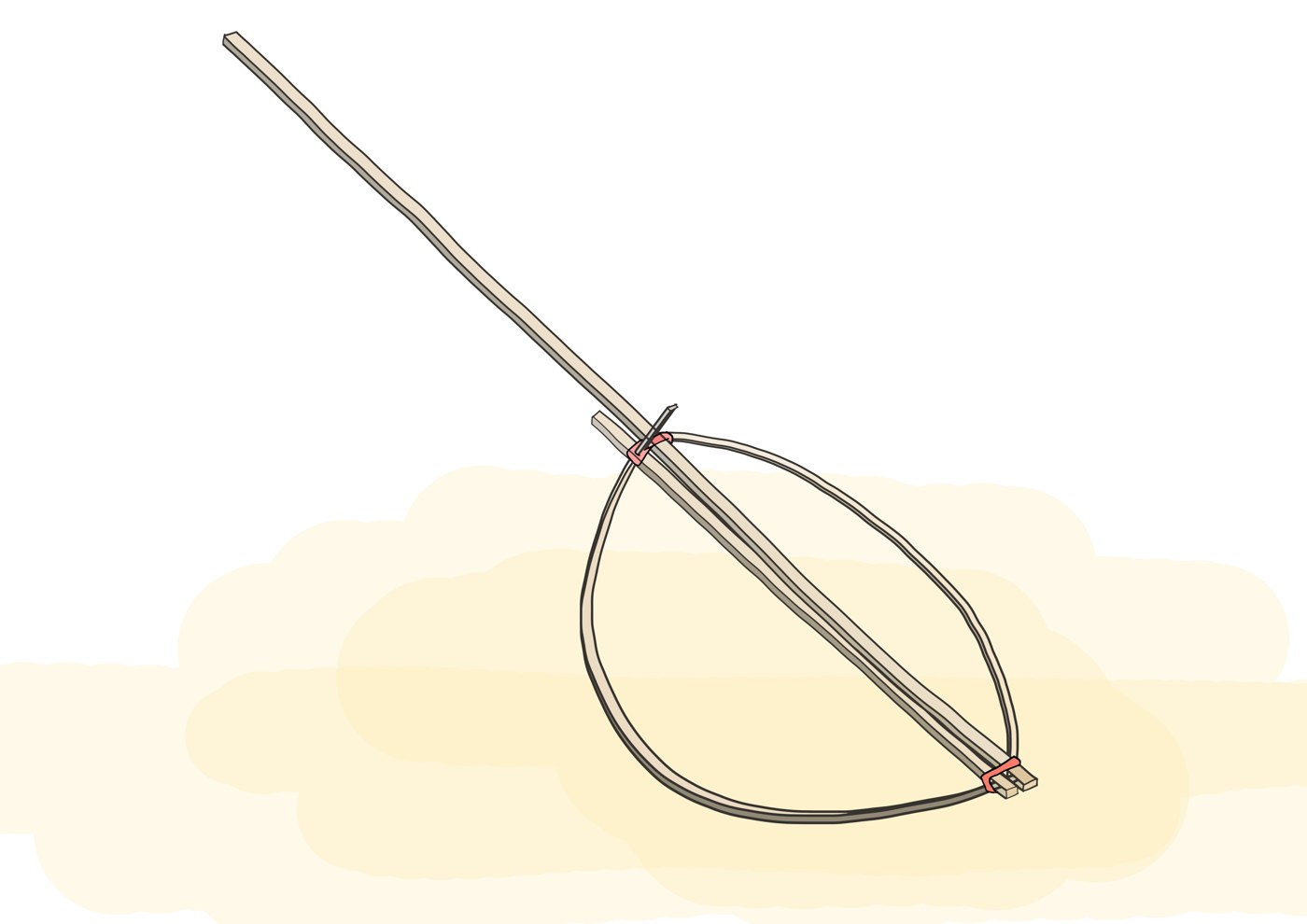

Push one end of each strip into the notched fold, at right angles to the pole. Fold the short part down along the long part, enclosing the ends of the strips, and tie the strips to the pole tightly with string, using the string to keep the two strips apart.
Step 5 - Image 1

Materials for this step:

StringString1 piece
6

Bend into wheels

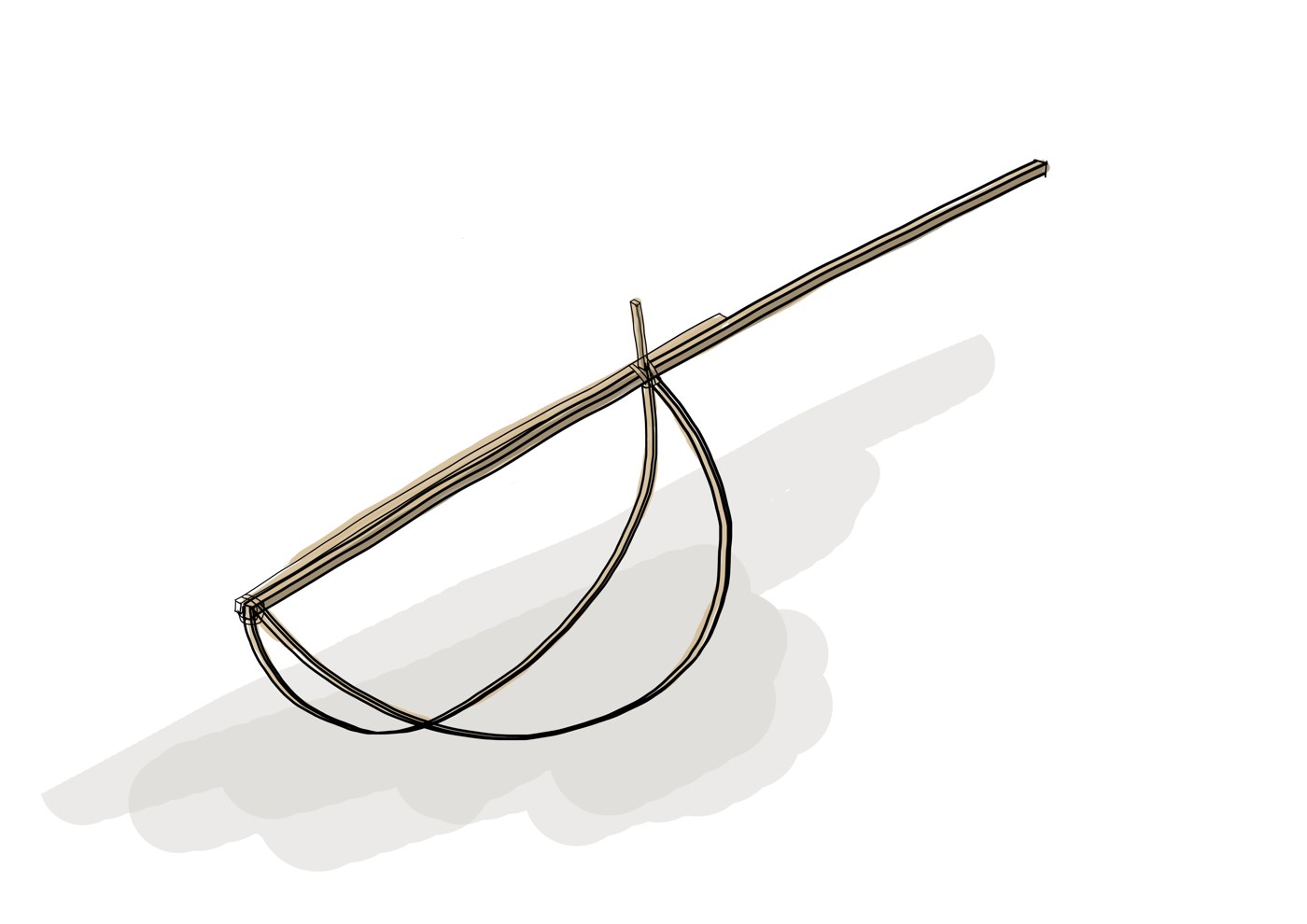

Bend both strips into half-circles, push their other ends in between the folded parts of the pole and tie tightly with string. Set the two curves about 5-10 cm apart.
Step 6 - Image 1
7

Real images

Drawings of the kwian mai tok (Sirindhorn Anthropology Centre, author not named, CC BY 4.0)
Step 7 - Image 1
Step 7 - Image 2
Step 7 - Image 3
8

How to play

Hold the pole and push the cart forward in a race; whoever reaches the finish line first wins.
Step 8 - Image 1
9

Troubleshooting

Troubleshooting the kwian mai tok.

Flow

Loading...
10

History and limits

The kwian mai tok is a Thai folk toy made from bamboo. Take care with the knife when shaving and notching. Source: Sirindhorn Anthropology Centre, Traditional Objects of Everyday Use database, "เกวียนไม้ตอก", author not named (CC BY 4.0 licence). **Limits** The source says to shave the pole to about 30 cm wide, but the drawings show a slender pole. The illustrations are drawings.
