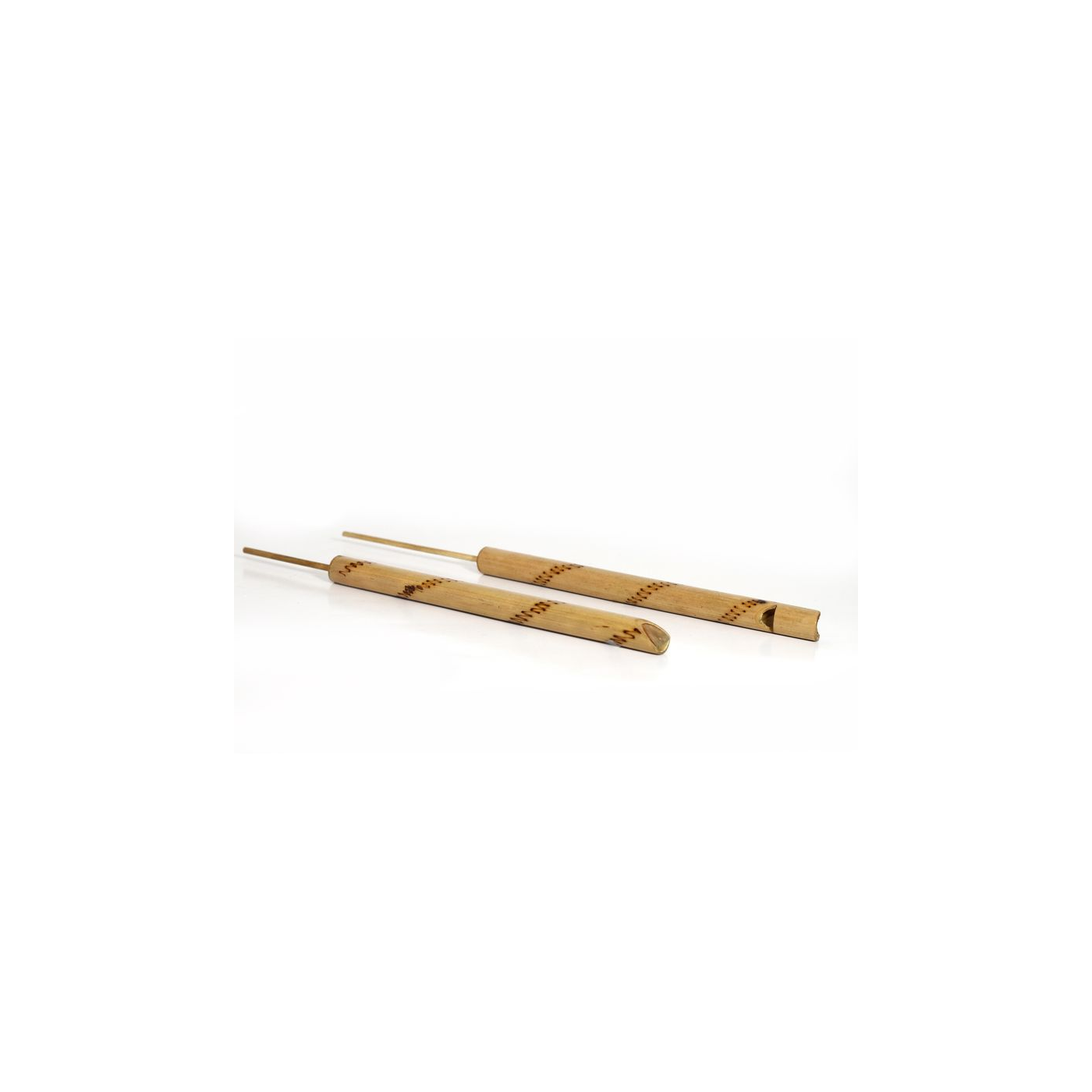

Bird-call pipe (bird flute) — bamboo 1-1.5 × 20 cm, mouthpiece slanted at 45 degrees, triangular air vent 0.5 cm, slide rod 20 cm, pushing and pulling the rod in and out produces high and low pitches resembling birds.
The bird-call pipe (bird flute) resembles a pipe in shape and is made of bamboo. Blowing it imitates many bird calls; pulling the rod in and out produces high and low pitches.
This blueprint makes a real bird-call pipe according to the dimensions in the source.
Intermediate
About 1-2 hours
Instructions
1
1
Actual size
Actual size
Loading Jupyter Notebook...
2
2
Previous bamboo wind instrument
Previous bamboo wind instrument
Jing Nong blown and plucked; the bird-sound pi flute blown and the stem shifted to change the tone.
3
3
Read from the source
Read from the source
"Blow air into the angled head end of the wooden piece with your mouth, while the other hand pulls the wooden slide rod in and out, producing alternating high and low pitches similar to bird sounds." (Sirindhorn Anthropology Centre, author not specified, CC BY 4.0)
4
4

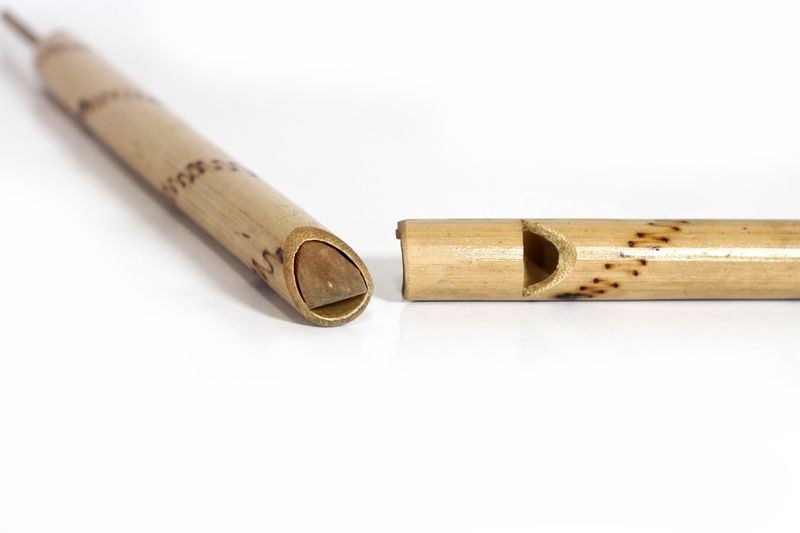

Pi (flute mouthpiece)
Pi (flute mouthpiece)
Cut a small bamboo stick, about 1-1.5 cm in diameter and 20 cm long. Cut the front end at a 45-degree angle, measured about 3 cm from the tip. Cut a triangular notch about 0.5 cm to let the air out.

Materials for this step:
Bamboo Poles1 pieceTools needed:
Knife5
5
Stopper and cleaning rod
Stopper and cleaning rod
Carve a soft hardwood stopper to fit the pipe body, for plugging the head and tail. Carve another bamboo rod about 20 cm long into a round shape, attached to the tail stopper as the cleaning rod. The head stopper has an angled cross-section to fit the tube body, leaving a groove on top for air to enter (similar to a whistle), then secure with glue.

Materials for this step:
Wood Glue1 piece6
6
Assemble the plunger rod
Assemble the plunger rod
Insert the stopper attached to the plunger rod into the rear opening, close the rear opening with a thin wooden board, and drill a hole in the center so the plunger rod can be pulled in and out smoothly without coming loose.

7
7

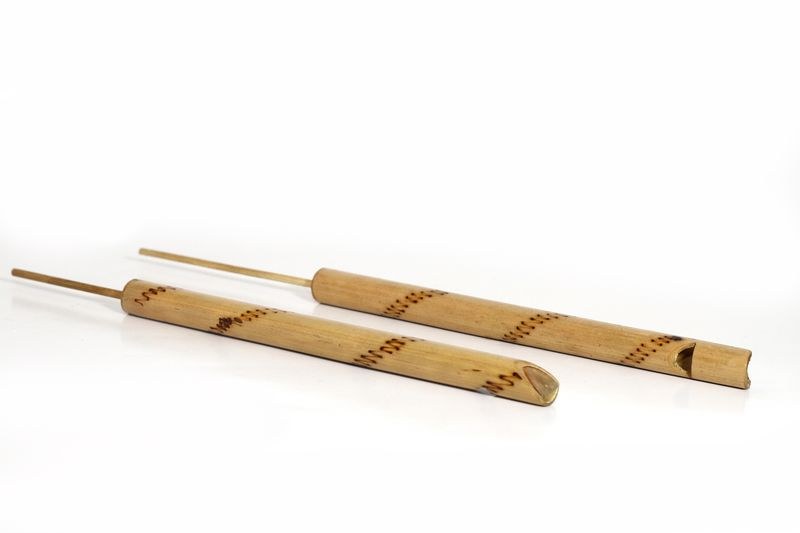

Actual image
Actual image
Actual image of the pi (reed instrument) and bird sound (Sirindhorn Anthropology Center, author not specified, CC BY 4.0)


8
8
How to play
How to play
Blow air diagonally while pulling the slide in and out with the other hand, producing alternating high and low tones like a bird's call.

9
9
Troubleshooting
Troubleshooting
Bird Sound Flute Troubleshooting
Flow
Loading...
10
10
History and Limitations
History and Limitations
Bird-call flute that imitates several bird sounds. Be careful with the knife when whittling and cutting.
