Potter's Kick Wheel

Cut four legs 750 mm long and eight rails 500 mm long from 70 x 70 mm timber. 750 mm puts the wheel head at a comfortable seated working height for most adults.

Bolt the legs and rails into a rigid box with rails at both the top and the bottom. Bolts, not screws — a kick wheel takes a sideways impact several times a minute for years and screwed joints work loose.

Measure both diagonals of the frame — equal means square. Level it in both directions. A shaft that is not vertical will bind in its bearings and the head will wobble.

Build a circular mould 600 mm across and 80 mm deep from plywood, with a 40 mm hole dead centre for the shaft. Centre matters more than anything: an off-centre flywheel shakes the whole frame at speed.

Fill the mould with concrete around the shaft, tamping to drive out air pockets. A 600 mm x 80 mm disc lands around 50 kg. Air voids are both a weakness and a source of imbalance.

Keep the disc damp and covered for 7 days. Concrete gains most of its strength in the first week, and a flywheel that cracks in use at speed is genuinely dangerous.

Mount pillow block bearings on the top and bottom rails, exactly in line with each other, and run the steel shaft through both. Any misalignment between the two shows up immediately as drag and noise.

Fix the flywheel on the shaft 150 mm above the floor — high enough to swing a foot under comfortably, low enough that kicking it is a relaxed motion rather than a lift.

Fix a 300 mm metal or hardwood disc to the top of the shaft, dead square to it. The head must run true — check by holding a pencil against the rim while it spins; the line should be continuous.

Spin it and let it stop on its own several times. If it always settles with the same point at the bottom, that side is heavy — bolt small weights to the light side until it stops in random positions.

Fit a seat at the same height as the wheel head or slightly above, on the side you kick from. Fit a shallow pan around the head to catch slip and trimmings.

Kick up to speed and centre a 1 kg ball of clay. A correctly weighted wheel holds throwing speed for a minute or more between kicks. If it dies under hand pressure, the flywheel is too light — add mass.

Both hands free. The earliest turntables — slow wheels — were turned by hand or by an assistant, which meant the potter never had two hands on the clay at once. A flywheel stores enough rotational energy to keep the head turning without continuous input, and that is what unlocked thin walls, true symmetry and real production speed. The fast wheel operating on the flywheel principle appears in the mid-to-late 3rd millennium BC.

The physics of why weight wins. Rotational kinetic energy scales with mass and with the square of the radius. That means mass out at the rim is worth far more than mass near the centre, and it is why flywheels are discs rather than solid cones. It also explains the failure mode: an under-weight flywheel simply does not store enough energy to resist the drag of hands on clay, and no amount of harder kicking fixes it. Insufficient flywheel weight makes it difficult to achieve the necessary speed and pressure.

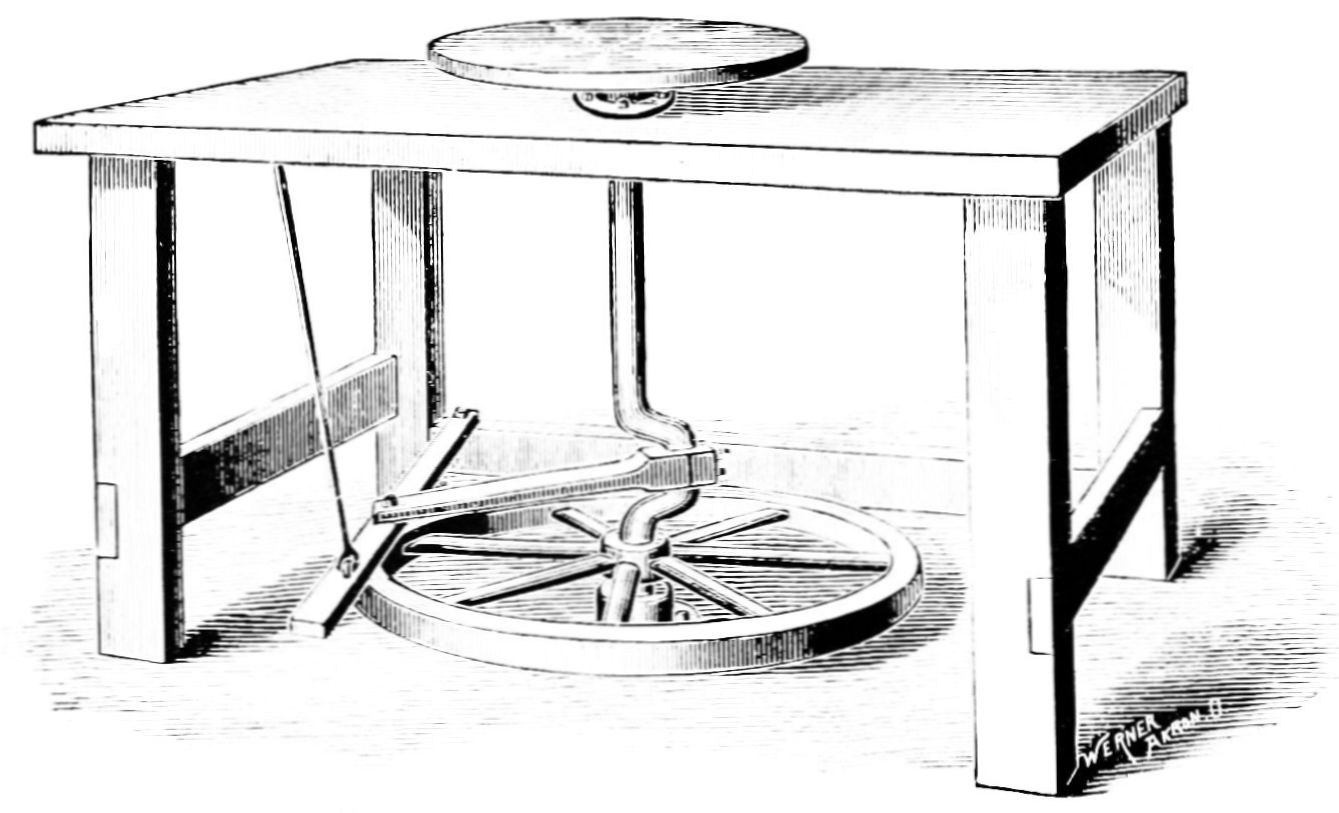

The Iron Age layout is still the layout. A turning platform about a metre above the floor, a long axle, and a heavy flywheel at ground level kicked by the foot — that description of the Iron Age potter's wheel is a description of the wheel in this blueprint. The proportions were solved early and have barely moved, because they are set by the human body and by rotational physics, neither of which has changed.

Concrete, stone, or steel. Historically flywheels were heavy stone or a weighted wooden disc; today they are commonly cast concrete or metal. Modern builders often reach for a barbell weight of around 20 kg as a convenient ready-made mass. All of these are solving the same problem — get enough kilograms out at a large enough radius, distributed evenly.

Why electric wheels did not fully replace it. An electric wheel holds a set speed regardless of what your hands do. A kick wheel slows as you press and speeds as you release, so the machine gives continuous feedback about how much force you are applying. Many potters find that responsiveness worth the kicking, which is why kick wheels are still built and still sold rather than being purely historical objects.
