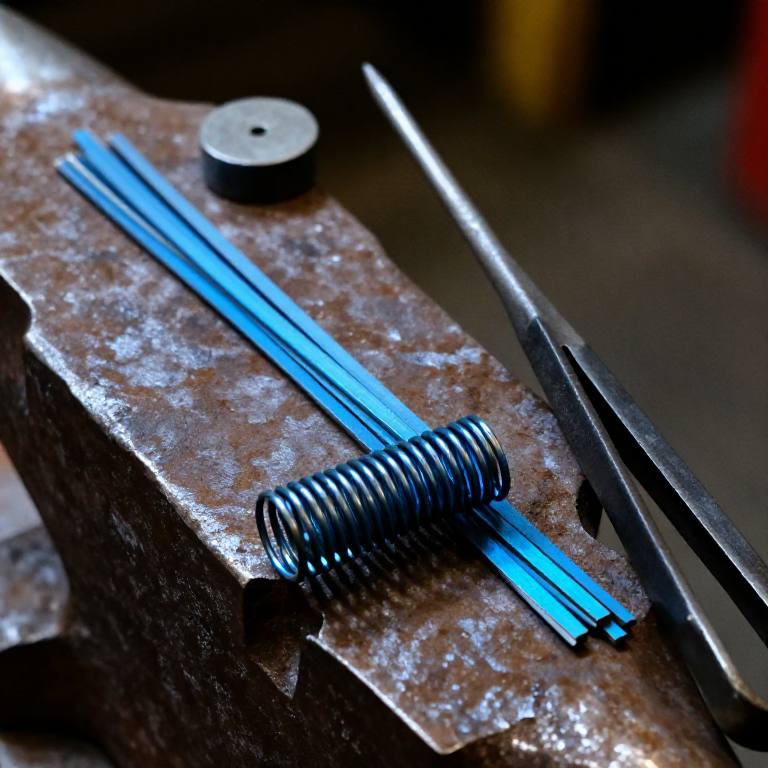

Spring Steel Strip and Wire, Hardened and Tempered

A spring must bend and come back. Mild steel bends and stays bent; high-carbon steel, hardened and then tempered to a blue colour, springs back. The strip or wire is shaped soft, heated until a magnet no longer sticks to it, quenched in warm oil to harden it, then tempered: cleaned bright and heated gently until the colour runs to blue. It starts from high-carbon crucible steel. Wire is drawn while the steel is still annealed.
Advanced
A day

Instructions

1

Forge strip

Forge crucible steel at a yellow heat into strip, smoothing it with the flatter; never work it below red. Cut it to length while hot.

Materials for this step:

Crucible SteelCrucible Steel1 kg
Charcoal - LumpCharcoal - Lump10 kg

Tools needed:

Blacksmith ForgeBlacksmith Forge
AnvilAnvil
Blacksmith HammerBlacksmith Hammer
FlatterFlatter
Blacksmith TongsBlacksmith Tongs
Leather ApronLeather Apron
Welding GlovesWelding Gloves
Safety GlassesSafety Glasses
2

Anneal

Heat to a dull red and bury it in dry wood ash to cool slowly overnight.

Materials for this step:

Hardwood AshHardwood Ash2 kg

Tools needed:

Metal BucketMetal Bucket
3

Draw wire

For wire, forge a rod, anneal it, and draw it through the drawplate with wax, annealing after every hole. Coil or bend the springs now, while it is soft.

Materials for this step:

BeeswaxBeeswax10 g

Tools needed:

Steel DrawplateSteel Drawplate
Draw TongsDraw Tongs
Bench ViseBench Vise
4

Harden

Heat the part evenly until a magnet no longer sticks, then plunge it into a lidded bucket of warm rapeseed oil and stir it. Keep the lid at hand for flare-ups.

Materials for this step:

Rapeseed OilRapeseed Oil5 liters

Tools needed:

Blacksmith ForgeBlacksmith Forge
MagnetMagnet
Metal Bucket with LidMetal Bucket with Lid
Blacksmith TongsBlacksmith Tongs
Welding GlovesWelding Gloves
5

Clean bright

Sand a stripe bright on the hardened steel so you can see the temper colours.

Tools needed:

Sandpaper SheetSandpaper Sheet
6

Temper to blue

Heat it gently and evenly with the torch on fire bricks, or on a hot plate of steel, and watch the colours run straw, bronze, purple, blue. Stop at an even blue and let it cool.

Tools needed:

Propane TorchPropane Torch
Fire BrickFire Brick
Blacksmith TongsBlacksmith Tongs
7

Test

Clamp one end in the vise and bend the free end a little: it must spring back straight.

Tools needed:

Bench ViseBench Vise
Digital Caliper 6-InchDigital Caliper 6-Inch
8

Troubleshooting

Spring tempering troubleshooting.
