Breakout Board for L298N Full-Bridge Motor Driver

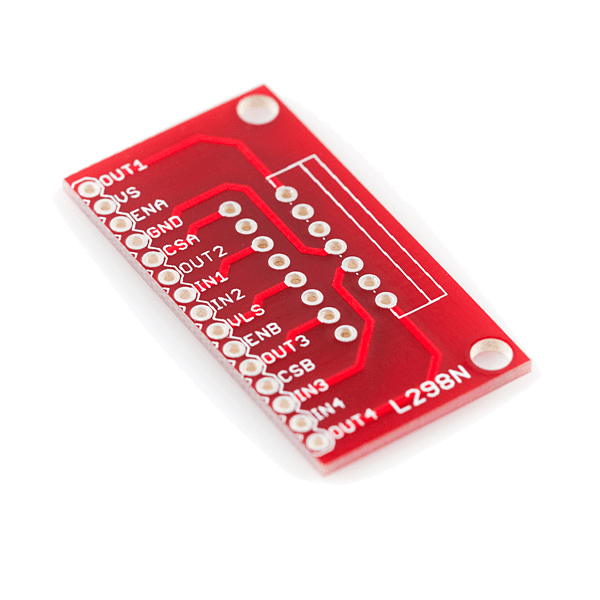

This is a breakout board for the L298N full-bridge dual motor driver; which comes in a staggered, Multiwatt package.
All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.
Documents:
- Eagle Files
- L298N Datasheet
Sold by
Maker Commission: 10%
Blueprint creators earn this percentage when customers purchase through their Blueprints
$4
