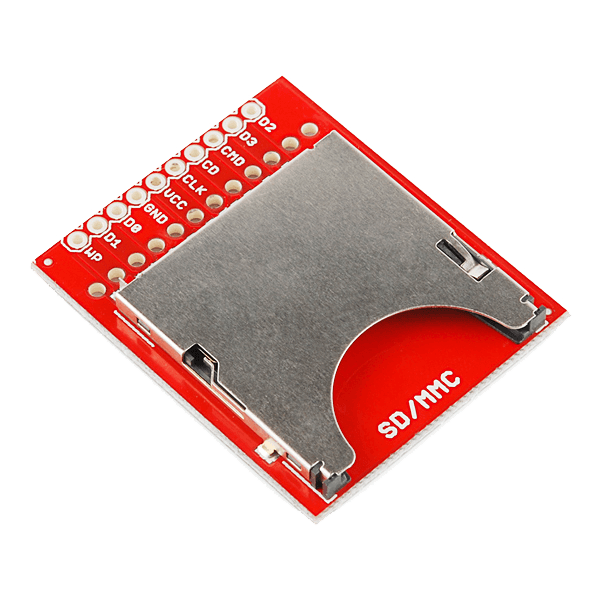

Breakout Board for SD-MMC Cards

With SD and MMC memory prices dropping, the time is right for mass storage and datalogging. This breakout board will allow you to breakout the SD/MMC socket to a standard .1" 10-pin header. Perfect for breadboarding and the likes. Board comes fully assembled and tested as shown.

Dimensions: 1.3x1.5"

Documents:

  • Schematic
  • Eagle Files
  • Datasheet (Socket)
  • Simplified SD Specification
  • Maxim App Note using the MAXQ2000
  • App note from Kronos Robotics
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$10
Breakout Board for SD-MMC Cards—
$10
