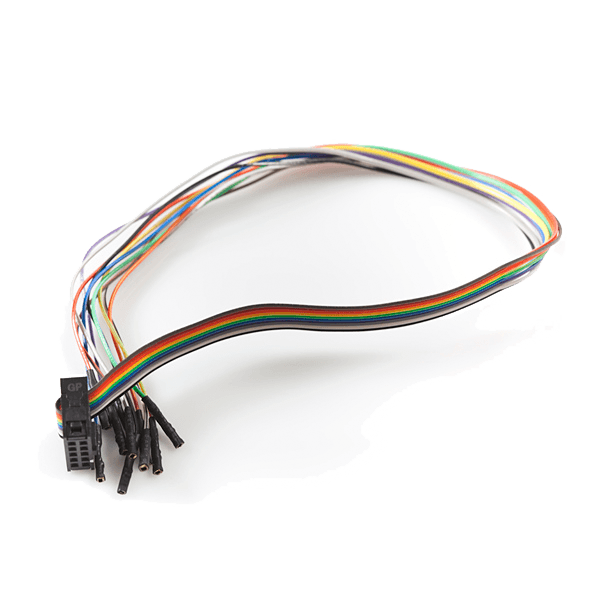

Product image 1

Bus Pirate Cable

This is an interface cable for the Bus Pirate, designed to connect to its 2x5 I/O header.
The cable's connector is composed of two rows of five 0.1" spaced pins; it's also polarized, as is the mating connector on-board the Bus Pirate, so you can only connect the cable in one direction.
The leads of the cable are terminated with female ends to mate with test hooks.

The pin-out of the connector is documented here.

Color code seems to be:
black - gnd
white - 3.3V
grey - 5V
purple - ADC
blue - VExtern
green - aux1
yellow - clk
orange - MOSI
red - CS
brown - MISO

Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$5
Bus Pirate Cable
$5
