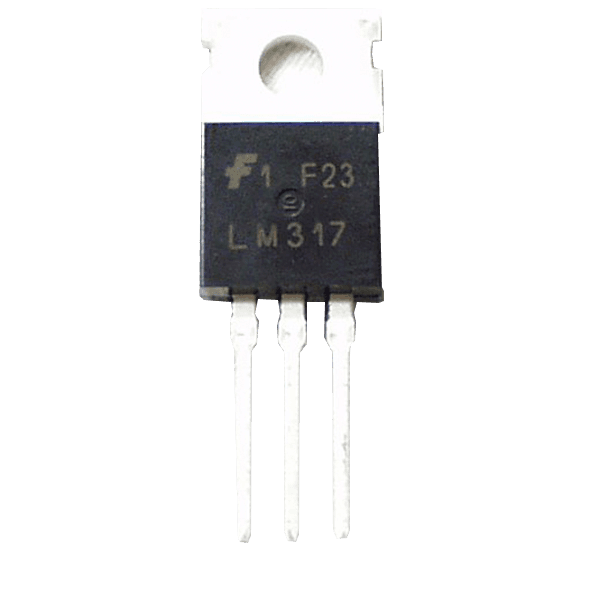

Product image 1

Voltage Regulator - Adjustable

Basic voltage regulators in the TO-220 package.
Adjustable regulator can be set from 1.25V up to 25V output with two external resistors.

Check out the LM317 calculator for more information. Also, take a look at the Unregulated Power Supply Tutorial!

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
Voltage Regulator - Adjustable—
$3
