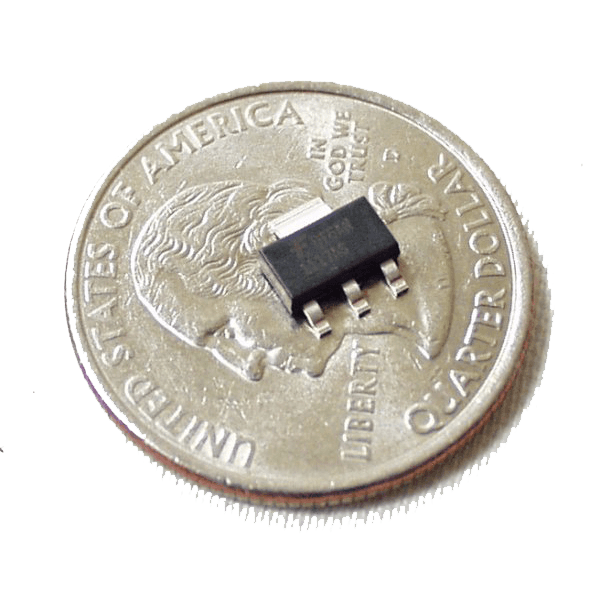

Voltage Regulator - Adjustable LM1117 SMD

This is a 1A Adjustable SOT-223 voltage regulator capable of outputting 1.2V to 18V.
The LM1117 uses the same pin-out and setup as the popular LM317 adjustable regulator, contained in a handy surface mount package.
Requires two external resistors to function.

Documents:

  • FAN1117A.pdf
  • SFE Eagle Library has this part!
  • Check out Sparkfun's Unregulated Power Supply Tutorial
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
12 in stock
