7-Segment Display - Red

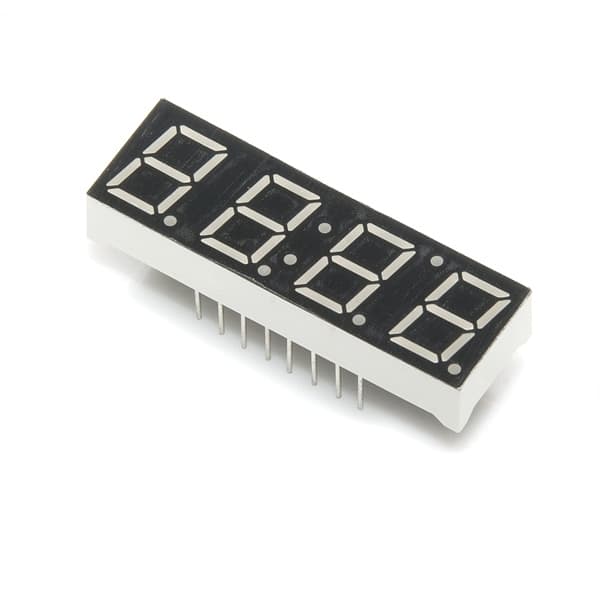

This is a basic, 4-digit 7-segment display. It has a common anode.
The display features one decimal point per digit, and individually controllable apostrophe and colon points.
The hardware interface is sixteen (two rows of eight) through-hole pins
Dimensions:
- Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
- Digit Height: 10mm (0.39")
| Blue | Green | Red | White | Yellow |
|---|---|---|---|---|
| The LEDs have a forward voltage of 3.4VDC and a max forward current of 20mA. Documents:
| The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. Documents:
| The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. Documents:
| The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA. Documents:
| The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. Documents:
|
Sold by
Maker Commission: 10%
Blueprint creators earn this percentage when customers purchase through their Blueprints
$3
7-Segment Display - Red—
$3
