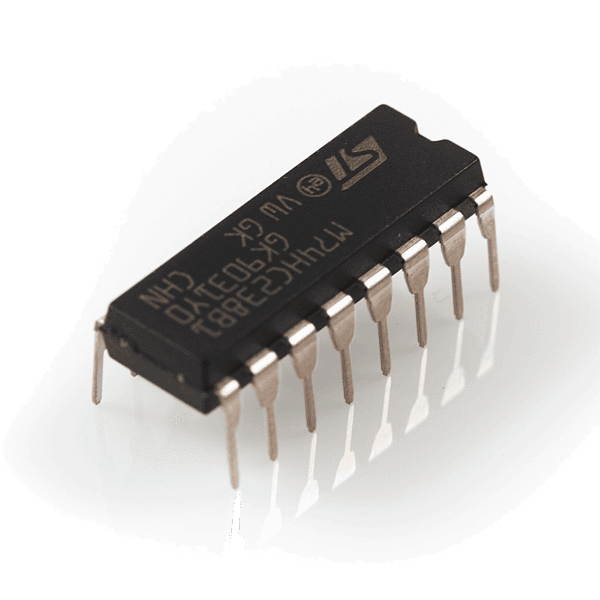

74HC238 - 3 to 8 Line Decoder

The M74HC238 is a high speed CMOS 3 to 8 line decoder. There are three binary select inputs (A, B, and C) which determine which one of the eight outputs (Y0-Y7) will go high.
This chip has three enable inputs (G1, ~G2A, and ~G2B); when any enable pins are brought low (or high in G1's case), all output pins are pulled low.
This is a great tool if you need to increase the number of outputs on your micrcontroller.

This device comes in a 16-pin DIP package.

Features:

  • High speed
  • Wide operating voltage range (2 to 6VDC)
  • Low power dissipation (~4µA)
  • High noise immunity
  • Symmetrical output impedance
  • Balanced propagation delays
  • Inputs equipped with protection circuits against static discharge and transient excess voltage

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$2
7 in stock
74HC238 - 3 to 8 Line Decoder
$2
