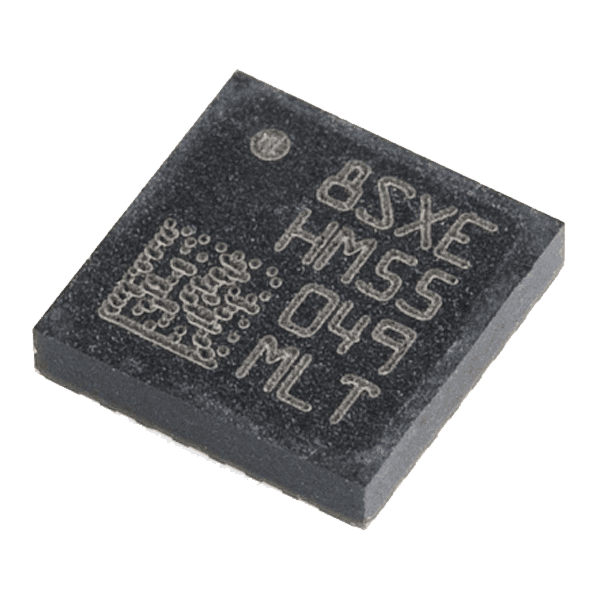

LSM303DLH - Tilt Compensated Compass

The LSM303DLH is a triple axis MEMS accelerometer combined with a triple axis magnetic sensor.
The sensor has an easy to use I2C interface.
Supply voltage should be between 2.5 and 3.3 VDC.

Features:

  • +- 2/4/8 g dynamically selectable full-scale
  • +-1.3 to +- 8.1 gauss magnetic field full-scale
  • 16-bit data out
  • I2C interface
  • Embedded self-test

Documents:

  • Datasheet
  • Application Notes
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$5
Low stock — 1 left
LSM303DLH - Tilt Compensated Compass—
$5
