Product image 1

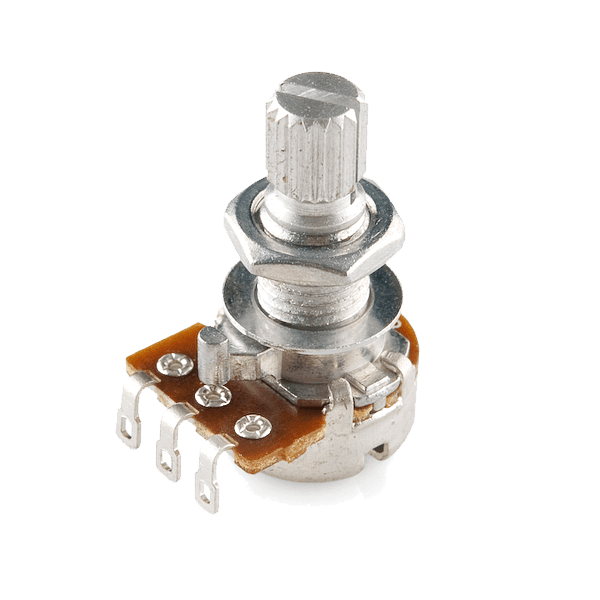

Rotary Potentiometer - 10k Ohm, Logarithmic

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot, and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC, depending on the rotation of the pot.

Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

This pot has a 6.35mm (1/4") mounting diameter and has a 10K logarithmic taper.

Documents:

  • Datasheet
  • How potentiometers work
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$2
Rotary Potentiometer - 10k Ohm, Logarithmic—
$2
