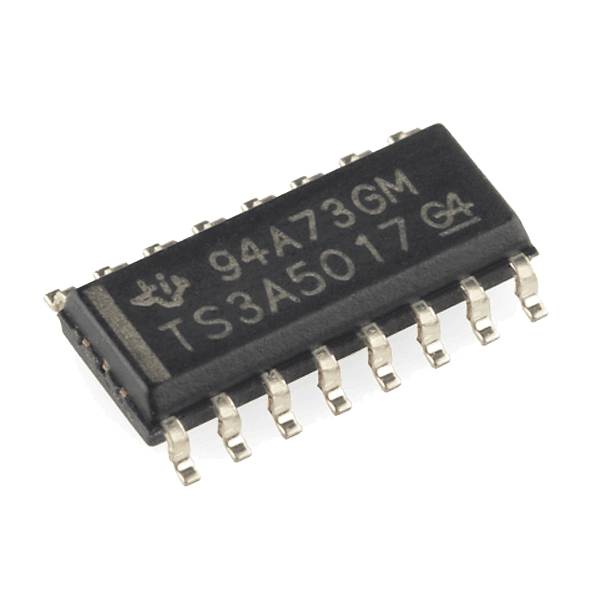

Product image 1

Dual Analog Mux/Demux - TS3A5017DR

The TS3A5017 IC from Texas Instruments is a dual single-pole four-throw (4:1) analog switch. It is capable of switching both digital and analog signals up to 3.6V in either direction.
The ability to handle analog signals makes this a great tool for audio and video signal routing as well as communication circuits.
It's also a handy way to read multiple analog sensors from a single ADC pin on your microcontroller.

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
Low stock — 1 left
Dual Analog Mux/Demux - TS3A5017DR
$3
