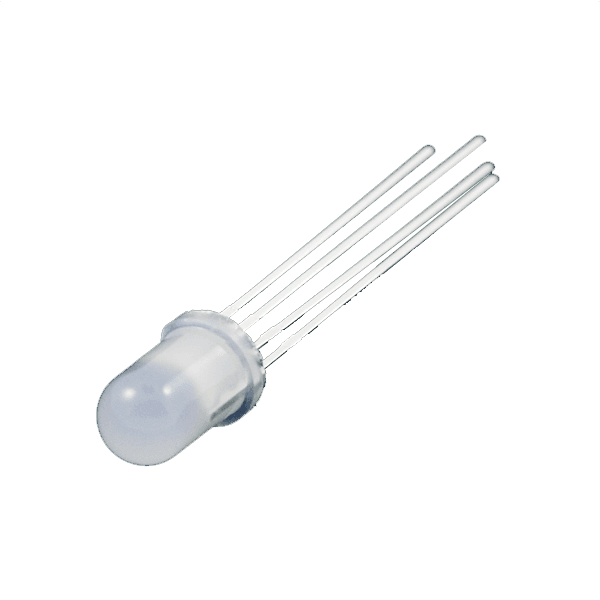

Product image 1

LED - RGB Diffused Common Anode

Candles? Pfft... Impress your wife with these cool RGB LEDs instead, set the mood for the evening, you might get some ...uhm, "cookies" later.
These 5mm units have four pins: one for each color and a common anode.
Use this one LED for three status indicators or pulse width modulate all three and get mixed colors!

These LEDs are diffused; so they'll appear dimmer, but have a wider viewing angle.

Note: The datasheet below is for the common cathode version of these LEDs, all of the values are the same except that instead of sharing a cathode, these share an anode.
An updated datasheet will be added as soon as possible.


Features:

  • Standard size - T1 3/4 5mm
  • 2800/6500/1200 mcd brightness
  • 2.0V/3.2V/3.2V forward drop
  • Max current 20mA
  • Common Anode

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
LED - RGB Diffused Common Anode
$3
