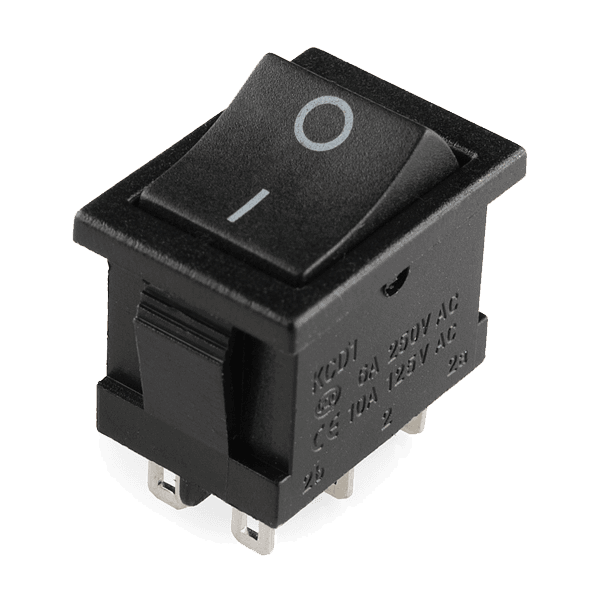

Rocker Switch - DPDT

This switch is about the same size as our right angle rocker switch except that it's double-pole double-throw.
It's rated for 10 Amps at 125VAC and can be snap-in panel mounted.

Documents:

Dimensional Drawings
