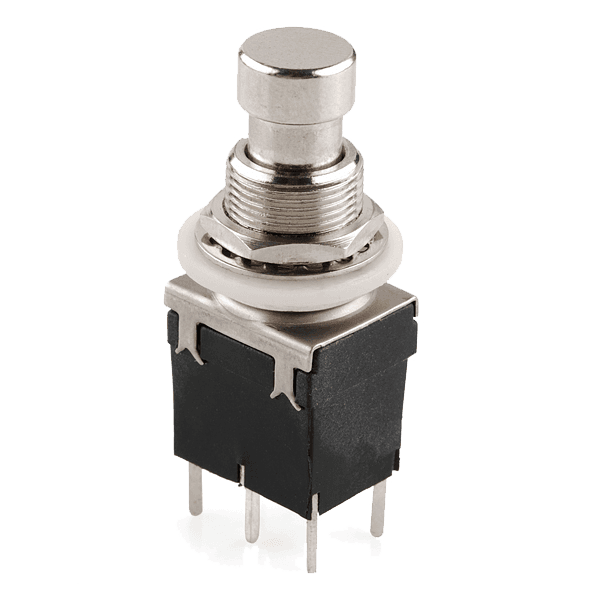

Product image 1

Stomp Switch - DPDT

These are the sturdy little stomp switches that you find on guitar effects pedals.
They're DPDT on/on type switches which mount into a 1/2" diameter hole.
You'll need at least 7/8" of depth beneath your mounting surface to accommodate the switch body.
Use these as replacements in some types of effects pedals or, better yet, build your own!

Features:

  • Max Current: 4A @ 125VAC
  • Max Voltage: 2A @ 250VAC

Documents:

  • Dimensional Drawing
  • Product Video
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
7 in stock
Stomp Switch - DPDT
$3
