The ProtoSnap series is a new way to prototype your project without a breadboard.
Everything is wired together on a single board, which makes it easy to explore the possibilities of the components before snapping them apart and building them into your project.

The ProtoSnap LilyPad Simple Development board is a great way to get started in programmable e-textiles.
By combining a LilyPad Simple board with 4 LED boards and a buzzer, the ProtoSnap LilyPad Simple Development board gives you everything you need to learn the basics. The kit also includes our LilyPad FTDI basic for programming the Simple board, conductive thread and needles and a Li-Po battery pack to power everything. The board also includes two pads to connect sensors using alligator clips (or use as a nifty touch-sensor)

Note: This kit does not include a USB cable. You will need a USB mini-B for the FTDI basic. Check below for an appropriate cable if you don't already have one.

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.

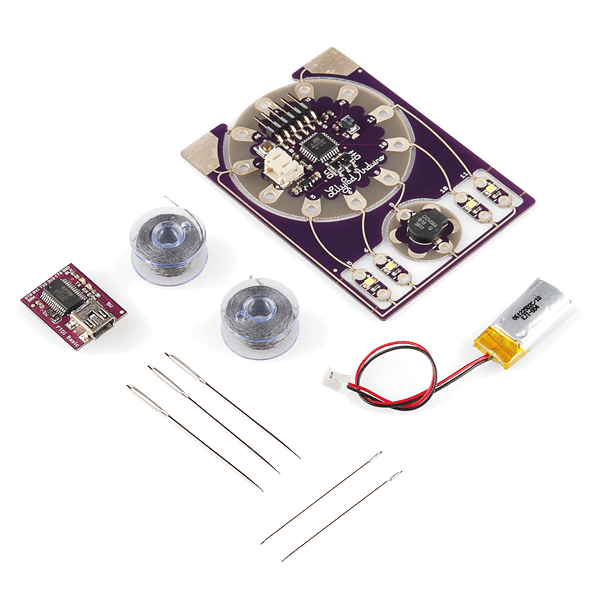

Included on the Board:

• 1 x LilyPad Simple Board
• 4 x LilyPad White LED
• 1 x LilyPad Buzzer

Kit Also Includes:

• 1 x LilyPad FTDI Basic
• 2 x Conductive Thread Bobbin
• 1 x Needle Set
• 1 x 110mAh LiPo Battery

Documents:

• Schematic
• Eagle Files
• Getting Started Guide
• Example Arduino Sketch
• Product Video
