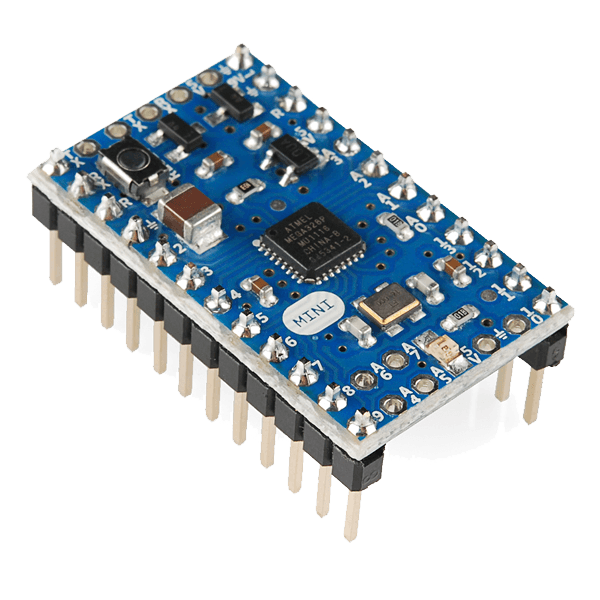

Product image 1

Arduino Mini 05

This is the new, smaller, Arduino Mini 05 with ATmega328.
The latest version of this board is built around a smaller ATmega328 package, allowing all of the parts to be populated on the top side of the board.
Of course, it still requires an external serial connection for programming.

The Arduino Mini 05 is a great development module for building compact devices that need to interact with the world around them.

Note: A portion of this sale is given back to Arduino LLC to help fund continued development of new tools and new IDE features.

Documents:

  • Schematic
  • Eagle Files
  • Arduino-mini home page
  • Programming Reference
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$30
Arduino Mini 05
$30
