SparkFun Pi Wedge B+

This is the SparkFun Pi Wedge B+, a small board that connects to the 40-pin GPIO connector on the Raspberry Pi B+, and breaks the pins out to breadboard-friendly arrangement and spacing, and even adds a couple of decoupling capacitors on the power supply lines.
The ”Wedge“ also makes the initial bringup process easier - you can plug an FTDI Basic module into the built-in serial port.
Each Pi Wedge B+ comes as an easy to assemble kit that can can be inserted into the RPi’s GPIO port that allows you to prototype as soon as you are done soldering.

The Pi Wedge B+ is compatible with Raspberry Pi B+ model and it adapts the GPIO header on the B+ to a standard solderless breadboard.
If you love the Raspberry Pi and have been looking to start prototyping with it look no further than the Pi Wedge B+!

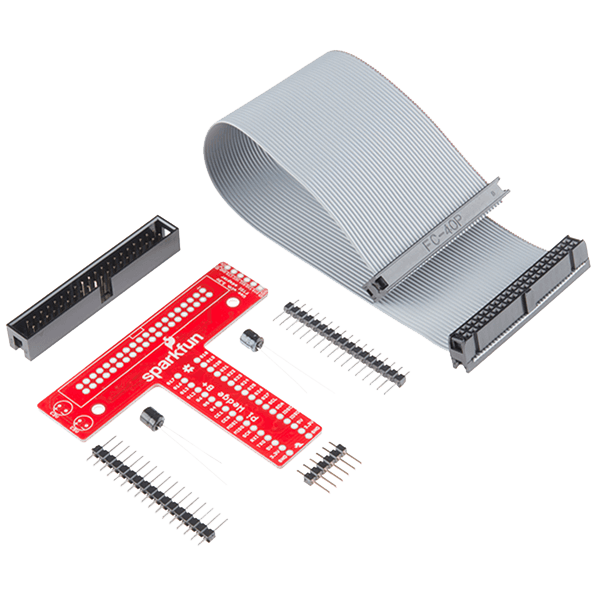

Kit Includes:

  • 1x Pi Wedge B+ PCB
  • 1x GPIO Ribbon Cable (40-pin, 6")
  • 1x GPIO Shrouded Header (2x20)
  • 1x 6-pin Male Header
  • 2x 17-pin Male Header
  • 2x Capacitor (10uF/25V)

Documents:

  • Schematic
  • Eagle Files
  • Hookup Guide
  • GitHub (Example Code & Design Files)
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$8
19 in stock
SparkFun Pi Wedge B+
$8
