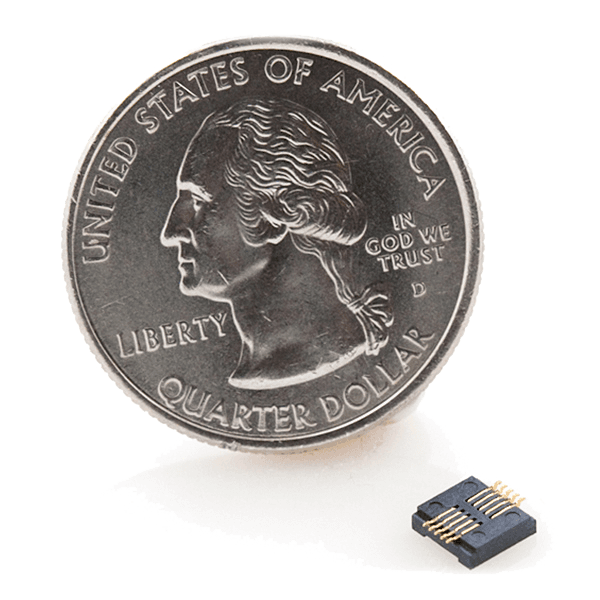

Color LCD - SMD Connector

This is the itty-bitty connector for the Nokia color LCD. 10-Pins. Surface mount.
Hard to find. 0.5mm pitch so be careful.

Can it be soldered by hand? Yes! We can solder it well with a good PCB layout and easily with a stencil and hotplate.


This connector is a copy of the Hirose DF23 Series.
You can use the Hirose spec sheet to lay out your PCB footprint.

Documents:

  • Hirose DF23 Datasheet
  • Eagle Footprint
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
Low stock — 2 left
Color LCD - SMD Connector—
$3
