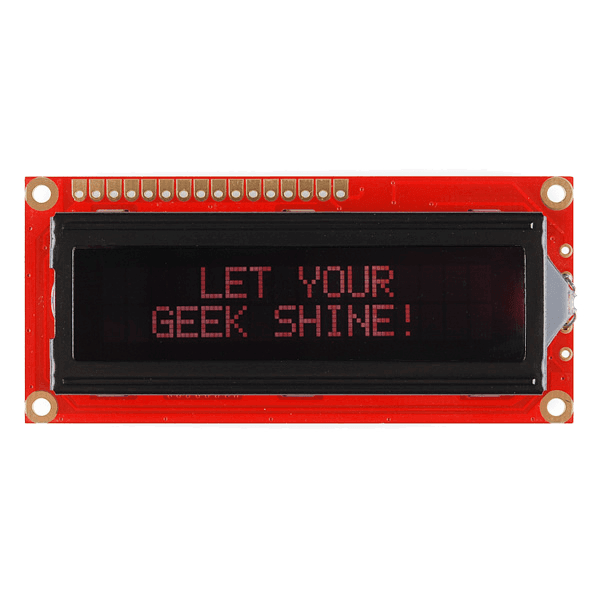

Basic 16x2 Character LCD - 3.3V
This is a 16 character by 2 line display that runs at 3.3V.
Utilizes the common ST7066/HD44780 parallel interface (datasheet).
Interface code is widely available for many different controllers and systems.
You will need ~11 general I/O pins to interface to this LCD screen.
Features:
- High quality STN 16x2 character LCD
- 3.3V power supply
- 5x8 dot characters
- ST7066 controller
- 1/16 duty cycle
Dimensions: 0.34 x 1.4 x 3.2" (8.6 x 36 x 80mm)
| White on Black | Red on Black | Amber on Black | Black on Green |
|---|---|---|---|
Features:
| Features:
| Features:
| Features:
|
Sold by
Maker Commission: 10%
Blueprint creators earn this percentage when customers purchase through their Blueprints
$14
Basic 16x2 Character LCD - 3.3V—
$14
